UNV IPC6424SR-X25-VF 4MP 25X LightHunter PTZ Camera
In Stock Sale

Uniview

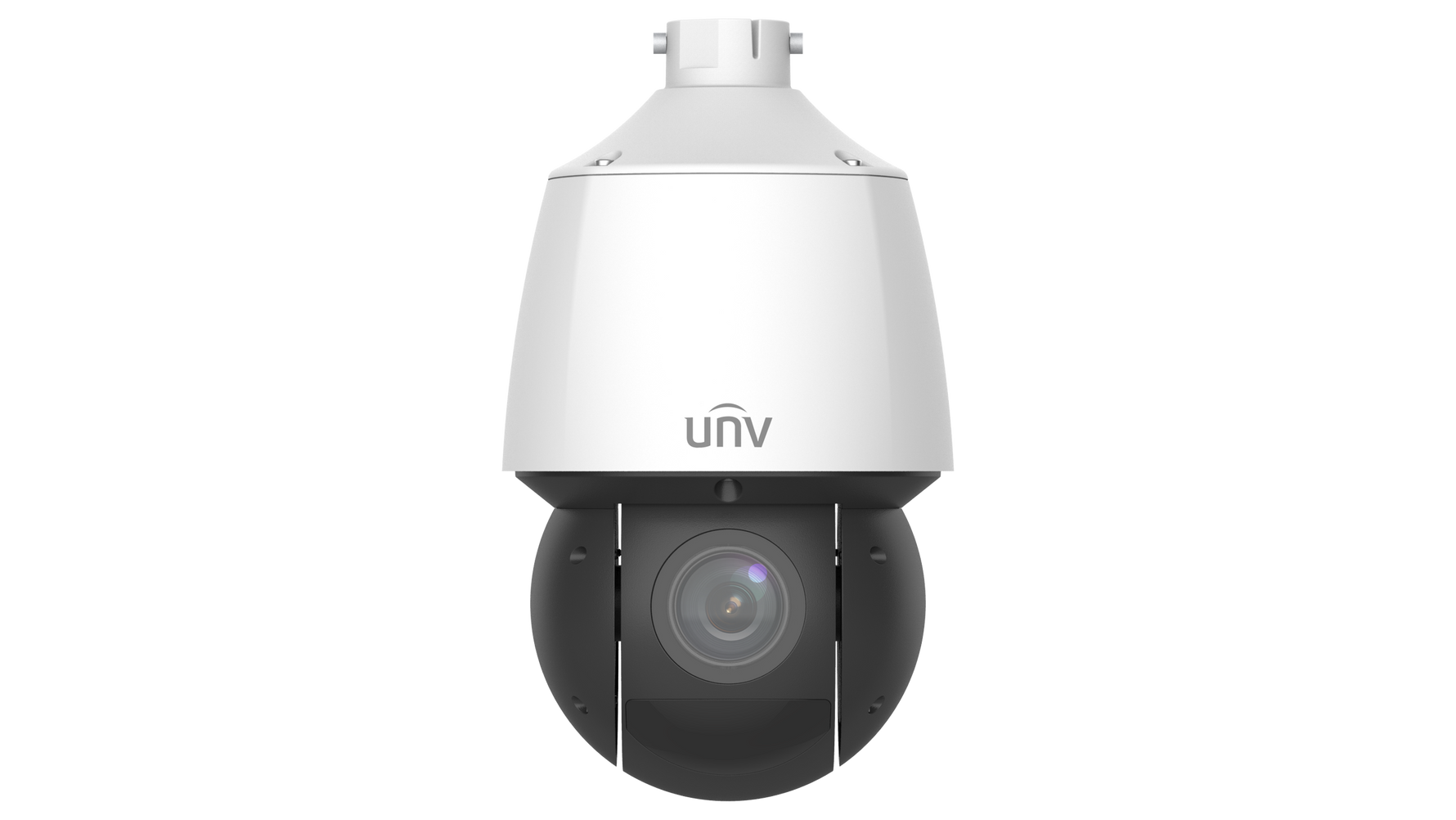

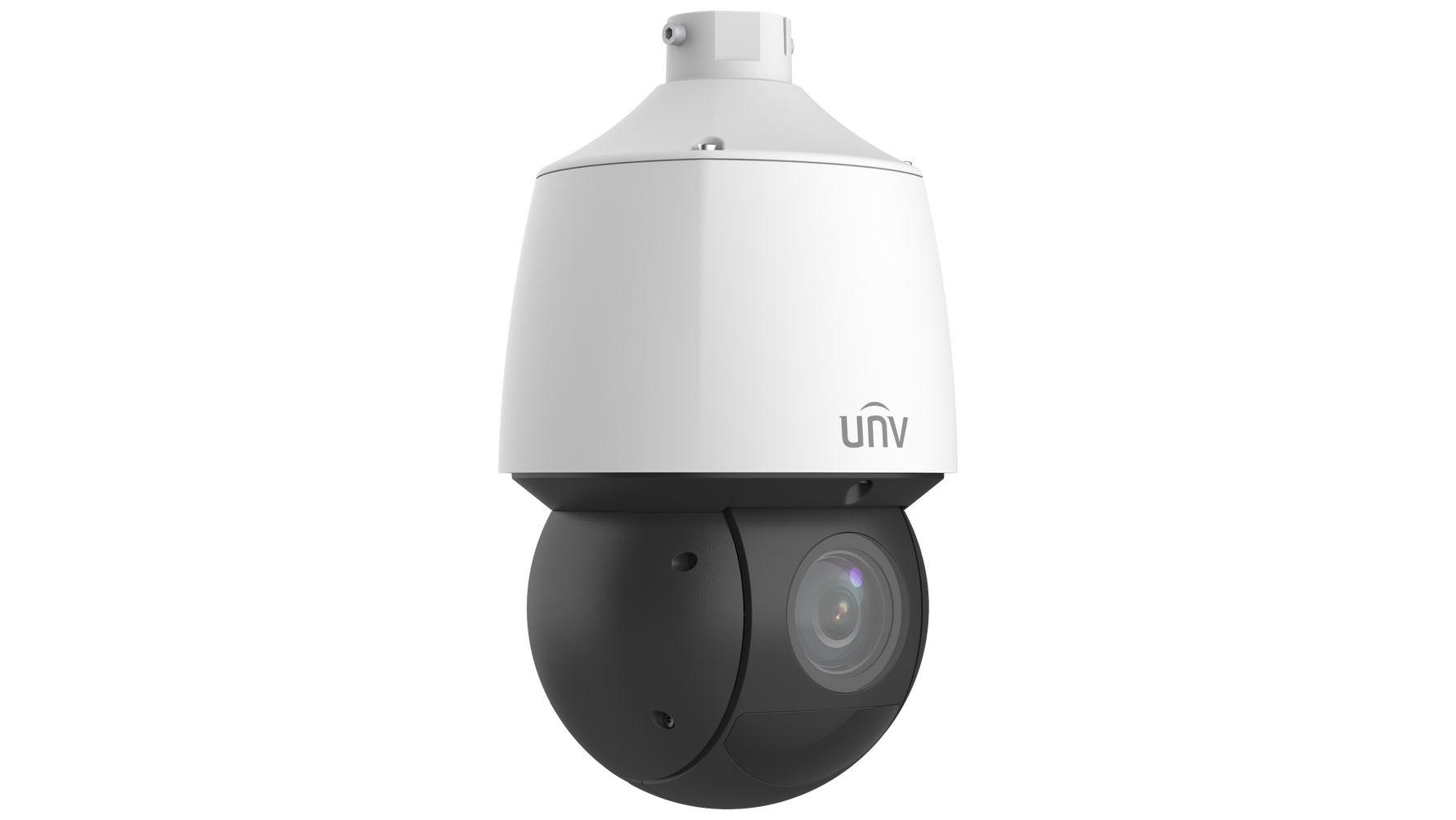

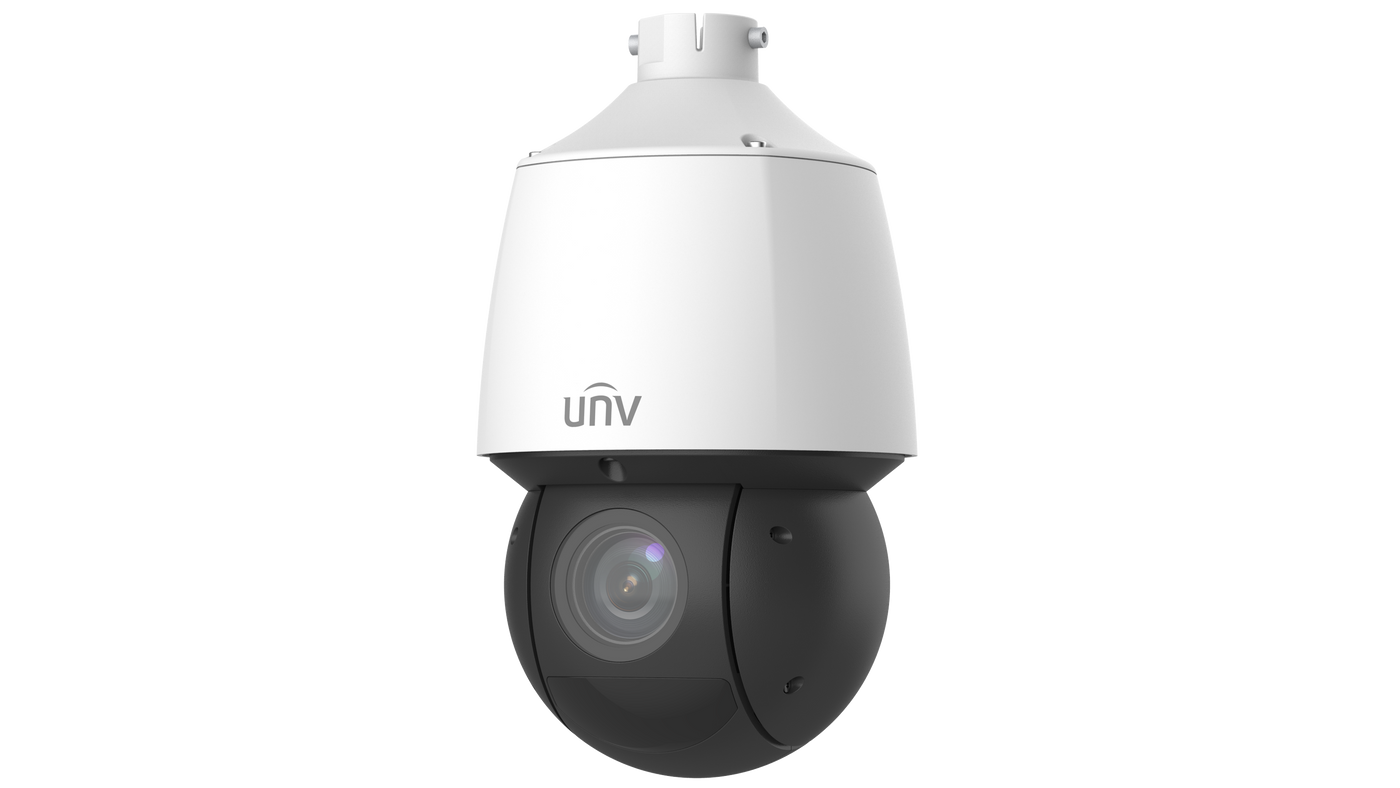

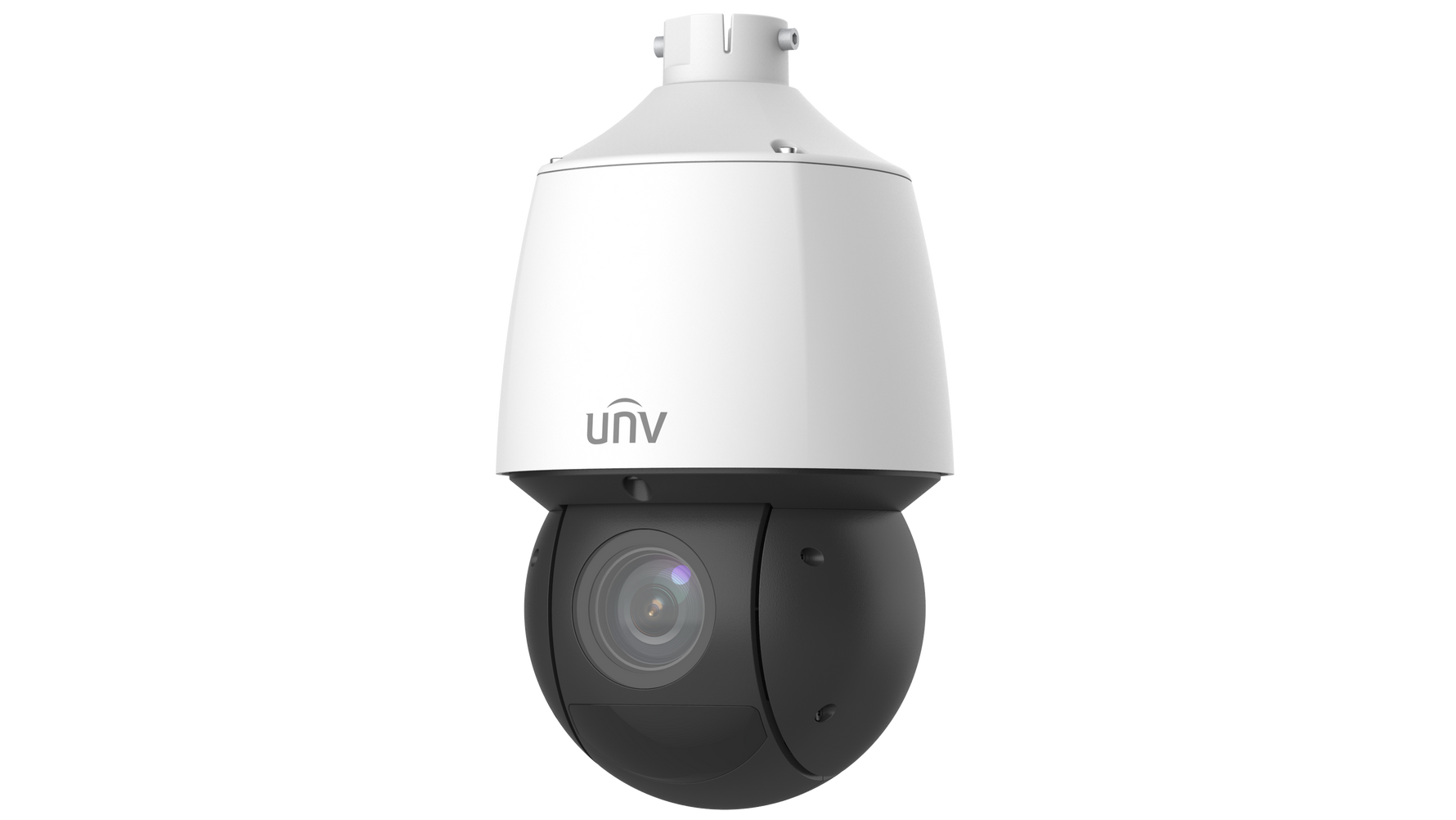

UNV IPC6424SR-X25-VF 4MP 25X LightHunter PTZ Camera

SKU: IPC6424SR-X25-VF

$1,349.00 $1,619.00
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast ShippingU.S. warehouse fulfillment
Easy RMA SupportStreamlined assistance when needed
Need compatibility help? Call (856) 317-0600 for professional assistance.
Overview Resources & Support Compatibility Solution Builder Specifications
Product overview

Reliable Security Performance

Designed to deliver dependable video surveillance with features and performance that vary by model, firmware, environment, and system configuration.

Professional Quality

Designed for demanding surveillance and networking environments.

System Compatibility

Use the compatibility tools below to select supported components.

Technical Support

Get assistance with configuration, installation and product selection.

Secure Purchasing

U.S.-based fulfillment and protected checkout.

Product assistance

Need Assistance?

Documentation, system compatibility tools, shipping information, and direct support from NSI Security.

Shipping InformationU.S. fulfillment

Processing times, delivery estimates, signature requirements, and shipping limitations vary by order and destination.

View Shipping Policy →
DocumentationBy request

Review current datasheets, manuals, firmware notes, and manufacturer documentation before ordering or installation.

Request Documentation →
Technical SupportNSI assistance

Get product selection, compatibility, configuration, and basic troubleshooting assistance from NSI Security.

Contact Support →
Verified System ComponentsProduct-specific compatibility

Review product-specific cameras, recorders, cable, networking, storage, power, and accessories assigned to work with this item.

View Components →
RMA RequestAfter-purchase assistance

Request return authorization, repair evaluation, or replacement assistance for an eligible order.

Start RMA Request →
Contact Our TeamSales and product questions

Contact NSI Security for product selection, availability, compatibility, and order assistance.

Contact NSI Security →
System compatibility

Verified System Components

Product-specific components selected for a more confident system configuration. Only populated categories are displayed.

One-click system configuration

Build Your Complete Solution

Select the components you need and add the complete configuration to your cart.

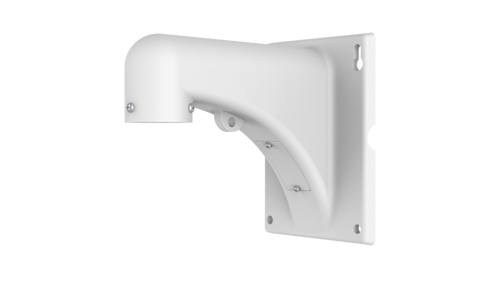

Mounting & Accessories

Compatible Recorders

PoE Switches

Product information

Product Details & Technical Specifications

Prime Series LightHunter PTZ Camera


UNV IPC6424SR-X25-VF

The UNV IPC6424SR-X25-VF is a professional 4MP LightHunter IR network PTZ camera featuring 25× optical zoom, intelligent auto tracking, advanced perimeter analytics, and Smart IR illumination reaching up to 100 meters.

Designed for parking lots, commercial properties, warehouses, schools, apartment communities, industrial facilities, and other large outdoor environments, this camera combines detailed long-range surveillance with responsive pan, tilt, and zoom control. It also supports PoE+, onboard MicroSD storage, audio and alarm integration, and IP67/IK10 protection.



4MP 2688 × 1520 Resolution
NDAA Compliant Model
25× Optical Zoom
100m Smart IR Distance
IP67 IK10 Protection


Long-Range PTZ Surveillance

See More Detail Across Large Properties

The motorized 4.8–120mm lens provides 25× optical zoom, allowing an operator to move from a broad property overview to detailed views of distant people, vehicles, entrances, and activity.

LightHunter technology improves visibility in low-light environments, while Smart IR provides monochrome nighttime surveillance at distances up to approximately 328 feet.

360° Continuous Pan
120dB True WDR
512GB MicroSD Support
PoE+ IEEE 802.3at

Professional Camera Technology

Key Features


4MP

High-Resolution Imaging

Records up to 2688 × 1520 resolution at 30 frames per second for smooth and detailed surveillance video.

25×

Powerful Optical Zoom

The 4.8–120mm motorized lens provides 25× optical zoom and 16× digital zoom for viewing distant activity.

LH

LightHunter Technology

Improves image brightness, color detail, and visibility in challenging low-light environments.

IR

100-Meter Smart IR

Integrated infrared illumination supports nighttime monitoring up to approximately 100 meters or 328 feet.

AI

Smart Intrusion Prevention

Supports cross-line, intrusion, enter-area, and leave-area detection with human and vehicle classification.

AT

Intelligent Auto Tracking

Automatically tracks supported people, motor vehicles, and non-motor vehicles after configured events are triggered.

FD

Face Detection

Supports face detection with automatic selection of the best available face snapshot.

PC

People Counting

Supports people-flow counting and crowd-density monitoring for compatible statistical applications.

SD

Edge Recording

Supports a compatible MicroSD card up to 512GB for local recording, event storage, and ANR applications.

I/O

Audio and Alarm Integration

Includes one audio input, one audio output, two alarm inputs, and one alarm output.

P+

PoE+ Power

Supports IEEE 802.3at PoE+ or 12V DC power for flexible professional installation.

67

Outdoor Protection

IP67 weather protection and IK10 impact resistance support demanding indoor and outdoor installations.


At a Glance

Feature Overview

```
  • 4MP 1/2.8-inch CMOS sensor
  • 2688 × 1520 at up to 30fps
  • 4.8–120mm motorized zoom lens
  • 25× optical zoom
  • 16× digital zoom
  • LightHunter low-light imaging
  • 120dB Wide Dynamic Range
  • Triple video streams
  • Smart IR up to 100 meters
  • 360° continuous pan rotation
  • -15° to 90° tilt with auto flip
  • Up to 1,024 PTZ presets
  • Preset and route patrols
  • Human and vehicle auto tracking
  • Smart intrusion prevention
  • False-alarm filtering
  • Face detection
  • People-flow counting
  • Crowd-density monitoring
  • Object removed detection
  • Object left-behind detection
  • Audio detection
  • Camera tampering detection
  • Motion detection
  • Ultra 265, H.265, H.264, and MJPEG
  • MicroSD support up to 512GB
  • ONVIF Profiles S, G, T, and M
  • Audio input and output
  • Two alarm inputs and one output
  • IEEE 802.3at PoE+
  • IP67 and IK10 protection
  • NDAA-compliant model

Recommended Environments

Best Applications


Parking Lots
Commercial Properties
Warehouses
Apartment Communities
Car Wash Facilities
Schools and Campuses
Industrial Facilities
Municipal Surveillance
Building Perimeters
Loading Areas

Product Highlights and Technical Overview

Technical Specifications


Product Information
Model IPC6424SR-X25-VF
Camera Type 4MP 25× LightHunter IR Network PTZ Camera
NDAA Compliance Yes — currently included on Uniview’s official NDAA-compliant product list
Camera and Imaging
Image Sensor 1/2.8-inch 4MP progressive-scan CMOS
Maximum Resolution 2688 × 1520
Maximum Frame Rate Up to 30fps at 2688 × 1520
Minimum Illumination Color: 0.003 lux at F1.5 with AGC enabled;
0 lux with infrared illumination
Day and Night IR-cut filter with automatic switching
Electronic Shutter Automatic or manual, 1 second to 1/100,000 second
Wide Dynamic Range 120dB WDR
Image Enhancement 2D/3D digital noise reduction, BLC, HLC, digital defog, Smart IR, white balance, ROI, and image flip
Lens and Viewing Angle
Focal Length 4.8–120mm motorized zoom lens
Optical Zoom 25×
Digital Zoom 16×
Aperture F1.5–F3.8
Horizontal Field of View 52.20°–2.74°
Vertical Field of View 30.81°–1.54°
Diagonal Field of View 64.20°–3.23°
Video Streams
Main Stream Up to 2688 × 1520 at 30fps
Sub Stream Up to 1920 × 1080 at 30fps
Third Stream Up to 720 × 576 at 30fps
Video Compression Ultra 265, H.265, H.264, and MJPEG
Video Bitrate 128Kbps–16Mbps
Streaming Capability Three configurable video streams
PTZ Performance
Pan Range 360° continuous rotation
Tilt Range -15° to 90° with automatic flip
Manual Pan Speed 0.1°–200° per second
Manual Tilt Speed 0.1°–120° per second
PTZ Presets Up to 1,024 presets
Preset Patrols 16 patrols with up to 64 presets per patrol
Auto Tracking Supported with human, motor-vehicle, and non-motor-vehicle target filtering
Intelligent Analytics
Smart Intrusion Prevention Cross-line, intrusion, enter-area, and leave-area detection
Target Classification People, motor vehicles, and non-motor vehicles
Face Detection Supported with automatic best-snapshot selection
People Counting People-flow counting and crowd-density monitoring
Additional Events Motion detection, video tampering, audio detection, object removed, and object left behind
Infrared Illumination
Infrared Distance Up to 100 meters / 328 feet
Infrared Wavelength 850nm
IR Control Automatic or manual
Audio, Alarm and Storage
Audio Input 1 input
Audio Output 1 output
Built-In Microphone No
Built-In Speaker No
Alarm Inputs 2
Alarm Output 1
Serial Interface 1 × RS485
Edge Storage MicroSD card up to 512GB
Network Storage ANR and NAS using NFS
Network and Integration
Network Interface 1 × RJ45 10/100Mbps Ethernet
ONVIF Profiles Profiles S, G, T, and M
Additional Integration RTSP, API, and SDK support
Supported Clients EZStation, UNV-Link, and UNV-Link Pro
Power and Environmental
Power Options 12V DC ±25% or IEEE 802.3at PoE+
Maximum Power Consumption 21W
Weather Protection IP67
Impact Protection IK10
Surge Protection 6kV
Operating Temperature -40°C to 70°C / -40°F to 158°F
Operating Humidity Up to 95% RH, non-condensing
Dimensions Ø162 × 293mm / Ø6.4 × 11.5 inches
Weight Approximately 3.05kg / 6.72 lb

Compatibility

Third-Party Recorder Integration

The IPC6424SR-X25-VF supports ONVIF Profiles S, G, T, and M, along with RTSP streaming. Third-party integration may require manual network, ONVIF, user-account, stream, codec, resolution, frame-rate, PTZ, audio, and alarm configuration.

Basic live video and recording may be available while advanced functions such as intelligent auto tracking, face detection, people counting, smart-event search, audio, alarm I/O, edge-storage playback, and PTZ patrol configuration may require a compatible Uniview recorder, VMS platform, or supported third-party integration.


Installation ```

Professional Installation Recommendations

  • Use a compatible IEEE 802.3at PoE+ switch or properly sized 12V DC power supply.
  • Confirm that the PoE switch has enough available power budget for the camera’s maximum 21W consumption.
  • Mount the camera on a stable structure capable of supporting the camera and selected mounting hardware.
  • Avoid nearby walls, roof edges, poles, branches, and reflective surfaces that may cause infrared reflection.
  • Configure PTZ presets, patrols, home position, smart-event regions, target filtering, and auto tracking after establishing the final viewing angle.
  • Use outdoor-rated Cat5e or Cat6 cable, weatherproof connections, proper grounding, surge protection, and drip loops.
```
3

Manufacturer Warranty

Three-Year UNV Camera Warranty

This Uniview IP camera includes a three-year manufacturer warranty when purchased through NSI Security, subject to manufacturer warranty terms, product eligibility, serial-number verification, and NSI Security’s applicable Terms and Conditions.


Important Product Information


Specifications are subject to change without notice. Features, MicroSD card support, audio functions, alarm functions, image performance, infrared distance, LightHunter performance, auto tracking, analytics, PoE behavior, compatibility, and overall system performance may vary depending on firmware version, recorder model, installation environment, lighting conditions, network setup, camera settings, mounting position, power source, and system configuration.

Third-party IP cameras may not be plug-and-play with every recorder or VMS platform. Compatibility may be affected by ONVIF profile support, firmware version, authentication method, video codec, resolution, frame rate, stream profile, PTZ-command support, audio format, alarm I/O, and analytics integration.

Infrared distance is a manufacturer-rated maximum measured under suitable conditions. Actual usable image distance may vary based on scene reflectivity, weather, mounting height, viewing angle, zoom position, environmental conditions, and camera settings.

This model is currently included on Uniview’s official NDAA-compliant product list. Compliance requirements and manufacturer product listings may change. Please verify current manufacturer documentation before ordering for government, public-sector, or compliance-sensitive projects.


Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
