Uniview
Model: IPC6434LR-X16-VG1
In stock
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

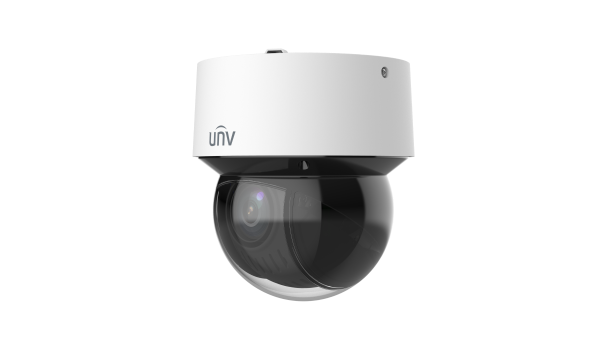

The UNV IPC6434LR-X16-VG1 provides 4MP imaging and 16× optical zoom in an outdoor PTZ dome. It allows the viewing direction and framing to be adjusted as activity moves around a site.
Use presets for entrances, vehicle routes or other recurring points of interest. A PTZ view moves between these positions, so it does not record every direction simultaneously.
PoE+ or the specified 12V DC supply powers the camera. Audio I/O and alarm terminals allow integration with compatible external devices.
| Model | IPC6434LR-X16-VG1 |
|---|---|
| Type | 4MP 16× LightHunter Network PTZ Dome Camera |
| Sensor | 1/2.9" CMOS sensor |
| Maximum Resolution | 4MP / 2688 × 1520 |
| Frame Rate | 2688 × 1520 @ 30fps in the main stream |
| Optical Zoom | 16× optical zoom |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Streams | Dual streams |
| Low-Light Technology | LightHunter |
| IR Distance | Smart IR up to 100m / 328ft |
| Power | DC12V ±10% or PoE+ IEEE 802.3at |
| Audio | 1 input / 1 output |
| Alarm | 2 inputs / 1 output |
| Weather Protection | IP66 ingress protection |
| Vandal Protection | IK10 vandal-resistant housing |
The recorder or software must support the required PTZ controls and event functions. Check the power budget and full mounting assembly before fitting.
Match the complete camera and accessory model numbers, including any V2 suffix. Accessories are sold separately. Wall, ceiling, pole and corner installations may require additional mounting hardware; the accessory list does not mean every part mounts directly to the camera.
Flexible deployment
View a compatible camera with UniEase. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use UniEase for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
Need help matching this product to your project? Ask NSI

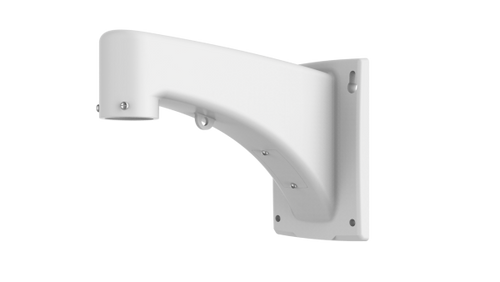

Choose accessories for your setup. Sold separately.
Live view, playback and alerts for supported UNV cameras and recorders.
Manage supported cameras and recorders with the EZStation desktop CMS.
Discover and configure supported devices on your local network.
Features and compatibility depend on the device model, firmware and software version. Check UniEase device compatibility
