Uniview
Model: IPC2124SR-ADF28KM-H
In stock
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

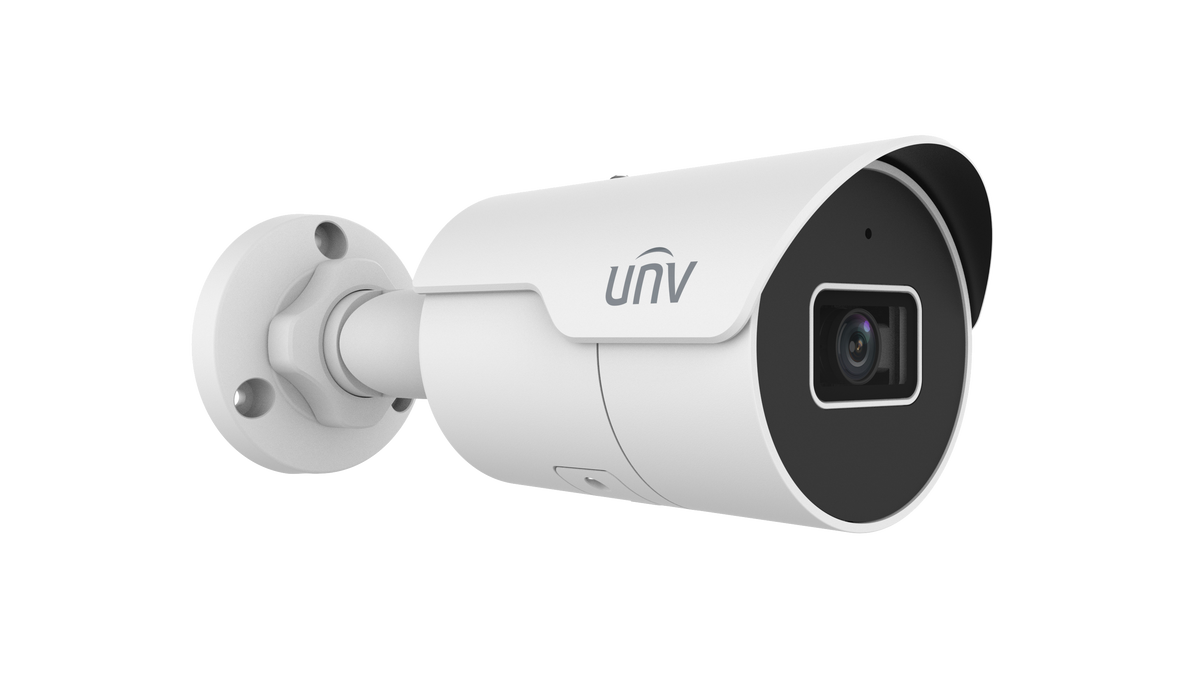

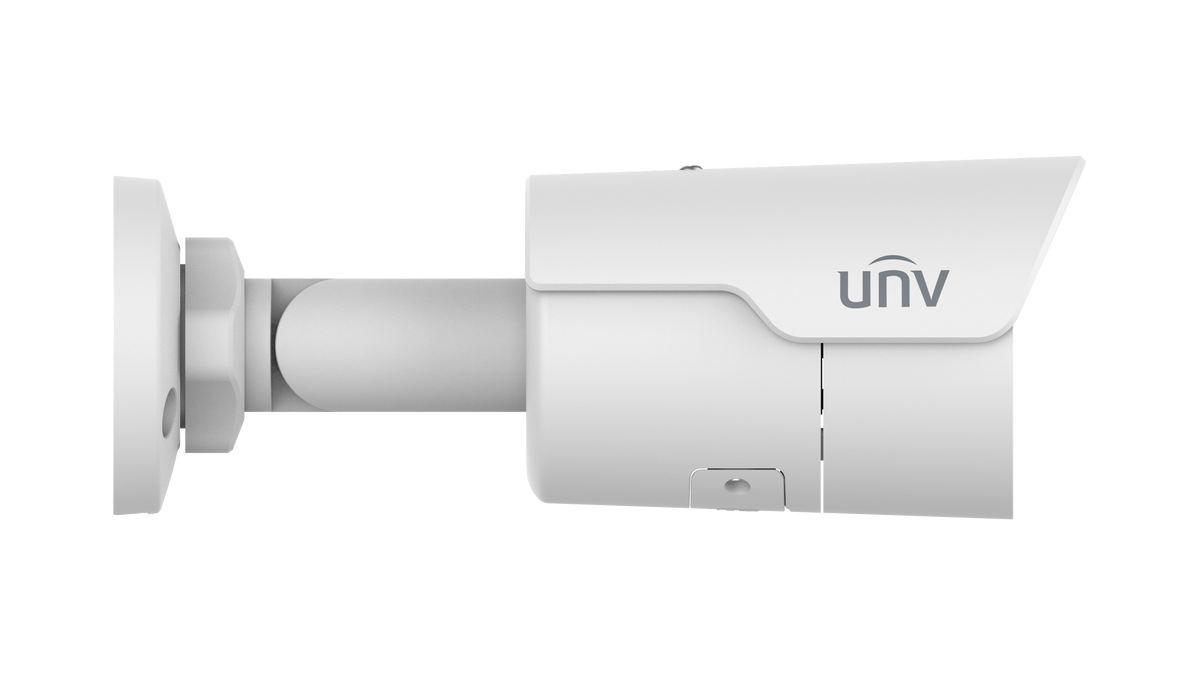

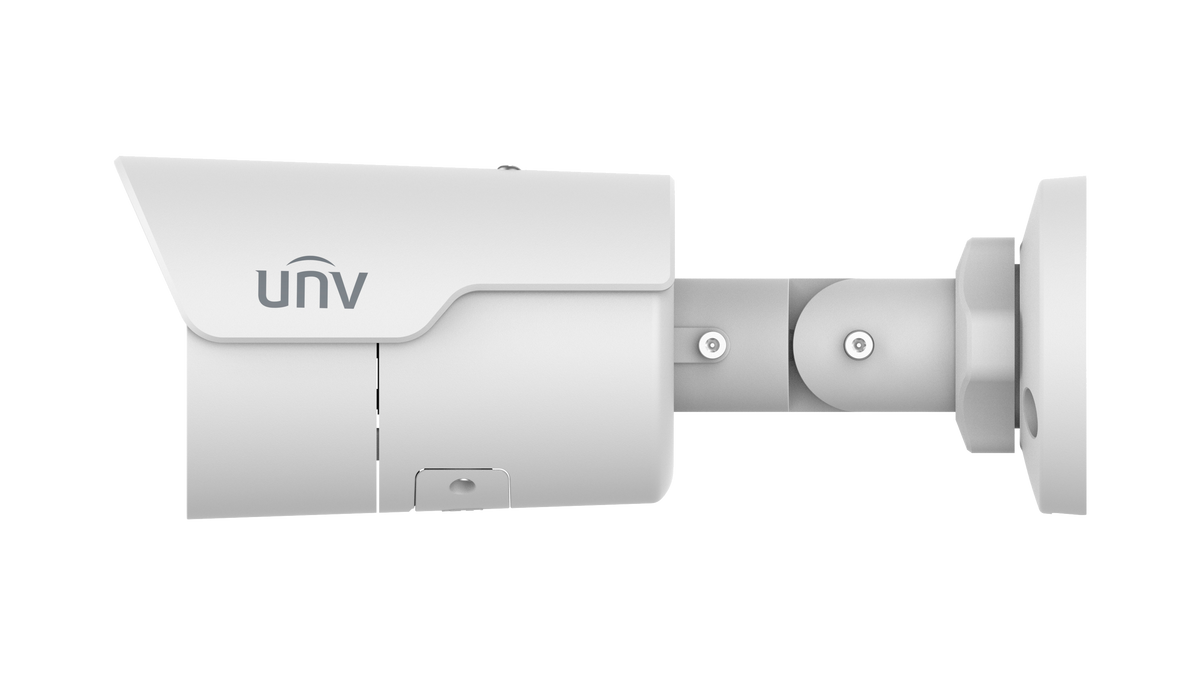

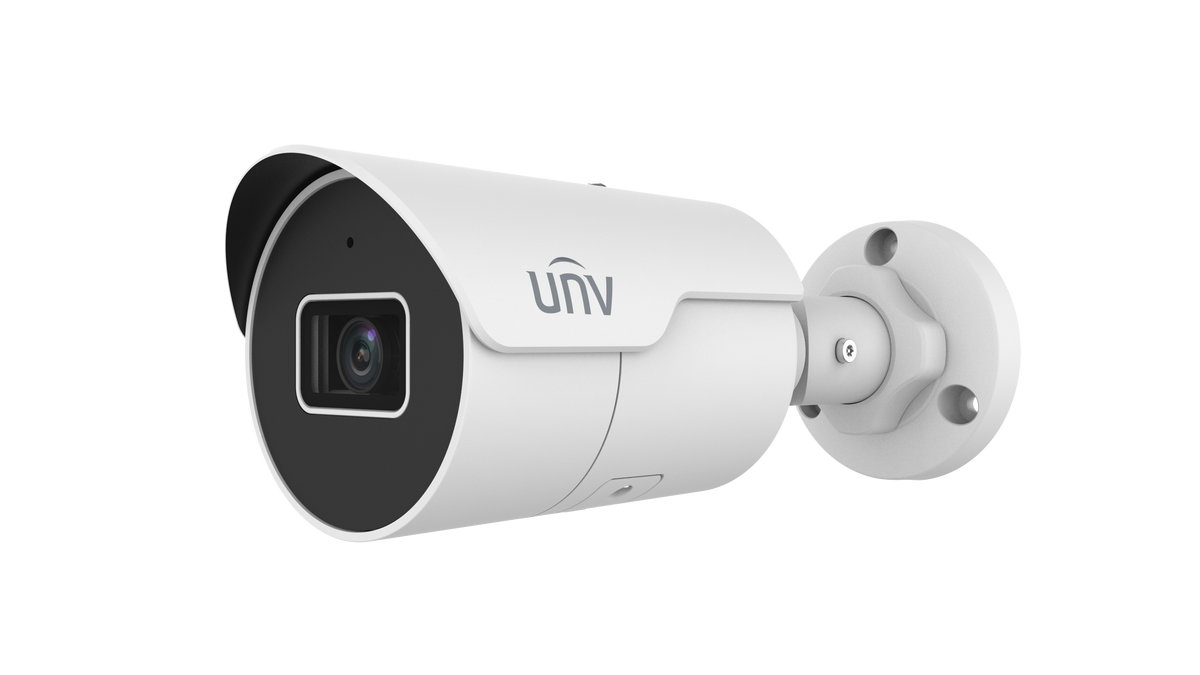

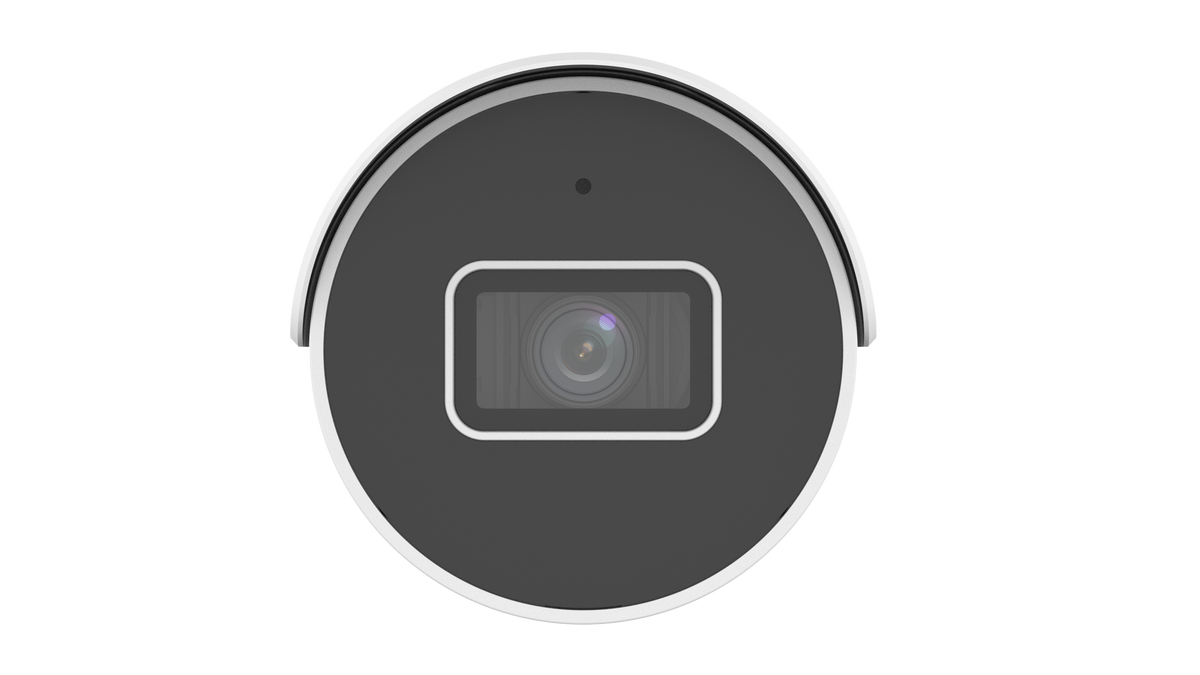

The UNV IPC2124SR-ADF28KM-H is a compact 4MP EasyStar bullet camera with a fixed 2.8mm lens. It provides general scene coverage with a built-in microphone and infrared night viewing.
WDR helps balance bright entrances and shaded areas. At night, IR illuminates the scene; aim the camera so nearby walls and objects do not reflect light back into the lens.
MicroSD support provides local storage alongside compatible NVR recording. Set the image quality and bitrate around the detail and retention required.
| Low-Light Processing | EasyStar |
|---|---|
| Model | IPC2124SR-ADF28KM-H |
| Camera Type | 4MP HD Easystar WDR Fixed IR Mini Bullet Network Camera |
| Image Sensor | 1/3.0" CMOS |
| Maximum Resolution | 2688 × 1520 |
| Lens | 2.8mm Fixed Lens |
| Aperture | F1.6 |
| Horizontal Field of View | 97.0° |
| Vertical Field of View | 52.2° |
| Diagonal Field of View | 107.5° |
| Minimum Illumination | 0.003 Lux (Color), 0 Lux with IR |
| IR Distance | Up to 50m (164 ft) |
| WDR | 120dB True WDR |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Audio | Built-in Microphone |
| Storage | MicroSD up to 512GB |
| Power | 12V DC / PoE IEEE802.3af |
| Protection | IP67 |
Confirm smart-event and audio support with the recorder. Select the junction box and mount by the full camera model.
Flexible deployment
View a compatible camera with UniEase. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use UniEase for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
Need help matching this product to your project? Ask NSI
Choose accessories for your setup. Sold separately.
Live view, playback and alerts for supported UNV cameras and recorders.
Manage supported cameras and recorders with the EZStation desktop CMS.
Discover and configure supported devices on your local network.
Features and compatibility depend on the device model, firmware and software version. Check UniEase device compatibility
