NDAA Compliant 4MP HD IR Varifocal Bullet Network Camera

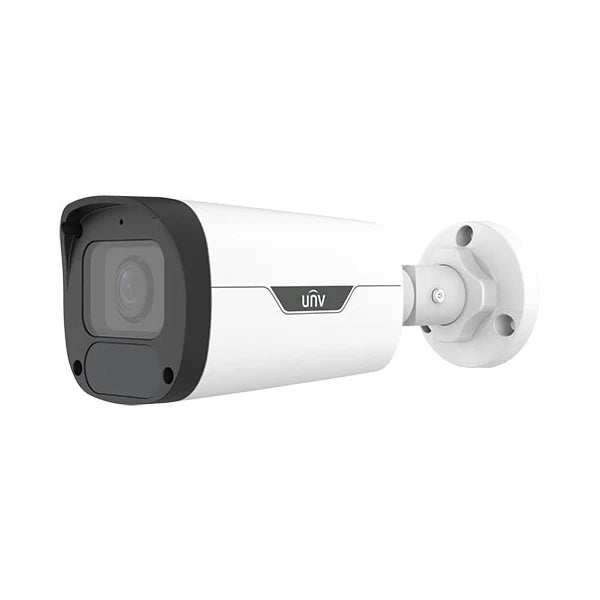

UNV IPC2324SR5-ADZK-H 4MP HD IR VF Bullet Network Camera

The UNV IPC2324SR5-ADZK-H is a 4MP NDAA-compliant varifocal bullet IP camera designed for professional indoor and outdoor surveillance. It features a 1/3" 4MP progressive scan CMOS sensor, 2.8–12mm motorized zoom lens with auto focus, EasyStar low-light performance, 120dB true WDR, Smart IR night vision up to 50m / 164ft, built-in microphone, MicroSD card support, PoE power, ONVIF integration support, and IP67 weather protection.

4MP
HD Image
NDAA
Compliant
2.8–12mm
Motorized Lens
164ft
Smart IR
IP67
Outdoor Rated

Flexible Varifocal Coverage with NDAA Compliance

The IPC2324SR5-ADZK-H is a strong choice when the installation needs adjustable zoom, long IR distance, built-in audio, and reliable outdoor protection. The motorized varifocal lens allows the camera view to be adjusted for wider coverage or tighter detail, making it suitable for entrances, driveways, parking areas, loading docks, warehouses, and commercial buildings.

Key Features

📷

4MP HD Image

Provides detailed 4MP video for everyday commercial and professional surveillance coverage.

🛡️

NDAA Compliant

Suitable for projects requiring NDAA-compliant security equipment when verified with current manufacturer documentation.

🔍

2.8–12mm Motorized Zoom

Motorized varifocal lens allows flexible adjustment between wide viewing and tighter scene detail.

🌙

EasyStar Low-Light Imaging

Helps improve image quality in low-light environments for more dependable night surveillance.

🔆

120dB True WDR

Helps balance bright and dark areas for clearer images in challenging lighting conditions.

🔦

Smart IR up to 164ft

Smart IR supports night visibility up to 50m / 164ft depending on scene and installation conditions.

🎙️

Built-In Microphone

Supports audio recording when used with compatible recorder, settings, and local regulations.

🔗

ONVIF Integration Support

Supports third-party integration through ONVIF profiles, depending on recorder compatibility and firmware support.

🌧️

IP67 Outdoor Protection

Weather-rated metal housing supports outdoor installation when properly mounted and sealed.

Feature Overview

✓ NDAA compliant / NDAA supported security camera
✓ 4MP HD IR VF bullet network camera
✓ 1/3" 4MP progressive scan CMOS sensor
✓ 2.8–12mm AF motorized zoom lens
✓ Horizontal field of view 86.3°–35.2°
✓ 120dB true WDR
✓ Smart IR up to 50m / 164ft
✓ Ultra 265 / H.265 / H.264 / MJPEG
✓ Multiple main stream and sub stream resolution options
✓ Third-party recorder integration flexibility
✓ ONVIF Profile S / G / T, API, and SDK support
✓ Built-in microphone
✓ MicroSD card support up to 256GB
✓ 9:16 corridor mode support
✓ DC 12V and PoE power support
✓ IP67 weather protection
✓ 3-axis adjustment

Best Applications

Parking Areas
Driveways
Loading Docks
Warehouses
Building Entrances
Public-Sector Projects

Product Highlights

The IPC2324SR5-ADZK-H supports multiple main stream and sub stream resolution options. This is helpful for third-party recorder integration because some non-UNV recorders may not support the camera’s full 4MP output, full frame rate, codec, ONVIF profile, or stream profile. If a third-party recorder cannot display or record the full-resolution stream properly, the camera may need to be adjusted to a lower supported resolution, FPS, compression format, or stream setting for better compatibility.

Model IPC2324SR5-ADZK-H
Camera Type 4MP HD IR VF Bullet Network Camera
NDAA Compliance NDAA compliant / NDAA supported. Please verify current manufacturer documentation before ordering for government, public-sector, or compliance-sensitive projects.
Image Sensor 1/3", 4.0 megapixel progressive scan CMOS
Resolution 4MP
Main Stream 4MP 2688 × 1520, max 25fps
4MP 2560 × 1440, max 25fps
3MP 2304 × 1296, max 30fps
1080P 1920 × 1080, max 30fps
720P 1280 × 720, max 30fps
Sub Stream 720P 1280 × 720, max 30fps
D1 720 × 576, max 30fps
640 × 360, max 30fps
Third-Party Recorder Integration Third-party recorder compatibility is commonly affected by ONVIF profile support, firmware version, codec support, camera resolution, frame rate, and stream profile settings. If a third-party recorder cannot display or record the full 4MP stream properly, the camera may need to be adjusted to a lower supported resolution, FPS, compression format, or stream setting.
Compatible Integration ONVIF Profile S / Profile G / Profile T, API, SDK
Video Compression Ultra 265 / H.265 / H.264 / MJPEG
Video Bit Rate 128 Kbps to 6 Mbps
Low-Light Technology EasyStar low-light imaging
Minimum Illumination Color: 0.003 lux, 0 lux with IR on
Wide Dynamic Range 120dB True WDR
Lens 2.8–12mm AF automatic focusing and motorized zoom lens
Field of View Horizontal 86.3°–35.2°
Vertical 47.1°–17.0°
Diagonal 91.9°–38.6°
IR Distance Smart IR up to 50m / 164ft
Audio Built-In Microphone
Smart / Event Features Cross Line based on Human Body Detection, Intrusion based on Human Body Detection, Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
Storage MicroSD Card Support up to 256GB; ANR; NAS (NFS)
Network 1 × RJ45 10M/100M Base-TX Ethernet
Power DC 12V ±25% / PoE IEEE 802.3af, max 9.6W
Dimensions 206 × 73 × 73mm / 8.1" × 2.9" × 2.9"
Weight 0.51kg / 1.12lb
Material Metal
Adjustment Angle Pan 0°–360°, Tilt 0°–90°, Rotate 0°–360°
Protection IP67 Weather Rated

Installation Tip

For best image quality and recorder compatibility, confirm zoom position, focus, IR reflection, WDR, audio recording rules, PoE power, stream resolution, FPS, codec, ONVIF profile support, NDAA documentation, storage settings, and recorder compatibility during setup. If the recorder is a third-party model, test both the main stream and sub stream before final installation.

Note: Specifications are subject to change without notice. NDAA status, features, MicroSD card support, audio functions, image performance, stream resolution, frame rate, codec support, IR distance, PoE behavior, ONVIF profile support, third-party recorder compatibility, EasyStar behavior, and overall system performance may vary depending on firmware version, recorder model, ONVIF implementation, installation environment, lighting conditions, network setup, camera settings, stream profile, and system configuration. Please always double-check the manufacturer’s official specifications, NDAA documentation, and recorder compatibility before ordering.

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
