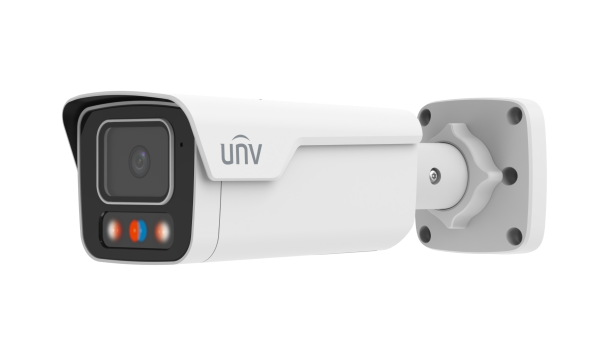

UNV IPC2B14SS-ADF28KMC-I1 Uniview 4MP Intelligent Light and Sound Warning IP Bullet Camera, NDAA

The Uniview IPC2B14SS-ADF28KMC-I1 is a 4MP Tri-Guard fixed dual-light bullet network camera designed for clear video, smart detection, and active deterrence. With a 1/2.7" CMOS sensor, F1.0 large aperture lens, 130dB true WDR, built-in microphone and speaker, red/blue warning light, dual-light illumination, and IP67 weather protection, this camera is a strong choice for entrances, driveways, parking areas, warehouses, storefronts, and commercial security applications.

Key Features

• ✦ High-quality image with 4MP resolution and 1/2.7" CMOS sensor
• ✦ 2.8mm fixed lens with wide 102.3° horizontal field of view
• ✦ F1.0 large aperture lens helps capture brighter images in low-light scenes
• ✦ 130dB true WDR helps produce clear images in strong backlight or high-contrast scenes
• ✦ Supports Ultra 265 / H.265 / H.264 / MJPEG video compression formats
• ✦ Dual-light illumination with IR and warm light up to 40m / 131ft
• ✦ Supports red and blue warning light for active deterrence
• ✦ Built-in microphone and speaker for two-way audio support
• ✦ Supports alarm input and alarm output — 1 input / 1 output
• ✦ Supports audio input and audio output — 1 input / 1 output
• ✦ Supports 9:16 corridor mode for hallways, entrances, aisles, and narrow viewing areas
• ✦ Supports microSD card storage up to 512GB, card sold separately
• ✦ Outdoor-ready with IP67 weather protection
• ✦ Supports smart intrusion prevention with human, vehicle, and non-motor vehicle classification

Additional Features

Specifications

• ✦ Model: IPC2B14SS-ADF28KMC-I1
• ✦ Type: 4MP Tri-Guard fixed dual-light bullet network camera
• ✦ Sensor: 1/2.7" CMOS sensor
• ✦ Maximum Resolution: 4MP, up to 2688 × 1520
• ✦ Frame Rate: 4MP up to 30/25fps; 3MP and 1080P up to 30/25fps
• ✦ Lens: 2.8mm fixed lens, F1.0 aperture
• ✦ Field of View: Horizontal 102.3°, Vertical 54.7°, Diagonal 106.8°
• ✦ DORI Distance: Detect 63.0m / 206.7ft; observe 25.2m / 82.7ft; recognize 12.6m / 41.3ft; identify 6.3m / 20.7ft, based on 2.8mm lens
• ✦ WDR: 130dB true WDR
• ✦ Illumination: Dual light — IR up to 40m / 131ft, warm light up to 40m / 131ft
• ✦ Video Compression: Ultra 265, H.265, H.264, MJPEG
• ✦ Audio: Built-in microphone and built-in speaker, supports two-way audio
• ✦ Audio I/O: 1 input / 1 output
• ✦ Alarm I/O: 1 input / 1 output
• ✦ Local Storage: Built-in microSD card slot, supports up to 512GB, card sold separately
• ✦ Network: RJ45 Ethernet network connection
• ✦ Power: DC 12V or PoE IEEE 802.3af
• ✦ Weather Protection: IP67 rated
• ✦ Recommended Use: Entrances, driveways, gates, storefronts, warehouses, parking areas, and perimeter monitoring

Best Use: Ideal for entrances, storefronts, driveways, gates, parking areas, warehouses, loading areas, building perimeters, and locations that need smart detection, two-way audio, warning light deterrence, and reliable outdoor surveillance.

Installation Tip: For best results, confirm the camera angle, detection area, speaker volume, warning light settings, and nighttime performance after installation. Smart detection and active deterrence features should be adjusted based on the actual scene to reduce unnecessary alerts.

Note: Specifications are subject to change without notice. Features, analytics, audio functions, warning light behavior, MicroSD support, image performance, and compatibility may vary by firmware version, recorder model, installation environment, lighting conditions, network setup, and system configuration. Please always double-check the manufacturer’s official specifications for the most accurate and up-to-date product information before ordering.
