Uniview
Model: IPC2B18SS-ADF28KMC-I1
In stock
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

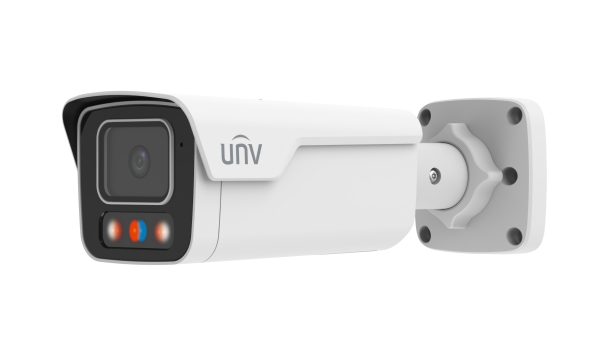

The UNV IPC2B18SS-ADF28KMC-I1 is an 8MP Tri-Guard bullet camera with a wide 2.8mm lens, dual illumination and built-in audio. It can record activity and deliver configured light or sound warnings from the same camera.
Supported classification distinguishes people, vehicles and non-motor vehicles for intrusion rules. Tune the detection area and response to the camera’s actual view.
The F1.0 lens assists low-light imaging, with warm light available for color viewing. Audio I/O adds connections for compatible external equipment alongside the integrated microphone and speaker.
| Noise Reduction | 2D / 3D DNR |
|---|---|
| Model | IPC2B18SS-ADF28KMC-I1 |
| Camera Type | 8MP Tri-Guard Fixed Dual-Light Bullet Network Camera |
| NDAA Compliance | NDAA compliant / NDAA supported. Please verify current manufacturer documentation before ordering for government, public-sector, or compliance-sensitive projects. |
| Image Sensor | 1/2.8" CMOS |
| Resolution | 8MP / 4K |
| Main Stream |
8MP 3840 × 2160, max 30fps 5MP 3072 × 1728, max 30fps 4MP 2560 × 1440, max 30fps 1080P 1920 × 1080, max 30fps |
| Sub Stream |
1080P 1920 × 1080, max 30fps 720P 1280 × 720, max 30fps D1 720 × 576, max 30fps 640 × 360, max 30fps 2CIF 704 × 288, max 30fps CIF 352 × 288, max 30fps |
| Third Stream |
D1 720 × 576, max 30fps 640 × 360, max 30fps 2CIF 704 × 288, max 30fps CIF 352 × 288, max 30fps |
| Third-Party Recorder Integration | Third-party recorder compatibility is commonly affected by ONVIF profile support, firmware version, codec support, camera resolution, frame rate, audio support, alarm I/O support, warning light behavior, smart event behavior, and stream profile settings. If a third-party recorder cannot display or record the full 8MP stream properly, the camera may need to be adjusted to a lower supported resolution, FPS, compression format, or stream setting. |
| Compatible Integration | API, SDK, ONVIF Profile S / Profile G / Profile T / Profile M |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Video Stream | Triple Streams |
| Minimum Illumination | Color: 0.001 Lux, 0 Lux with light |
| Wide Dynamic Range | 130dB True WDR |
| Lens | 2.8mm Fixed Lens, F1.0 |
| Field of View |
Horizontal 106.5° Vertical 57.9° Diagonal 132° |
| DORI Distance |
Detect: 86.9m / 285.1ft Observe: 34.8m / 114.2ft Recognize: 17.4m / 57.1ft Identify: 8.7m / 28.5ft |
| Supplemental Light | Dual Light: Smart IR + Warm Light |
| IR / Warm Light Distance | IR up to 40m / 131.2ft; Warm Light up to 40m / 131.2ft |
| Warning Light | Red and Blue Warning Light Support |
| Audio | Built-In Microphone and Built-In Speaker; Two-Way Audio Support; Audio I/O 1/1 |
| Audio Compression | G.711U / G.711A, 64 Kbps |
| Alarm I/O | Alarm Input 1 / Alarm Output 1 |
| Smart / Event Features | Intelligent Perimeter Protection, Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection, Human / Vehicle / Non-Motor Vehicle Classification, People Flow Counting, Crowd Density Monitoring, Smart Intrusion Prevention with Color Retrieval, Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection |
| Storage | MicroSD Card Support up to 512GB; ANR; NAS (NFS) |
| Network | 1 × RJ45 10M/100M Base-TX Ethernet |
| Power | DC 12V ±25% / PoE IEEE 802.3af, max 10.0W |
| Dimensions | 269mm × 96mm × 82mm / 10.6" × 3.8" × 3.2" |
| Weight | 0.97kg / 2.14lb |
| Material | Metal + Plastic |
| Adjustment Angle | Pan 0°–360°, Tilt 0°–90°, Rotate 0°–360° |
| Protection | IP67 Weather Rated |
Check NVR support for the selected resolution, analytics and audio functions. Basic video compatibility does not guarantee control of every warning feature.
Flexible deployment
View a compatible camera with UniEase. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use UniEase for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
Need help matching this product to your project? Ask NSI
Choose accessories for your setup. Sold separately.
Live view, playback and alerts for supported UNV cameras and recorders.
Manage supported cameras and recorders with the EZStation desktop CMS.
Discover and configure supported devices on your local network.
Features and compatibility depend on the device model, firmware and software version. Check UniEase device compatibility
