Dual-Channel MultiView Surveillance

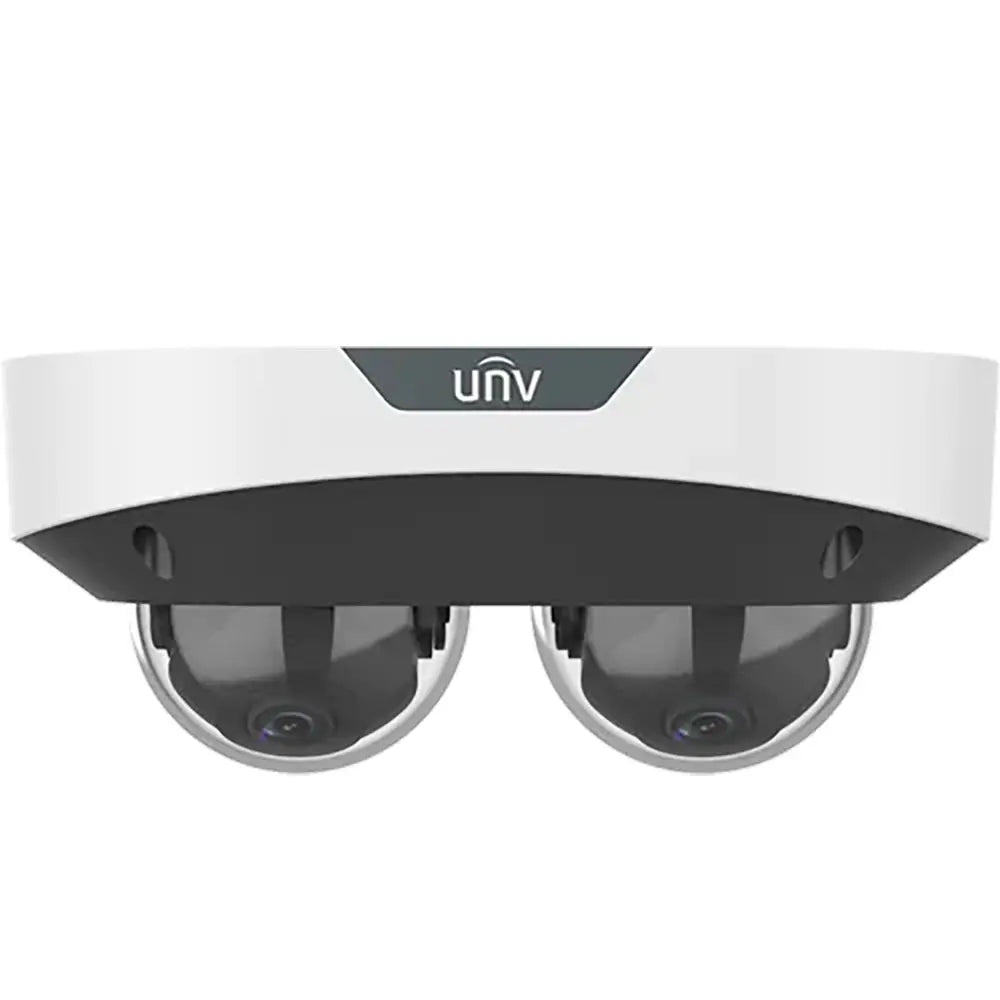

UNV 2 × 4MP LightHunter Dual-Channel MultiView IR Dome Camera

Model: IPC3224SS-ADF28K-I1

Monitor two separate viewing directions through one camera housing, one network cable and one IP address. The UNV IPC3224SS-ADF28K-I1 combines two independent 4MP channels, LightHunter low-light imaging, intelligent perimeter protection, dual microphones, 130dB true WDR, Smart IR and vandal-resistant construction in a professional MultiView dome design.

◫
2 × 4MP Two independent video channels
↔
Dual View Two directions from one housing
☾
98 ft IR Smart infrared illumination
◆
IP67 + IK10 Weather and vandal protection
Two cameras in one professional housing

Why Choose the IPC3224SS-ADF28K-I1?

Designed for intersections, hallways, building corners, entrances and open commercial areas where two separate views are needed without installing two completely separate cameras.

Two Independent 4MP Channels

The camera contains two separate 4MP imaging channels. Each channel can monitor a different direction, giving installers greater coverage from a single camera location.

Single IP and Network Connection

Both channels operate through one network interface and one IP address, helping simplify cabling, switch-port requirements and network administration compared with installing two individual cameras.

Non-Splicing MultiView Design

Each lens produces its own independent video stream instead of combining the images into a stitched panorama. This allows each direction to be viewed and configured as a separate channel.

LightHunter Low-Light Imaging

LightHunter technology helps maintain better image quality, detail and color visibility in low-light environments before the camera changes to infrared night mode.

130dB True WDR

True Wide Dynamic Range helps balance bright and dark areas within the same scene, making the camera suitable for entrances, windows, loading areas and other strongly backlit locations.

Smart Intrusion Prevention

Both channels support cross-line, intrusion, enter-area and leave-area detection with target classification for humans, motor vehicles and non-motor vehicles.

People Flow and Crowd Analysis

Channel 1 supports intelligent people-flow counting and crowd-density monitoring, helping provide occupancy and activity information for compatible commercial applications.

Built-In Dual Microphones

Two integrated microphones provide environmental audio capture. The camera also includes external audio input and output connections for supported two-way audio configurations.

Smart IR Night Vision

Integrated infrared illumination provides nighttime visibility up to approximately 98 feet while Smart IR helps reduce overexposure as subjects move closer to the camera.

Heavy-Duty Metal Construction

The IP67 weather-resistant and IK10 vandal-resistant metal housing supports indoor and outdoor use in demanding commercial environments.

One Camera Position. Two Separate Viewing Directions.

The IPC3224SS-ADF28K-I1 is ideal when a conventional single-lens camera cannot cover both directions. Each lens can be positioned independently within the camera's supported adjustment range, helping reduce blind spots while maintaining one clean mounting location.

Opposite Hallway Directions Monitor both ends of a corridor from a central mounting point.
Building Corner Coverage Aim each channel along a different exterior wall or walkway.
Entrance and Interior View Watch an entry door and the interior activity behind it simultaneously.
Independent Analytics Configure perimeter-protection rules separately for each video channel.
Triple Streams per Channel Supports flexible main, sub and third-stream configurations.
Efficient Video Compression Ultra 265 and H.265 help reduce storage and bandwidth requirements.
Recommended applications

Ideal Installation Locations

Best suited for locations where two independent viewing directions are required from one secure mounting position.

↔ Long Hallways Monitor both directions from one central camera location.
⌜ Building Corners Cover two exterior walls or walkways with one housing.
⇄ Entrances and Exits Observe incoming and outgoing activity simultaneously.
▤ Warehouses Cover intersecting aisles, loading zones and work areas.
▥ Parking Facilities Monitor multiple travel directions or pedestrian routes.
▦ Schools and Campuses Cover corridor intersections and shared common areas.
⌂ Retail Locations Monitor an entrance and sales-floor activity from one point.
⚙ Industrial Facilities Observe intersecting production paths and restricted areas.
Technical overview

Product Highlights

Camera Type Dual-channel, non-splicing MultiView fixed IR intelligent dome network camera
Video Channels Two independent camera channels through one IP address
Image Sensors Two 1/3-inch, 4MP progressive-scan CMOS imaging channels
Maximum Resolution Up to 2688 × 1520 per channel
Maximum Frame Rate Up to 25 fps at 2688 × 1520 and up to 30 fps at supported lower resolutions, depending on video-standard configuration
Lens Two fixed 2.8mm lenses with F1.6 aperture
Field of View Approximately 97.7° horizontal, 52.7° vertical and 102.5° diagonal per channel
Minimum Illumination 0.002 lux in color with AGC enabled; 0 lux with IR activated
Wide Dynamic Range 130dB true WDR
Night Vision Smart IR illumination up to approximately 30m / 98.4 ft
Video Compression Ultra 265, H.265, H.264 and MJPEG
Video Streams Triple-stream support
Smart Intrusion Prevention Cross-line, intrusion, enter-area and leave-area detection with human, motor-vehicle and non-motor-vehicle classification
Statistical Analysis People-flow counting and crowd-density monitoring on Channel 1
Basic Events Motion detection, ultra motion detection, tampering alarm, audio detection, object removed and object left behind
Built-In Audio Two built-in microphones
External Audio One audio input and one audio output; supports compatible two-way audio configuration
Alarm Connections One alarm input and one alarm output
Edge Storage MicroSD card support up to 512GB, subject to compatible card, firmware version and system configuration
Network Storage ANR and NAS using NFS
Integration ONVIF Profiles S, G, T and M; API and SDK support
Network Connection 1 × RJ45 10/100 Mbps Ethernet port
Power 12V DC or IEEE 802.3af PoE
Maximum Power Consumption Approximately 9.1 watts
Environmental Protection IP67 weather-resistant and IK10 vandal-resistant
Housing Material Metal
Operating Temperature -22°F to 140°F / -30°C to 60°C
Surge Protection Up to 4kV
Dimensions Approximately 6.9 × 4.1 × 2.8 inches / 176 × 104 × 72mm
Weight Approximately 1.37 lb / 0.62kg
Compliance Listed by UNV among its NDAA-compliant product models
ⓘ

Important Dual-Channel Recorder Compatibility Notice

This camera contains two separate 4MP video channels while using one network interface and IP address. The recorder or VMS may consume two camera channels, licenses or decoding resources. Dual-channel display, playback, analytics, alarm functions, audio and configuration support may vary depending on the NVR model, VMS platform and firmware version. Please contact NSI Security before ordering to confirm compatibility with your existing recorder or software.

Professional Installation Tip

Plan both viewing directions before drilling or permanently mounting the camera. Each lens should be positioned to cover a distinct scene without excessive overlap. Confirm that both channels display correctly on the recorder and that sufficient NVR channel, bandwidth, decoding and storage capacity are available. Use a compatible junction box and weatherproof all cable connections for outdoor installations.

Complete the installation

Recommended Accessories

Complete your installation with compatible mounting, storage, recording and network accessories.

Recommended

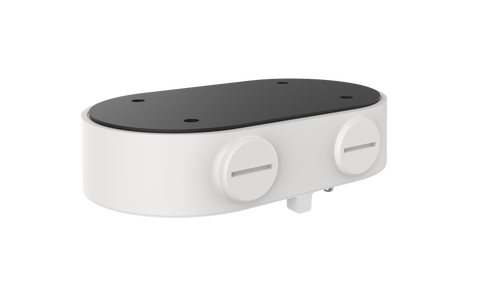

UNV TR-JB08 Junction Box

The dedicated junction box for this dual-lens dome camera provides protected cable management and a professional mounting surface.

Weather Protection

UNV TR-A01-IN Waterproof Joint

Helps protect the network connection from moisture when installed correctly in an outdoor environment.

Pendant Mounting

UNV TR-CM24-IN Pendant Bracket

Compatible indoor pendant-mounting bracket for supported ceiling and suspended installation configurations.

Mounting Pole

UNV TR-SE24-IN

Approximately 200mm pendant-mounting pole for compatible installation arrangements.

Extended Mounting

UNV TR-SE24-A-IN

Approximately 500mm pendant-mounting pole for applications requiring additional suspension length.

Edge Recording

High-Endurance MicroSD Card

Add compatible surveillance-grade storage for supported event recording, ANR backup and edge-recording applications.

Network

PoE Network Switch

Deliver power and network connectivity through one Ethernet cable using a properly sized IEEE 802.3af-compatible PoE switch.

Recording

Compatible UNV Network Video Recorder

Choose an NVR with sufficient channel, bandwidth, decoding and storage capacity for both 4MP video channels.

Backup Power

UPS Battery Backup

Protect the PoE switch, recorder and network equipment from brief outages, voltage fluctuations and unexpected shutdowns.

Manufacturer resources

Product Downloads and Support

Visit the official UNV product page for the latest datasheet, product images, user manual, quick installation guide and dimensions.

▤ Official Datasheet ⌘ User Manual & Quick Guide ⇩ Firmware and Resources
✓

3-Year UNV Manufacturer Warranty

This UNV product includes a three-year manufacturer equipment warranty when purchased through NSI Security, subject to applicable warranty terms, exclusions, product eligibility and return procedures. Labor, removal, reinstallation, shipping and onsite service are not included unless separately stated in writing.
