UNV IPC3235SB-ADZK-I0 5MP HD Intelligent LightHunter IR VF Dome Network Camera
In Stock Sale

Uniview

UNV IPC3235SB-ADZK-I0 5MP HD Intelligent LightHunter IR VF Dome Network Camera

SKU: IPC3235SB-ADZK-I0

$829.00 $1,029.00
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast FulfillmentU.S. warehouse order processing
30-Day Eligible ReturnsUnused items with approved RMA
Need project pricing? Request a private quote for larger or special orders. Request Project Pricing

Your request is reviewed privately. Approved project pricing is provided through a private quote or Shopify Draft Order.

Payment security: Do not enter a card number, expiration date, or security code in this form. Online payments are accepted only through Shopify's secure checkout or an authorized Shopify payment link.

Need compatibility help? Call (856) 317-0600 for professional assistance.
Overview Resources & Support Compatibility Solution Builder Specifications
Product overview

Reliable Security Performance

Designed to deliver dependable video surveillance with features and performance that vary by model, firmware, environment, and system configuration.

Professional Quality

Designed for demanding surveillance and networking environments.

System Compatibility

Use the compatibility tools below to select supported components.

Technical Support

Get assistance with configuration, installation and product selection.

Secure Purchasing

U.S.-based fulfillment and protected checkout.

Product assistance

Need Assistance?

Documentation, system compatibility tools, shipping information, and direct support from NSI Security.

Shipping InformationU.S. fulfillment

Processing times, delivery estimates, signature requirements, and shipping limitations vary by order and destination.

View Shipping Policy →
DocumentationBy request

Review current datasheets, manuals, firmware notes, and manufacturer documentation before ordering or installation.

Request Documentation →
Technical SupportNSI assistance

Get product selection, compatibility, configuration, and basic troubleshooting assistance from NSI Security.

Contact Support →
Verified System ComponentsProduct-specific compatibility

Review product-specific cameras, recorders, cable, networking, storage, power, and accessories assigned to work with this item.

View Components →
RMA RequestAfter-purchase assistance

Request return authorization, repair evaluation, or replacement assistance for an eligible order.

Start RMA Request →
Contact Our TeamSales and product questions

Contact NSI Security for product selection, availability, compatibility, and order assistance.

Contact NSI Security →
System compatibility

Verified System Components

Product-specific components selected for a more confident system configuration. Only populated categories are displayed.

One-click system configuration

Build Your Complete Solution

Select the components you need and add the complete configuration to your cart.

Mounting & Accessories

Compatible Recorders

PoE Switches

Product information

Product Details & Technical Specifications

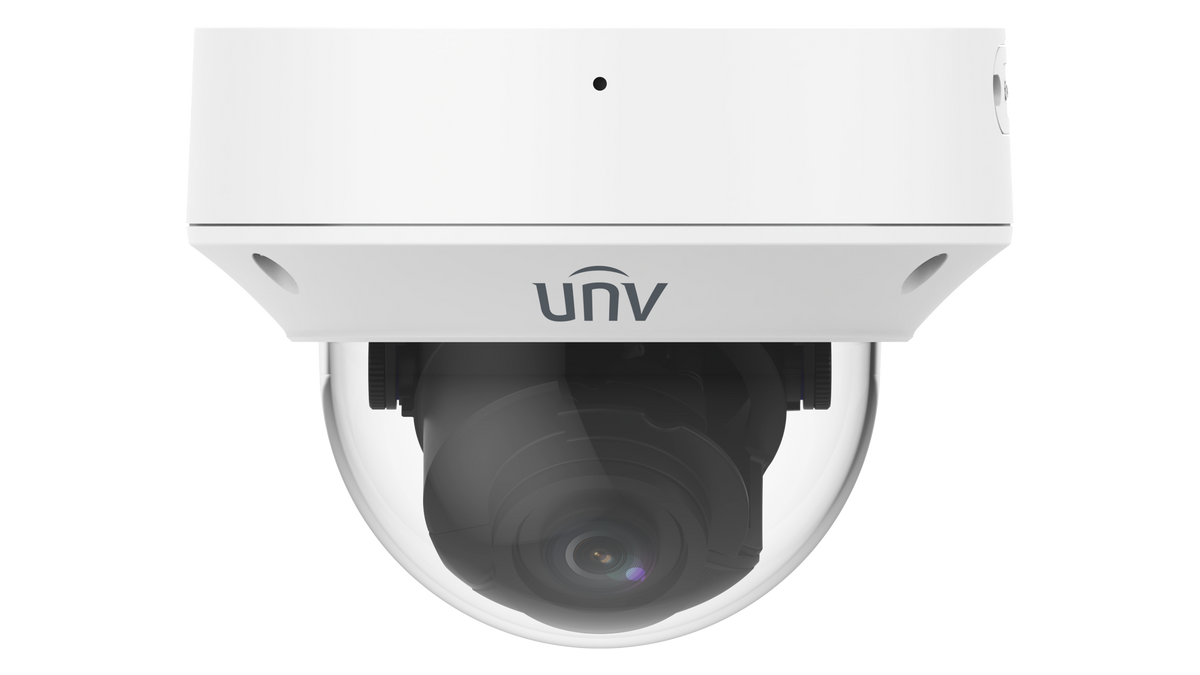

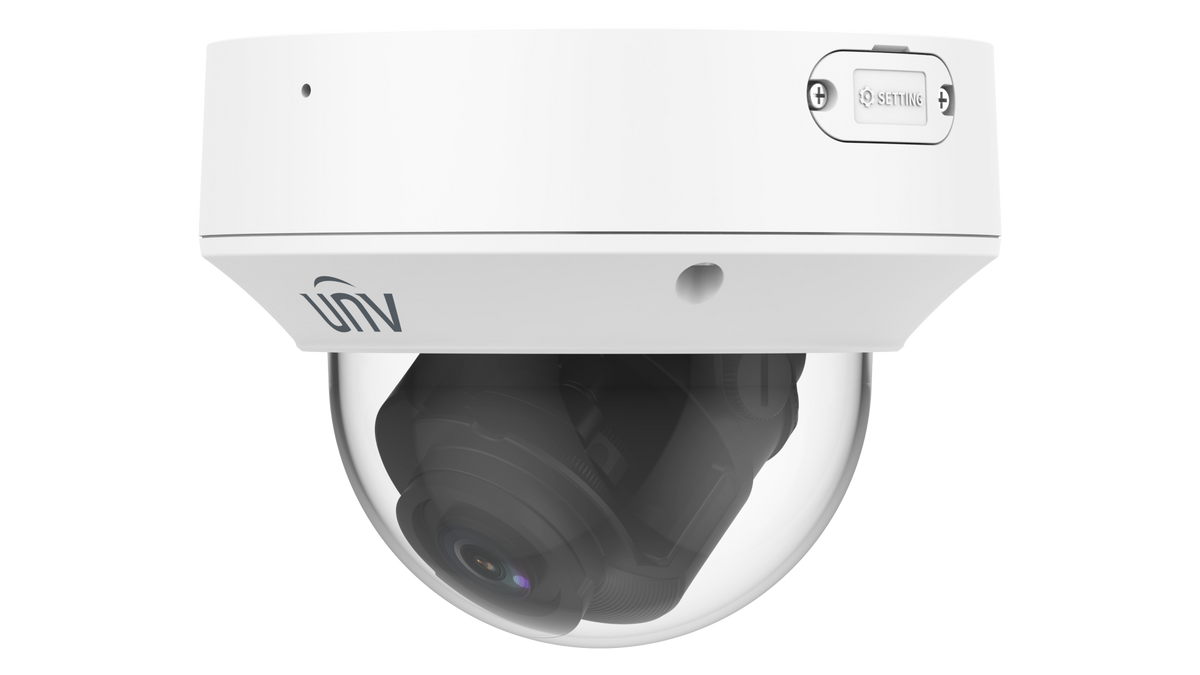

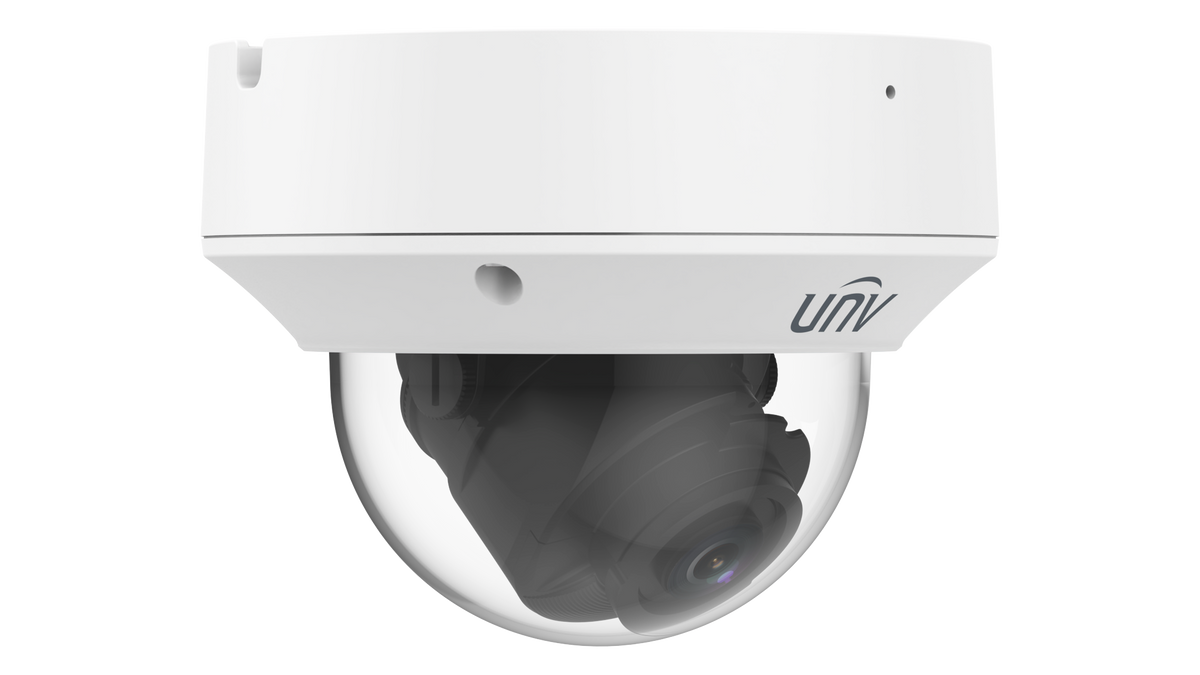

Uniview IPC3235SB-ADZK-I0 5MP LightHunter Motorized Varifocal IR Dome Network Camera

The Uniview IPC3235SB-ADZK-I0 is a professional 5MP LightHunter motorized varifocal IR dome network camera designed for high-quality indoor and outdoor surveillance. The 2.7–13.5mm motorized zoom lens with autofocus provides flexible coverage, allowing installers to adjust the viewing angle from wide-area monitoring to more detailed long-distance observation.

LightHunter low-light technology, 120 dB true WDR, and Smart IR illumination up to 40m (131.2 ft) help provide clear video in low-light and challenging backlight environments. Intelligent perimeter protection uses target classification to help distinguish humans, motor vehicles, and non-motor vehicles.

The camera also supports people-flow counting, crowd-density monitoring, a built-in microphone, audio and alarm I/O, MicroSD edge storage, PoE, and durable IP67 weatherproof and IK10 vandal-resistant protection.

Key Features

  • 5MP LightHunter motorized varifocal IR dome network camera
  • 1/2.7" progressive scan CMOS image sensor
  • Maximum resolution of 2880 × 1620 at up to 30 fps
  • 2.7–13.5mm motorized zoom lens with autofocus
  • Horizontal field of view from 106.3° to 32.5°
  • LightHunter technology for enhanced low-light image quality
  • 120 dB true WDR for strong backlight environments
  • Smart IR illumination up to 40m (131.2 ft)
  • Intelligent perimeter protection
  • Human, motor vehicle, and non-motor vehicle classification
  • Cross-line, intrusion, enter-area, and leave-area detection
  • Intelligent people-flow counting and crowd-density monitoring
  • Built-in microphone
  • 1 audio input and 1 audio output
  • 1 alarm input and 1 alarm output
  • Ultra 265, H.265, H.264, and MJPEG video compression
  • Supports 9:16 corridor mode
  • MicroSD card support up to 512GB
  • 12V DC or PoE IEEE 802.3af power
  • IP67 weatherproof and IK10 vandal-resistant protection
  • Metal housing with 6 kV surge protection

Specifications

Model IPC3235SB-ADZK-I0
Camera Type 5MP LightHunter Motorized Varifocal IR Dome Network Camera
Image Sensor 1/2.7" 5MP Progressive Scan CMOS
Maximum Resolution 2880 × 1620
Maximum Frame Rate Up to 30 fps at 2880 × 1620
Lens 2.7–13.5mm Motorized Zoom Lens with Autofocus
Lens Aperture F1.2
Field of View Horizontal: 106.3°–32.5°; Vertical: 53.5°–18.0°
Minimum Illumination Color: 0.002 Lux (F1.2, AGC On); 0 Lux with IR
Low-Light Technology LightHunter
Wide Dynamic Range 120 dB True WDR
IR Distance Up to 40m (131.2 ft)
Video Compression Ultra 265, H.265, H.264, MJPEG
Intelligent Perimeter Protection Cross Line, Intrusion, Enter Area, and Leave Area Detection
Target Classification Human, Motor Vehicle, and Non-Motor Vehicle
People Analytics People-Flow Counting and Crowd-Density Monitoring
Built-in Microphone Yes
Audio I/O 1 Audio Input / 1 Audio Output
Alarm I/O 1 Alarm Input / 1 Alarm Output
Edge Storage MicroSD Card Support, Up to 512GB
Network Interface 1 × RJ45 10/100 Mbps Ethernet Port
Power Supply 12V DC ±25% or PoE IEEE 802.3af
Maximum Power Consumption 7.0W
Protection Rating IP67 / IK10
Operating Temperature -30°C to 60°C (-22°F to 140°F)
Dimensions Ø148.0 × 111.4mm (Ø5.8 × 4.4 in)
Weight 0.97kg (2.12 lb)
Housing Material Metal

Ideal Applications

  • Retail stores and shopping centers
  • Office buildings and commercial entrances
  • Schools and educational facilities
  • Warehouses and industrial locations
  • Parking areas and building perimeters
  • Indoor and outdoor commercial surveillance
  • Areas requiring people counting and crowd monitoring

```

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
