UNV IPC3634SR4-ADZK-H 4MP 2.8–12mm Motorized Varifocal IR Eyeball Network Camera – NDAA Compliant
In Stock Sale

Uniview

UNV IPC3634SR4-ADZK-H 4MP 2.8–12mm Motorized Varifocal IR Eyeball Network Camera – NDAA Compliant

SKU: IPC3634SR4-ADZK-H

$529.00 $659.00
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast FulfillmentU.S. warehouse order processing
30-Day Eligible ReturnsUnused items with approved RMA
Need project pricing? Request a private quote for larger or special orders. Request Project Pricing

Your request is reviewed privately. Approved project pricing is provided through a private quote or Shopify Draft Order.

Need compatibility help? Call (856) 317-0600 for professional assistance.
Overview Resources & Support Compatibility Solution Builder Specifications
Product overview

Reliable Security Performance

Designed to deliver dependable video surveillance with features and performance that vary by model, firmware, environment, and system configuration.

Professional Quality

Designed for demanding surveillance and networking environments.

System Compatibility

Use the compatibility tools below to select supported components.

Technical Support

Get assistance with configuration, installation and product selection.

Secure Purchasing

U.S.-based fulfillment and protected checkout.

Product assistance

Need Assistance?

Documentation, system compatibility tools, shipping information, and direct support from NSI Security.

Shipping InformationU.S. fulfillment

Processing times, delivery estimates, signature requirements, and shipping limitations vary by order and destination.

View Shipping Policy →
DocumentationBy request

Review current datasheets, manuals, firmware notes, and manufacturer documentation before ordering or installation.

Request Documentation →
Technical SupportNSI assistance

Get product selection, compatibility, configuration, and basic troubleshooting assistance from NSI Security.

Contact Support →
Verified System ComponentsProduct-specific compatibility

Review product-specific cameras, recorders, cable, networking, storage, power, and accessories assigned to work with this item.

View Components →
RMA RequestAfter-purchase assistance

Request return authorization, repair evaluation, or replacement assistance for an eligible order.

Start RMA Request →
Contact Our TeamSales and product questions

Contact NSI Security for product selection, availability, compatibility, and order assistance.

Contact NSI Security →
System compatibility

Verified System Components

Product-specific components selected for a more confident system configuration. Only populated categories are displayed.

One-click system configuration

Build Your Complete Solution

Select the components you need and add the complete configuration to your cart.

Compatible Recorders

PoE Switches

Product information

Product Details & Technical Specifications



NDAA Compliant 4MP Motorized Varifocal IR Eyeball Camera

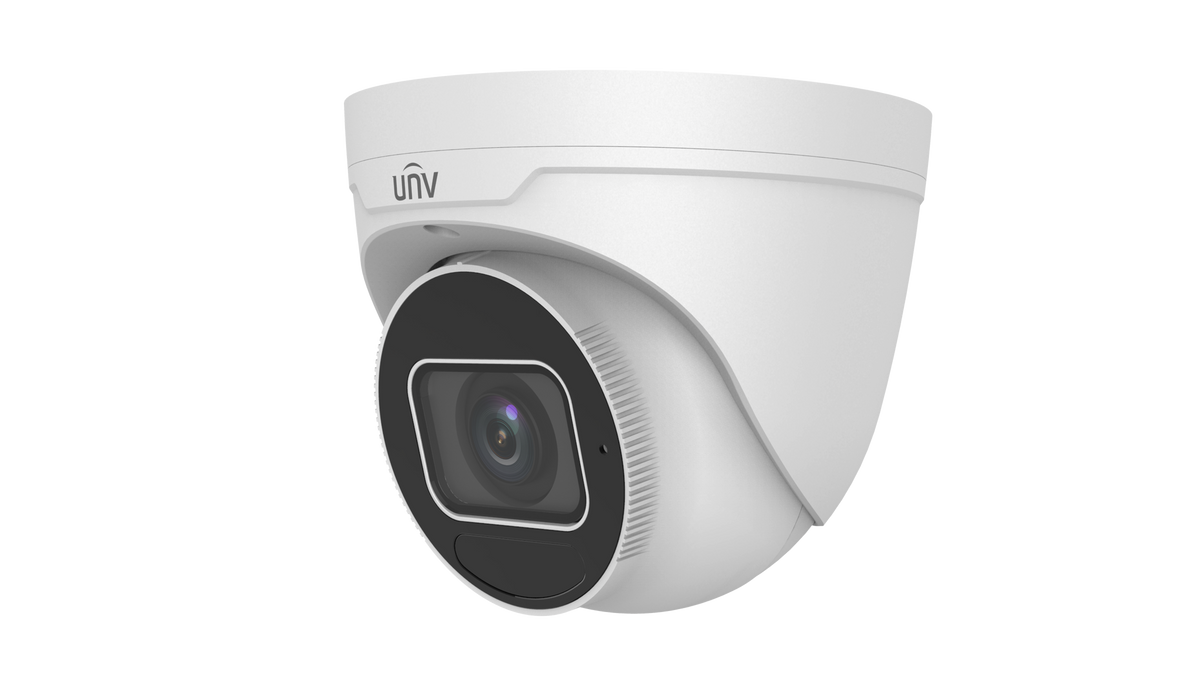

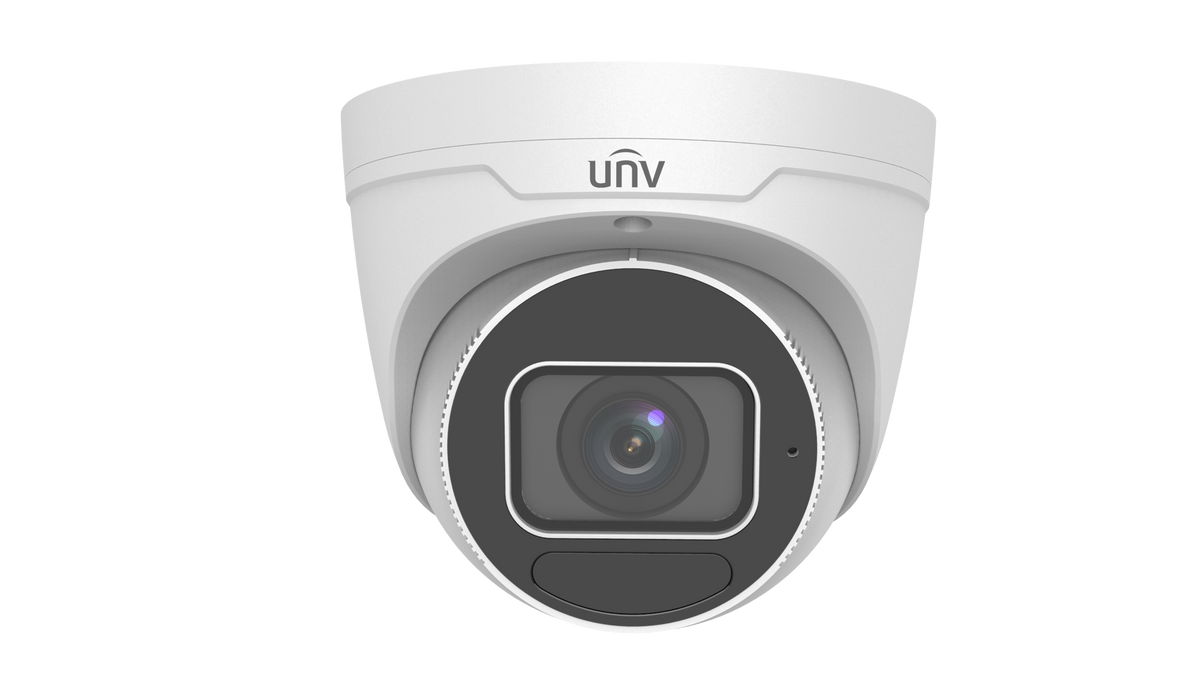

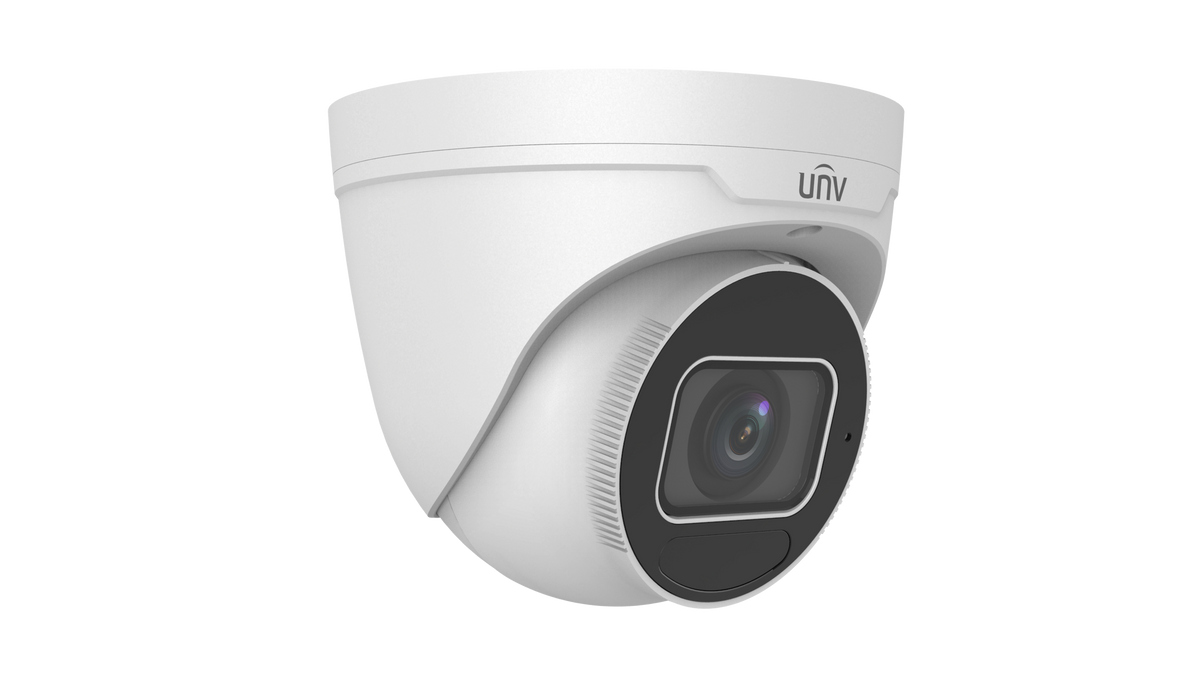

UNV IPC3634SR4-ADZK-H 4MP 2.8–12mm Motorized Varifocal IR Eyeball Network Camera

The UNV IPC3634SR4-ADZK-H is a 4MP NDAA-compliant varifocal eyeball camera with a 2.8–12mm motorized autofocus lens, 120dB true WDR, 40-meter Smart IR, human-based cross-line and intrusion detection, Ultra Motion Detection, built-in microphone, MicroSD edge storage, PoE, IP67 weather protection, and a durable metal housing.

4MP
2688 × 1520
2.8–12mm
Motorized Lens
40m
Smart IR
120dB
True WDR
IP67
Outdoor Rated

Flexible Viewing with Remote Motorized Zoom

The 2.8–12mm autofocus motorized lens lets installers adjust the field of view remotely after mounting. Use the wide end for entrances, rooms, and open areas, or zoom in for narrower views of gates, driveways, loading areas, and distant targets.

Key Features

4MP Video

Captures up to 2688 × 1520 at 25 fps and up to 3MP or 1080p at 30 fps.

2.8–12mm Motorized Lens

Remote autofocus and motorized zoom let you adjust from a wide overview to a tighter view after installation.

40m Smart IR

Integrated 850nm infrared illumination supports night viewing up to approximately 131.2 feet.

120dB True WDR

Balances bright and dark scene areas near entrances, windows, headlights, and backlit locations.

Human-Based Event Filtering

Cross-line and intrusion events can use human-body detection to improve event relevance.

Built-In Microphone

Captures environmental audio for supported recording and audio-detection applications.

MicroSD Edge Recording

The current official product page lists MicroSD support up to 512GB, plus ANR and NAS.

IP67 Metal Housing

Outdoor-rated metal construction with 6kV surge protection supports demanding installations.

Feature Overview

✓ NDAA-compliant 4MP network camera
✓ 1/3.0-inch CMOS sensor
✓ 2.8–12mm autofocus motorized lens
✓ 120dB true WDR
✓ 40m / 131.2ft Smart IR
✓ 9:16 corridor mode
✓ Human-based cross-line and intrusion detection
✓ Ultra Motion Detection
✓ Built-in microphone
✓ Ultra 265 / H.265 / H.264 / MJPEG
✓ Dual-stream support
✓ MicroSD edge recording
✓ ANR and NAS network storage
✓ ONVIF Profiles S/G/T, API, and SDK
✓ PoE IEEE 802.3af or 12V DC
✓ IP67 weather protection
✓ 6kV surge protection
✓ Three-axis adjustment
✓ Metal housing
✓ Reset button

Best Applications

Building Entrances
Parking Areas
Warehouses
Retail Stores
Loading Areas
Commercial Properties

Official Product Specifications

Model IPC3634SR4-ADZK-H
Camera Type 4MP HD WDR IR varifocal eyeball network camera
NDAA Compliance Yes — listed on Uniview USA’s current NDAA-compliant product list
Image Sensor 1/3.0-inch CMOS
Maximum Resolution 4MP
Minimum Illumination Color: 0.003 lux at F1.6 with AGC on; 0 lux with IR
Day / Night IR-cut filter with automatic switching
Shutter Auto / manual, 1 to 1/100000 second
Adjustment Angle Pan 0°–360° / Tilt 0°–75° / Rotate 0°–360°
Signal-to-Noise Ratio >52dB
Wide Dynamic Range 120dB true WDR
Lens 2.8–12mm autofocus motorized zoom lens, F1.6
Field of View Horizontal 86.3°–35.2° / Vertical 47.1°–17.0° / Diagonal 91.9°–38.6°
DORI — Detect 63.0–270.0m / 206.7–885.8ft
DORI — Observe 25.2–108.0m / 82.7–354.3ft
DORI — Recognize 12.6–54.0m / 41.3–177.2ft
DORI — Identify 6.3–27.0m / 20.7–88.6ft
IR Distance Up to 40m / 131.2ft
IR Wavelength 850nm
Main Stream 4MP 2688 × 1520@25fps; 4MP 2560 × 1440@25fps; 3MP 2304 × 1296@30fps; 1080p@30fps; 720p@30fps
Sub Stream 720p@30fps; D1@30fps; 640 × 360@30fps
Video Compression Ultra 265, H.265, H.264, MJPEG
Video Bitrate 128Kbps to 6144Kbps
Video Streams Dual streams
OSD / Privacy / ROI Up to 4 OSDs, up to 4 privacy masks, up to 8 ROI areas
Image Processing 2D/3D DNR, Smart IR, HLC, BLC, digital defog, image flip
Corridor Mode 9:16 corridor mode supported
Basic Events Motion, Ultra Motion Detection, tampering, audio detection, cross-line and intrusion based on human-body detection
Audio Compression G.711U, G.711A
Built-In Microphone Yes
Two-Way Audio No
Audio I/O None
Alarm I/O None
Edge Storage Current official product page: MicroSD up to 512GB
Network Storage ANR and NAS (NFS)
Integration ONVIF Profiles S, G, T; API; SDK
Users Up to 32 users
Network Interface 1 × RJ45 10/100BASE-TX Ethernet
Power 12V DC ±25% or PoE IEEE 802.3af
Maximum Power Consumption 7.5W
Dimensions Ø129 × 110mm / Ø5.1 × 4.3in
Weight 0.66kg / 1.46lb
Material Metal
Operating Environment -30°C to 60°C / -22°F to 140°F; ≤95% RH non-condensing
Protection IP67 and 6kV surge protection
Reset Button Supported
Compatible Accessories TR-A01-IN, TR-UP06-IN, TR-SE24-IN, TR-SE24-A-IN, TR-CM24-IN, TR-JB03-H-IN, TR-WM03-B-IN, TR-UP06-C-IN-V2, TR-UC08-C-V2, TR-JB07/WM03-F-IN-V2, TR-WM03-B-IN-V2, TR-JB03-H-IN-V2

Third-Party Recorder Compatibility

Third-party integration may require manual configuration. ONVIF support does not guarantee access to every feature. Motorized zoom, autofocus, UMD, human-based events, audio, edge storage, smart search, and firmware management may be limited depending on the recorder, VMS, firmware, codec, and stream settings.

Installation Recommendation

Mount the camera first, then use the motorized lens to fine-tune the field of view and focus. Confirm target distance, IR reflection, mounting angle, cable weatherproofing, PoE budget, MicroSD access, audio requirements, and recorder compatibility. Keep nearby walls, ceilings, glass, and reflective surfaces outside the direct IR path.

3-Year UNV Manufacturer Warranty

This product includes a three-year UNV manufacturer equipment warranty when purchased through NSI Security, subject to applicable warranty terms, eligibility, exclusions, serial-number verification, and return procedures.

Note: Specifications, MicroSD capacity, event behavior, audio functions, motorized-lens control, image quality, IR distance, ONVIF support, accessories, and NDAA status may vary with firmware, recorder, VMS, lighting, network configuration, stream settings, and installation conditions. The current official web page lists MicroSD support up to 512GB, while an older official PDF lists 256GB. Verify the current product page and compatible-card list before ordering.

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
