NDAA Compliant 4MP LightHunter Cable-Free Dome Camera

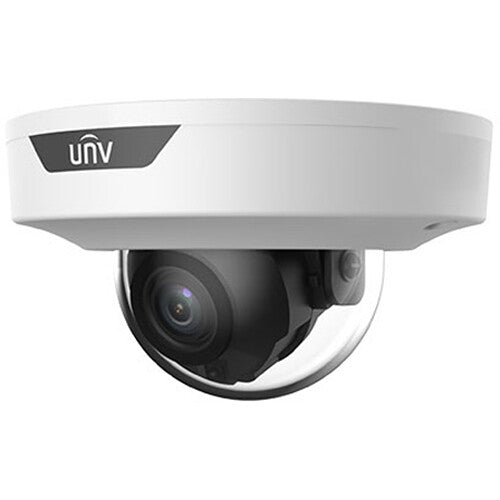

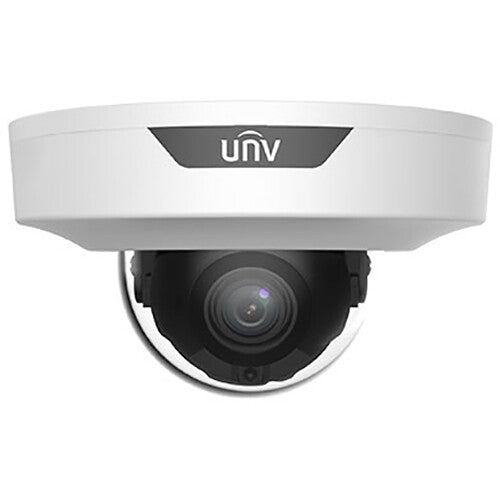

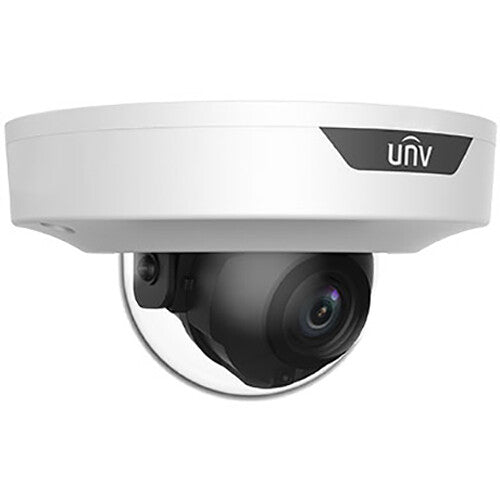

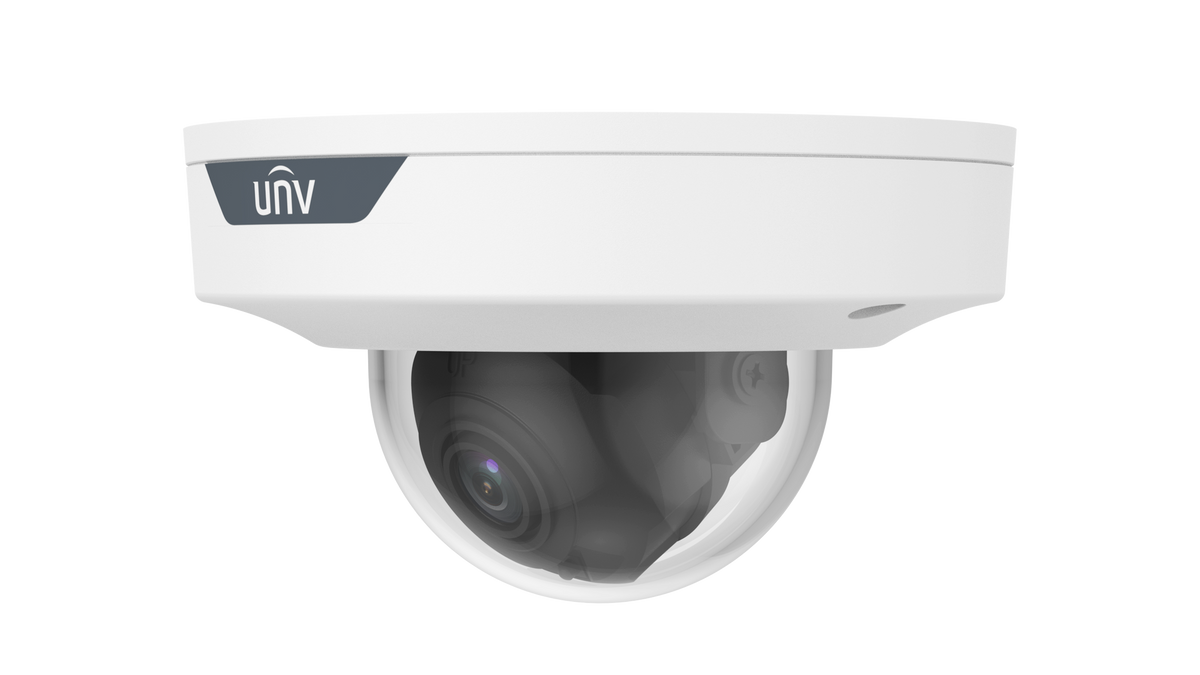

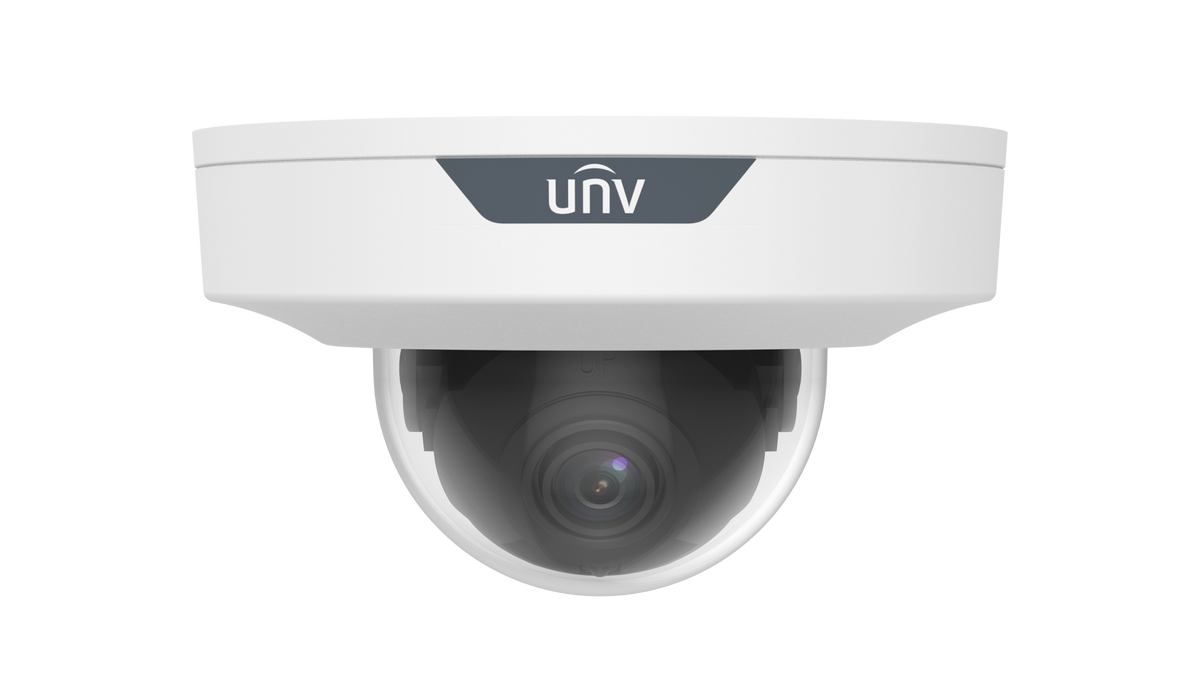

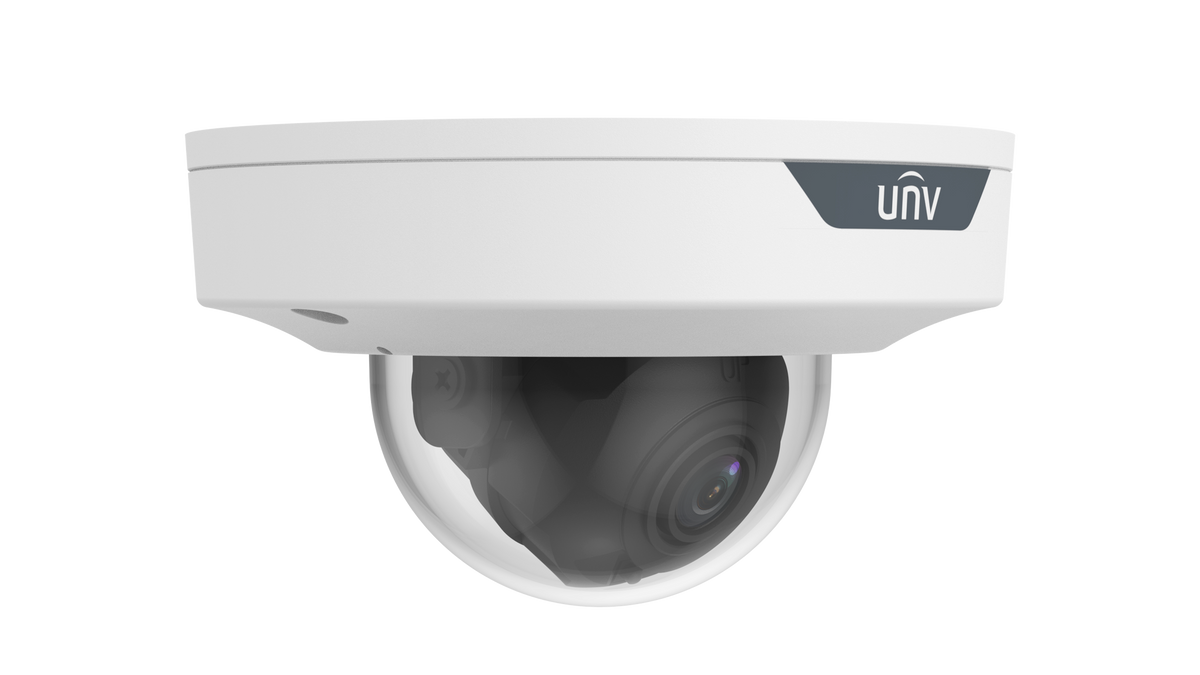

UNV IPC354SB-ADNF28K-I0 4MP LightHunter Cable-Free IR Dome Network Camera

The UNV IPC354SB-ADNF28K-I0 is a 4MP NDAA-compliant LightHunter fixed dome camera with 120dB true WDR, smart intrusion prevention, people counting, Ultra Motion Detection, built-in microphone, two-way audio, audio and alarm I/O, 30-meter Smart IR, MicroSD edge storage, and PoE. Because this model uses a cable-free, pigtail-free connection design and has no official IP weather-protection rating, NSI Security recommends it for indoor applications only.

4MP
2688 × 1520
NDAA
Compliant
30m
Smart IR
Cable-Free
Indoor Recommended
512GB
Current MicroSD Listing

Installation Recommendation — Indoor Use Only

This camera features a cable-free, pigtail-free design and is not recommended for outdoor applications. The official Uniview datasheet does not list an IP or IK environmental-protection rating for this model. The direct connection design also makes outdoor cable weatherproofing more difficult and may expose the network or power connection to moisture if it is not completely enclosed.

For indoor installations, the cable-free design provides a cleaner appearance and simpler cable management. For outdoor applications, NSI Security recommends selecting a camera with a traditional waterproof pigtail and a clearly stated IP67 weather rating.

Professional Indoor Dome with Smart Analytics

This low-profile dome is well suited for offices, retail stores, hallways, lobbies, schools, reception areas, and other indoor locations that need detailed 4MP video, wide-angle coverage, audio recording, local storage, and intelligent event filtering.

Key Features

4MP Video at 30 FPS

Captures up to 2688 × 1520 resolution at up to 30 frames per second.

LightHunter Low-Light Imaging

A 1/2.7-inch CMOS sensor and 0.003-lux color sensitivity help preserve useful image detail in dim environments.

Smart Intrusion Prevention

Supports cross-line, intrusion, enter-area, and leave-area detection with human, vehicle, and non-motor-vehicle classification.

120dB True WDR

Balances bright and dark areas near windows, entrances, headlights, and strongly backlit scenes.

30m Smart IR

Integrated 850nm infrared illumination supports nighttime viewing up to approximately 98.4 feet.

Built-In Microphone

Captures environmental audio and supports two-way audio through the external audio input and output.

MicroSD Up to 512GB

The current official product page lists MicroSD storage up to 512GB, plus ANR and NAS support.

Cable-Free Connection Design

The cable-free, pigtail-free design provides a cleaner indoor installation with direct access to the connection interface.

Feature Overview

✓ NDAA-compliant 4MP fixed dome camera
✓ 1/2.7-inch CMOS image sensor
✓ 4MP video at up to 30fps
✓ 2.8mm F1.6 fixed lens
✓ 101.1-degree horizontal field of view
✓ LightHunter low-light imaging
✓ 120dB true WDR
✓ 30m / 98.4ft Smart IR
✓ Smart intrusion prevention with classification
✓ People-flow counting and crowd-density detection
✓ Ultra Motion Detection
✓ 9:16 corridor mode
✓ Ultra 265 / H.265 / H.264 / MJPEG
✓ Triple-stream support
✓ Built-in microphone
✓ Two-way audio with audio I/O
✓ Alarm input and output
✓ MicroSD edge storage
✓ ONVIF Profiles S/G/T/M, API, and SDK
✓ Cable-free / pigtail-free indoor design

Best Applications

Retail Stores
Office Interiors
Hallways
Schools
Reception Areas
Indoor Commercial Spaces

Official Product Specifications

Model IPC354SB-ADNF28K-I0
Camera Type 4MP LightHunter cable-free fixed IR dome network camera
Recommended Application Indoor use recommended — pigtail-free connection design is not recommended for outdoor applications
NDAA Compliance Yes — listed on Uniview USA’s current NDAA-compliant product list
Image Sensor 1/2.7-inch CMOS
Maximum Resolution 4MP
Minimum Illumination Color: 0.003 lux at F1.6 with AGC on; 0 lux with IR
Day / Night IR-cut filter with automatic switching
Shutter Auto / manual, 1 to 1/100000 second
Adjustment Angle Pan 3°–360° / Tilt 0°–68° / Rotate 3°–360°
Signal-to-Noise Ratio >52dB
Wide Dynamic Range 120dB true WDR
Lens 2.8mm fixed lens, F1.6
Field of View Horizontal 101.1° / Vertical 55.3° / Diagonal 111.1°
DORI — Detect 63.0m / 206.7ft
DORI — Observe 25.2m / 82.7ft
DORI — Recognize 12.6m / 41.3ft
DORI — Identify 6.3m / 20.7ft
IR Distance Up to 30m / 98.4ft
IR Wavelength 850nm
Main Stream 4MP 2688 × 1520@30fps; 4MP 2560 × 1440@30fps; 3MP 2304 × 1296@30fps; 1080p@30fps
Sub Stream 720p@30fps; D1@30fps; 640 × 360@30fps; 2CIF@30fps; CIF@30fps
Third Stream D1@30fps; 640 × 360@30fps; 2CIF@30fps; CIF@30fps
Video Compression Ultra 265, H.265, H.264, MJPEG
Video Bitrate 128Kbps to 16Mbps
Video Streams Triple streams
OSD / Privacy / ROI Up to 8 OSDs, up to 4 privacy-mask areas, ROI supported
Image Processing 2D/3D DNR, Smart IR, HLC, BLC, digital defog, image flip
Corridor Mode 9:16 corridor mode supported
Smart Intrusion Prevention Cross-line, intrusion, enter-area, leave-area; false-alarm filtering and human / non-motor-vehicle / vehicle classification
People Counting People-flow counting and crowd-density detection
Basic Events Motion detection, Ultra Motion Detection, tampering alarm, audio detection
Audio Compression G.711U, G.711A, AAC-LC
Two-Way Audio Supported
Built-In Microphone Yes
Built-In Speaker No
Audio I/O 1 input / 1 output
Alarm I/O 1 input / 1 output
Edge Storage Current official product page: MicroSD up to 512GB
Network Storage ANR and NAS (NFS)
Integration ONVIF Profiles S, G, T, M; API; SDK
Users Up to 32 users
Network Interface 1 × RJ45 10/100BASE-TX Ethernet
Power 12V DC ±25% or PoE IEEE 802.3af
Maximum Power Consumption 4.5W
Power Interface Cable-free / pigtail-free
Dimensions Ø109 × 62mm / Ø4.3 × 2.4in
Weight 0.22kg / 0.49lb
Material Metal + plastic
Operating Environment -30°C to 55°C / -22°F to 131°F; ≤95% RH non-condensing
Environmental Protection Rating No IP or IK rating listed in the official datasheet
Surge Protection 4kV
Reset Button Supported
Compatible Accessories TR-JB03-G-IN, TR-JB07/WM03-G-IN, TR-WM03-D-IN, TR-UM06-E-IN, TR-UP06-IN, TR-A01-IN

MicroSD Capacity Note

The current official Uniview product page lists MicroSD support up to 512GB, while the older official datasheet lists 256GB. Verify the installed firmware and current compatible-card list before purchasing a memory card.

Third-Party Recorder Compatibility

Third-party integration may require manual configuration. ONVIF support does not guarantee every advanced feature. Smart analytics, people counting, UMD, audio, alarm I/O, corridor mode, event search, and firmware management may be limited depending on the recorder, VMS, firmware, codec, and stream settings.

3-Year UNV Manufacturer Warranty

This product includes a three-year UNV manufacturer equipment warranty when purchased through NSI Security, subject to applicable warranty terms, eligibility, exclusions, serial-number verification, and return procedures.

Note: Specifications, MicroSD capacity, event behavior, audio functions, image quality, IR distance, ONVIF support, accessories, and NDAA status may vary with firmware, recorder, VMS, lighting, network configuration, stream settings, and installation conditions. This cable-free model has no official IP weather rating and is recommended for indoor applications only. Verify the latest official Uniview documentation before ordering.

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
