Unview IPC3635SS-ADF28K-I1 5MP LightHunter Fixed IR Turret Network Camera
In Stock

Uniview

Unview IPC3635SS-ADF28K-I1 5MP LightHunter Fixed IR Turret Network Camera

SKU: IPC3635SS-ADF28K-I1

$619.00
Secure CheckoutProtected payment processing
U.S. SupportProfessional product guidance
Fast FulfillmentU.S. warehouse order processing
30-Day Eligible ReturnsUnused items with approved RMA
Need project pricing? Request a private quote for larger or special orders. Request Project Pricing

Your request is reviewed privately. Approved project pricing is provided through a private quote or Shopify Draft Order.

Need compatibility help? Call (856) 317-0600 for professional assistance.
Overview Resources & Support Compatibility Solution Builder Specifications
Product overview

Reliable Security Performance

Designed to deliver dependable video surveillance with features and performance that vary by model, firmware, environment, and system configuration.

Professional Quality

Designed for demanding surveillance and networking environments.

System Compatibility

Use the compatibility tools below to select supported components.

Technical Support

Get assistance with configuration, installation and product selection.

Secure Purchasing

U.S.-based fulfillment and protected checkout.

Product assistance

Need Assistance?

Documentation, system compatibility tools, shipping information, and direct support from NSI Security.

Shipping InformationU.S. fulfillment

Processing times, delivery estimates, signature requirements, and shipping limitations vary by order and destination.

View Shipping Policy →
DocumentationBy request

Review current datasheets, manuals, firmware notes, and manufacturer documentation before ordering or installation.

Request Documentation →
Technical SupportNSI assistance

Get product selection, compatibility, configuration, and basic troubleshooting assistance from NSI Security.

Contact Support →
Verified System ComponentsProduct-specific compatibility

Review product-specific cameras, recorders, cable, networking, storage, power, and accessories assigned to work with this item.

View Components →
RMA RequestAfter-purchase assistance

Request return authorization, repair evaluation, or replacement assistance for an eligible order.

Start RMA Request →
Contact Our TeamSales and product questions

Contact NSI Security for product selection, availability, compatibility, and order assistance.

Contact NSI Security →
System compatibility

Verified System Components

Product-specific components selected for a more confident system configuration. Only populated categories are displayed.

One-click system configuration

Build Your Complete Solution

Select the components you need and add the complete configuration to your cart.

Compatible Recorders

Storage

PoE Switches

Product information

Product Details & Technical Specifications

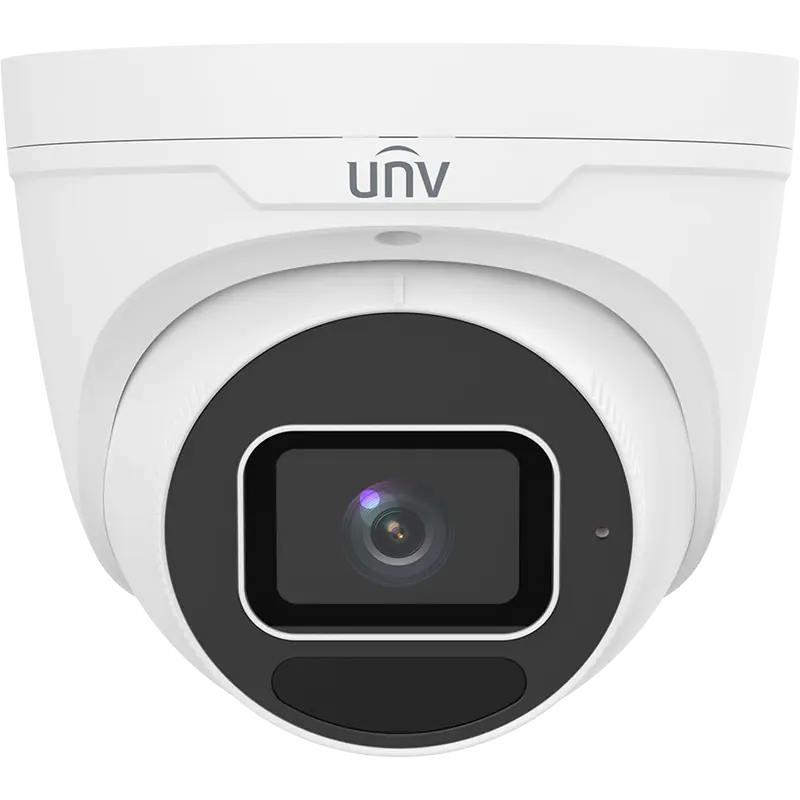

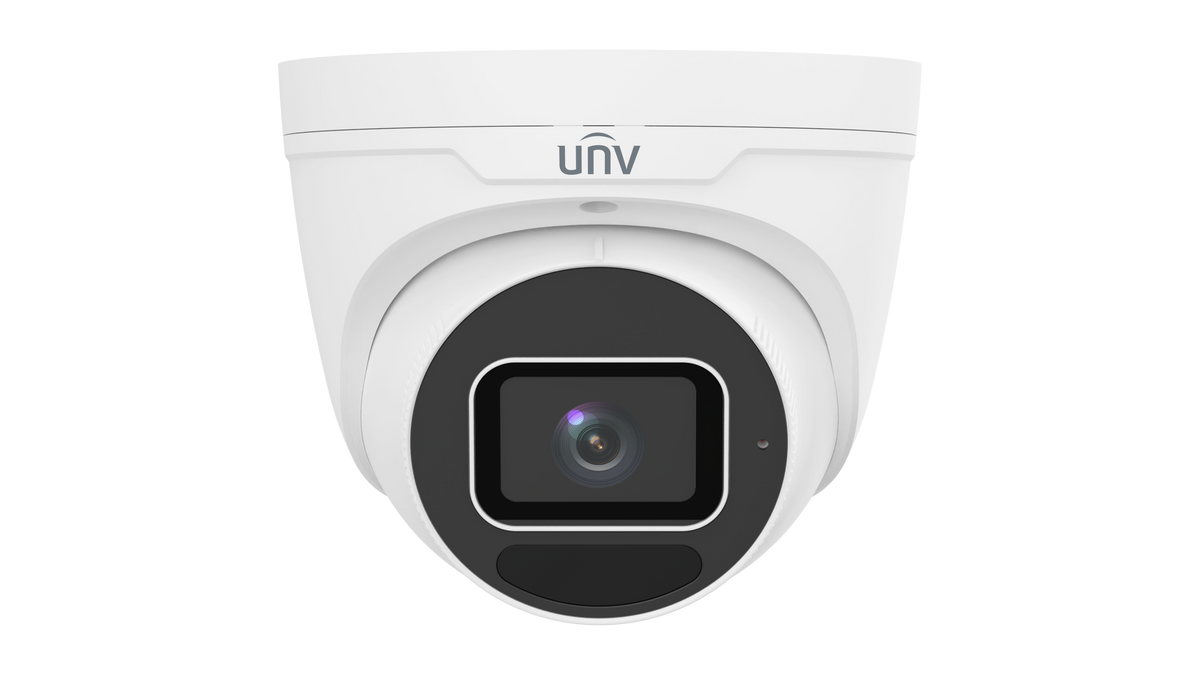

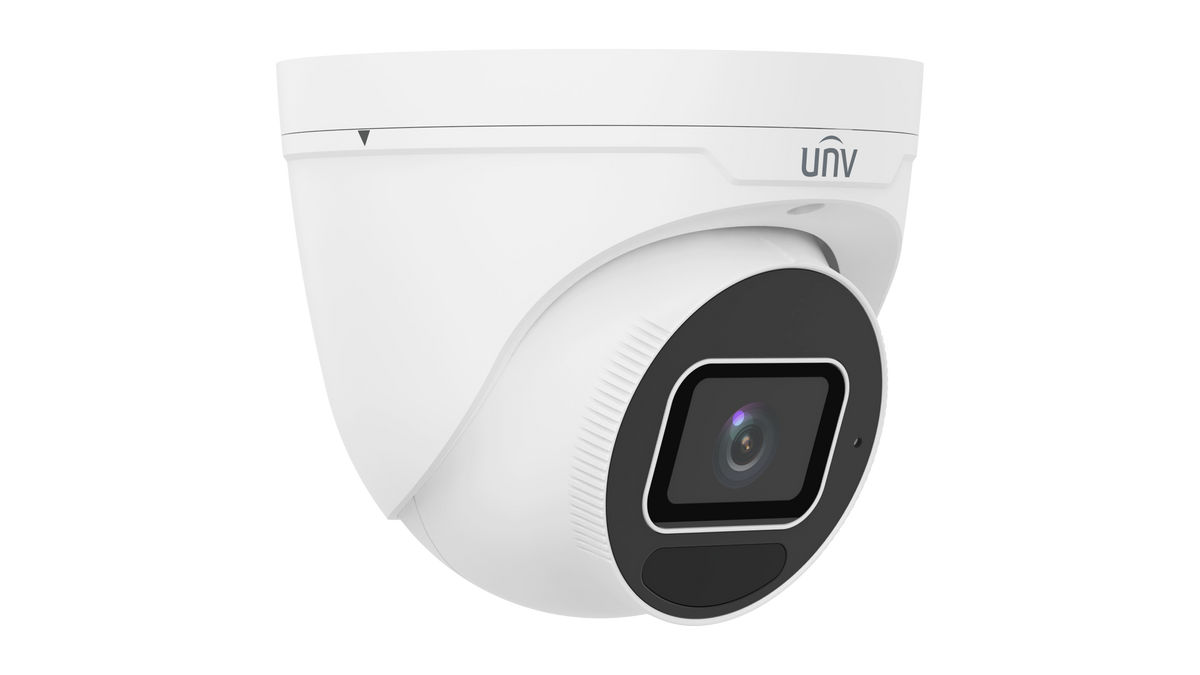

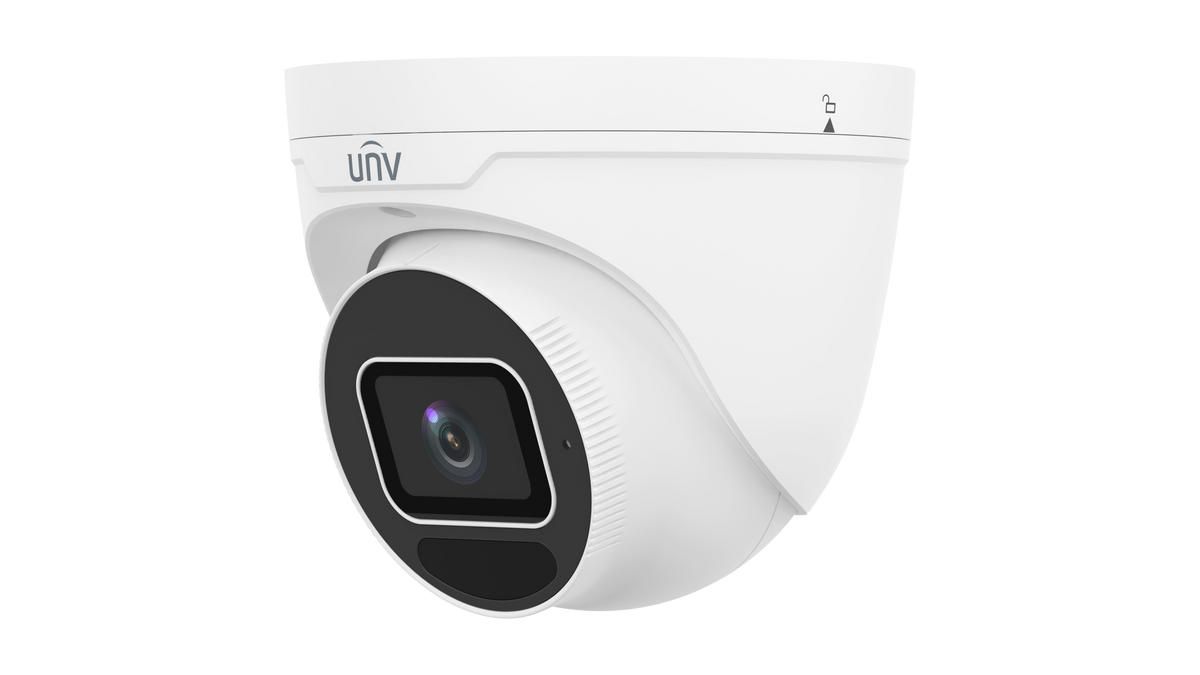

Uniview IPC3635SS-ADF28K-I1 5MP LightHunter IR Turret Network Camera

The Uniview IPC3635SS-ADF28K-I1 is a professional 5MP LightHunter fixed IR turret network camera designed to deliver detailed video and reliable intelligent surveillance in indoor and outdoor environments. Its 1/2.7" CMOS sensor, 2.8mm fixed lens, and LightHunter low-light technology provide clear image performance in challenging lighting conditions.

Featuring 130 dB true WDR, Smart IR illumination up to 40m (131 ft), intelligent perimeter protection, target classification, people-flow counting, crowd-density monitoring, built-in audio, alarm I/O, and IP67 weather protection, this camera is well suited for commercial, retail, educational, and industrial security installations.

Key Features

  • 5MP fixed IR turret/eyeball network camera
  • 1/2.7" progressive scan CMOS image sensor
  • Maximum resolution of 2880 × 1620 at up to 30 fps
  • 2.8mm fixed lens with F1.6 aperture
  • LightHunter technology for enhanced low-light image quality
  • 130 dB true WDR for challenging backlight conditions
  • Smart IR illumination with up to 40m (131 ft) range
  • Smart intrusion prevention with target classification
  • Human, motor vehicle, and non-motor vehicle classification
  • Cross-line, intrusion, enter-area, and leave-area detection
  • Intelligent people-flow counting and crowd-density monitoring
  • Smart intrusion prevention with color retrieval
  • Auto Scene Match (ASM) support in WDR mode
  • Built-in microphone with two-way audio support
  • 1 alarm input and 1 alarm output
  • Ultra 265, H.265, H.264, and MJPEG video compression
  • Supports 9:16 corridor mode
  • MicroSD edge storage support up to 512GB
  • 12V DC and PoE IEEE 802.3af power options
  • IP67 weatherproof protection

Specifications

Model IPC3635SS-ADF28K-I1
Camera Type 5MP LightHunter Fixed IR Turret/Eyeball Network Camera
Image Sensor 1/2.7" 5MP Progressive Scan CMOS
Maximum Resolution 2880 × 1620
Maximum Frame Rate Up to 30 fps at 2880 × 1620
Lens 2.8mm Fixed Lens, F1.6
Field of View Horizontal: 110.71°; Vertical: 56.39°; Diagonal: 114.11°
Minimum Illumination Color: 0.002 Lux (F1.6, AGC On); 0 Lux with IR On
Low-Light Technology LightHunter
Wide Dynamic Range 130 dB True WDR
IR Distance Up to 40m (131 ft)
Video Compression Ultra 265, H.265, H.264, MJPEG
Smart Intrusion Prevention Cross Line, Intrusion, Enter Area, and Leave Area Detection
Target Classification Human, Motor Vehicle, and Non-Motor Vehicle
People Analytics People-Flow Counting and Crowd-Density Monitoring
Built-in Microphone Yes
Audio I/O 1 Audio Input / 1 Audio Output
Alarm I/O 1 Alarm Input / 1 Alarm Output
Edge Storage MicroSD Card Support, Up to 512GB
Network Interface 1 × RJ45 10/100 Mbps Ethernet Port
Power Supply 12V DC ±25% or PoE IEEE 802.3af
Maximum Power Consumption 6.0W
Protection Rating IP67
Operating Temperature -30°C to 60°C (-22°F to 140°F)
Dimensions Ø129 × 110mm (Ø5.1 × 4.3 in)
Weight 0.66kg (1.45 lb)
Housing Material Metal

Ideal Applications

  • Retail stores and shopping centers
  • Office buildings and commercial entrances
  • Schools and educational facilities
  • Warehouses and industrial locations
  • Hotels and apartment buildings
  • Indoor and outdoor commercial surveillance
  • Areas requiring people counting and crowd monitoring

```

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
