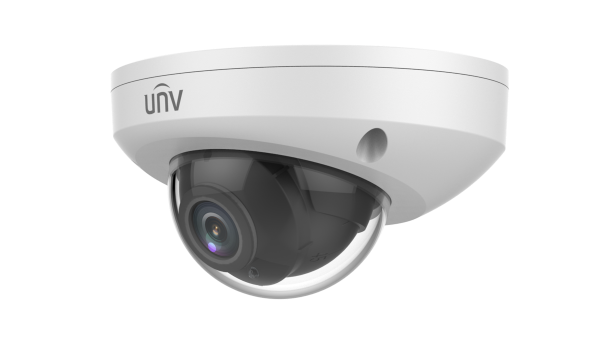

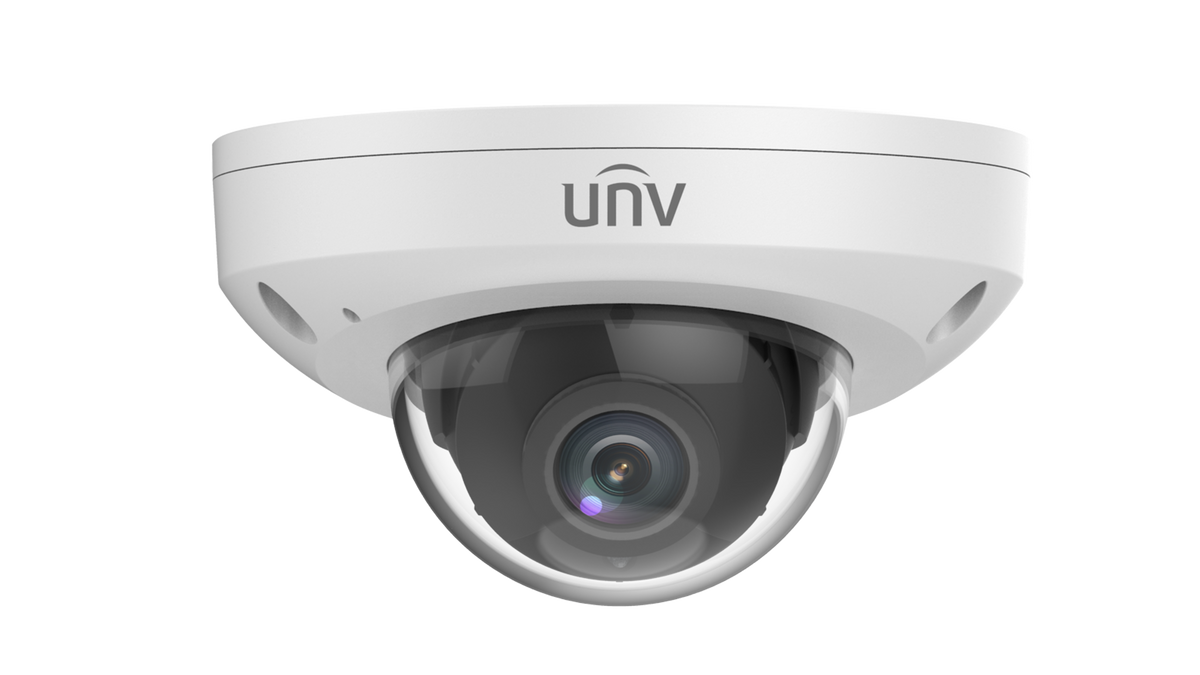

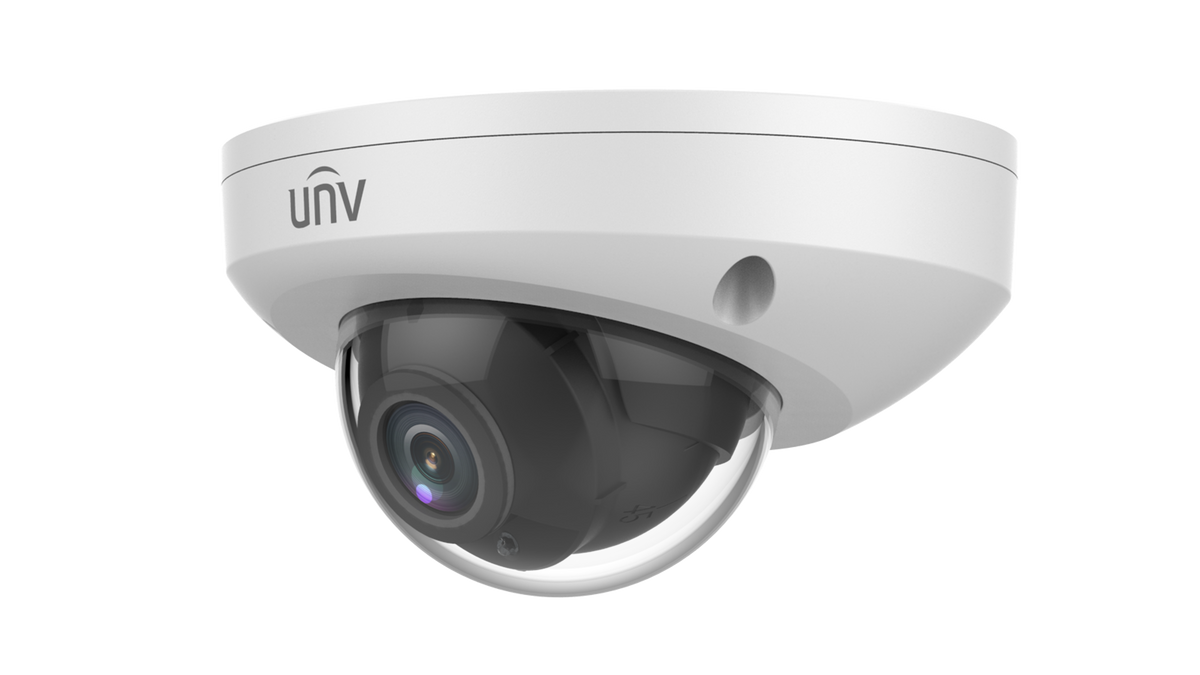

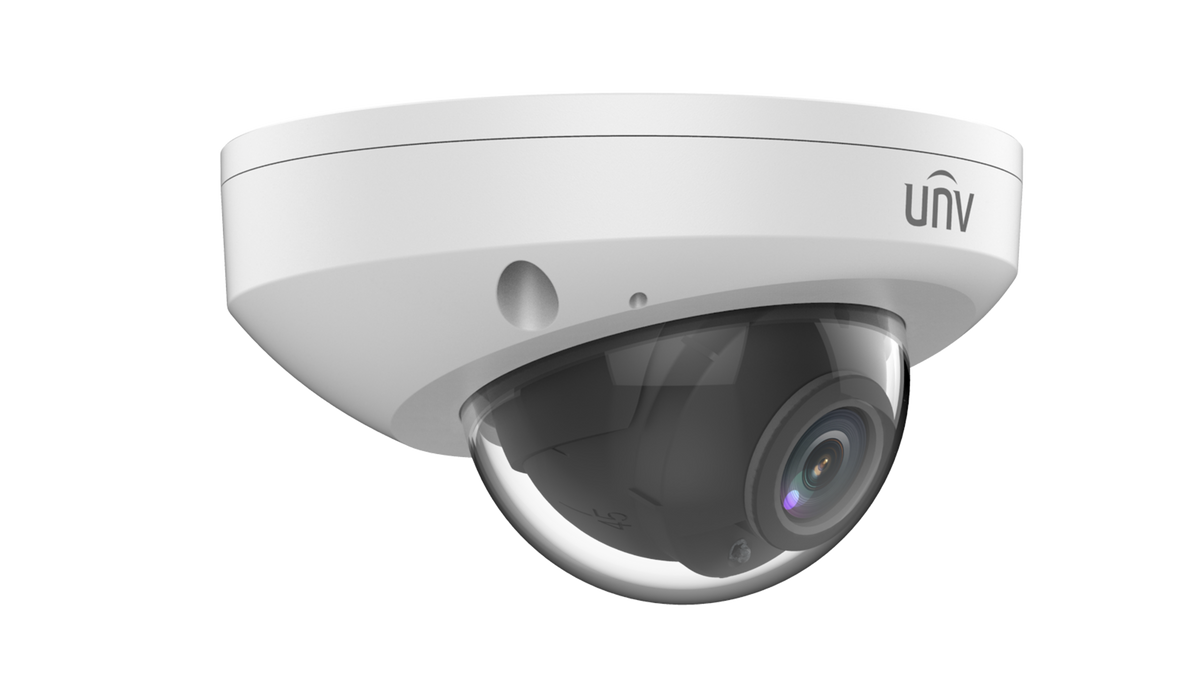

Uniview IPC314SB-ADF28K-I0 4MP LightHunter IR Fixed Mini Dome Network Camera

The Uniview IPC314SB-ADF28K-I0 is a professional 4MP fixed mini dome network camera designed for reliable indoor and outdoor surveillance. Featuring Uniview LightHunter technology, 120 dB true WDR, Smart IR illumination, and intelligent target classification, this camera delivers clear and detailed video in low-light and challenging lighting environments.

The camera includes a 2.8mm fixed lens, built-in microphone, intelligent intrusion prevention, MicroSD edge storage, and durable IP67 weatherproof and IK10 vandal-resistant protection. It is an excellent solution for retail stores, offices, schools, warehouses, building entrances, and other commercial security applications.

Key Features

  • 4MP fixed IR mini dome network camera
  • 1/3" progressive scan CMOS image sensor
  • Maximum resolution of 2688 × 1520 at up to 30 fps
  • 2.8mm fixed lens with F1.6 aperture
  • LightHunter technology for enhanced low-light image quality
  • 120 dB true WDR for challenging lighting conditions
  • Smart IR illumination with up to 30m (98.4 ft) range
  • Built-in microphone for audio monitoring
  • Smart intrusion prevention with target classification
  • Human, motor vehicle, and non-motor vehicle classification
  • Cross-line, intrusion, enter-area, and leave-area detection
  • Ultra 265, H.265, H.264, and MJPEG video compression
  • Supports 9:16 corridor mode
  • MicroSD edge storage support up to 512GB
  • IP67 weatherproof and IK10 vandal-resistant protection
  • 12V DC and PoE IEEE 802.3af power options
  • 3-axis adjustment for flexible installation

Specifications

Model IPC314SB-ADF28K-I0
Camera Type 4MP LightHunter IR Fixed Mini Dome Network Camera
Image Sensor 1/3" 4MP Progressive Scan CMOS
Maximum Resolution 2688 × 1520
Maximum Frame Rate Up to 30 fps at 2688 × 1520
Lens 2.8mm Fixed Lens, F1.6
Field of View Horizontal: 101.1°; Vertical: 55.3°; Diagonal: 111.1°
Minimum Illumination Color: 0.002 Lux (F1.6, AGC On); 0 Lux with IR On
Low-Light Technology LightHunter
Wide Dynamic Range 120 dB True WDR
IR Distance Up to 30m (98.4 ft)
Video Compression Ultra 265, H.265, H.264, MJPEG
Smart Intrusion Prevention Cross Line, Intrusion, Enter Area, and Leave Area Detection
Target Classification Human, Motor Vehicle, and Non-Motor Vehicle
Built-in Microphone Yes
Audio I/O 1 Audio Input / 1 Audio Output
Edge Storage MicroSD Card Support, Up to 512GB
Network Interface 1 × RJ45 10/100 Mbps Ethernet Port
Power Supply 12V DC ±25% or PoE IEEE 802.3af
Maximum Power Consumption 6.0W
Protection Rating IP67 / IK10
Operating Temperature -30°C to 60°C (-22°F to 140°F)
Dimensions Ø110 × 61 mm (Ø4.3 × 2.4 in)
Weight 0.37 kg (0.82 lb)
Housing Material Metal

Ideal Applications

  • Retail stores and shopping centers
  • Office buildings and commercial entrances
  • Schools and educational facilities
  • Warehouses and industrial locations
  • Hotels and apartment buildings
  • Indoor and outdoor commercial surveillance

```

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
