NDAA Compliant 8MP OmniView Wide-Angle Bullet Network Camera

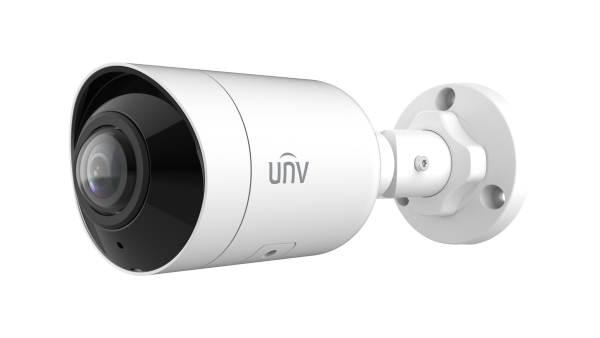

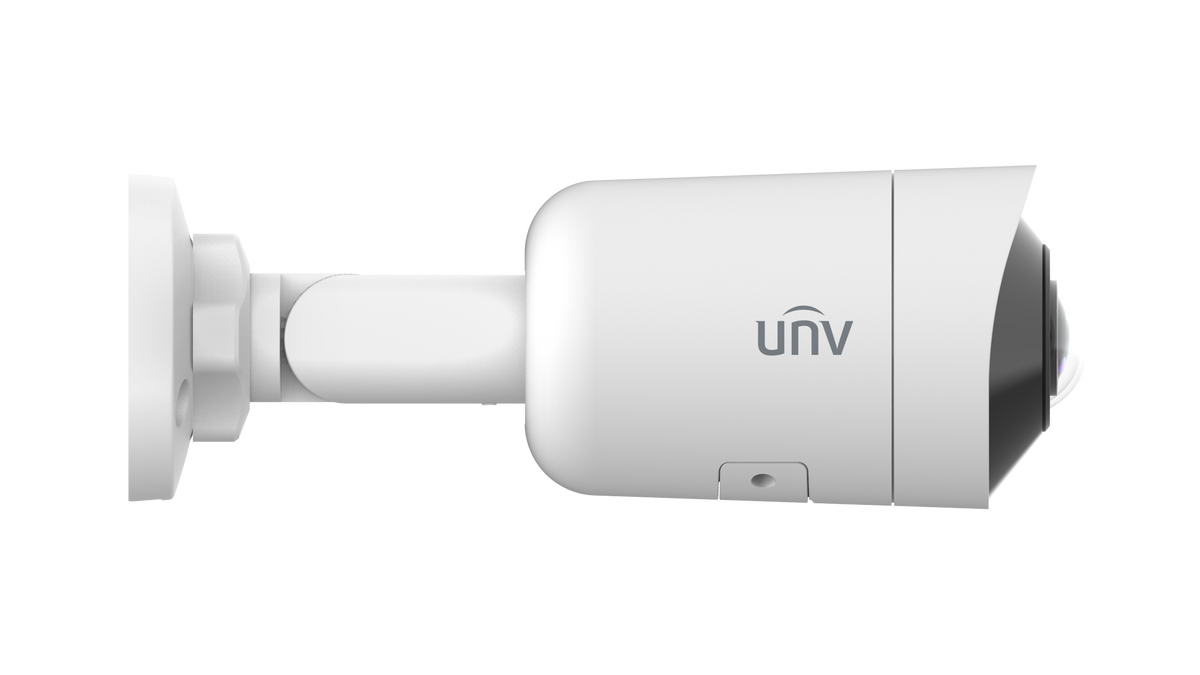

UNV IPC2108SB-ADF16KM-I0 8MP OmniView Fixed IR Bullet Network Camera

The UNV IPC2108SB-ADF16KM-I0 is an 8MP NDAA-compliant OmniView fixed IR bullet network camera designed for ultra-wide surveillance coverage. With a 1/2.7" CMOS sensor, 1.68mm fixed lens, 180° horizontal field of view, dewarping support, 120dB true WDR, Smart IR night vision, built-in microphone, MicroSD card support, PoE power, ONVIF integration support, and IP67 outdoor protection, this camera is a strong choice for wide-area commercial security applications.

8MP
4K Image
NDAA
Compliant
180°
Wide View
120dB
True WDR
IP67
Outdoor Rated

180° Wide-Angle Coverage with NDAA Compliance

The IPC2108SB-ADF16KM-I0 is ideal when a single camera needs to cover a wide scene. Its 180° horizontal field of view can help reduce blind spots and may reduce the number of cameras needed for certain entrances, storefronts, hallways, parking areas, warehouses, and open commercial spaces.

Key Features

📷

8MP 4K Image

Captures high-resolution 8MP video for detailed wide-area surveillance coverage.

🛡️

NDAA Compliant

Suitable for projects requiring NDAA-compliant security equipment when verified with current manufacturer documentation.

↔️

180° OmniView Coverage

Wide-angle technology provides a 180° horizontal view for larger scene coverage.

🖥️

Dewarping Support

Dewarp level can be adjusted to help improve the viewing experience for wide-angle images.

🔆

120dB True WDR

Helps balance bright and dark areas for clearer images in challenging lighting scenes.

🔦

Smart IR Night Vision

Smart IR supports night visibility up to 20m / 65.6ft depending on scene conditions.

🎙️

Built-In Microphone

Supports audio recording when used with compatible recorder, software, settings, and local regulations.

🔗

ONVIF Integration Support

Supports third-party integration through ONVIF profiles, depending on recorder compatibility and firmware support.

🌧️

IP67 Outdoor Protection

Weather-rated metal housing supports outdoor installation when properly mounted and sealed.

Feature Overview

✓ NDAA compliant / NDAA supported security camera
✓ 8MP OmniView fixed IR bullet network camera
✓ 1/2.7" CMOS image sensor
✓ 1.68mm fixed wide-angle lens
✓ 180° horizontal field of view
✓ Dewarping support with configurable dewarp level
✓ 120dB true WDR
✓ Smart IR up to 20m / 65.6ft
✓ Ultra 265 / H.265 / H.264 / MJPEG
✓ Triple stream support
✓ Third-party recorder integration flexibility
✓ ONVIF Profile S / G / T / M, API, and SDK support
✓ Smart intrusion prevention with target classification
✓ Built-in microphone
✓ MicroSD card support up to 512GB
✓ DC 12V and PoE power support
✓ IP67 weather protection
✓ Metal housing with reset button support

Best Applications

Storefronts
Wide Entrances
Hallways
Warehouses
Parking Areas
Public-Sector Projects

Product Highlights

The IPC2108SB-ADF16KM-I0 supports multiple main stream, sub stream, and third stream resolution options. This is helpful for third-party recorder integration because some non-UNV recorders may not support the camera’s full 8MP output, full frame rate, codec, ONVIF profile, dewarping behavior, or stream profile. If a third-party recorder cannot display or record the full-resolution stream properly, the camera may need to be adjusted to a lower supported resolution, FPS, compression format, or stream setting for better compatibility.

Model IPC2108SB-ADF16KM-I0
Camera Type 8MP OmniView Fixed IR Bullet Network Camera
NDAA Compliance NDAA compliant / NDAA supported. Please verify current manufacturer documentation before ordering for government, public-sector, or compliance-sensitive projects.
Image Sensor 1/2.7" CMOS
Resolution 8MP / 4K
Main Stream 8MP 3840 × 2160, max 30fps
5MP 3072 × 1728, max 30fps
4MP 2560 × 1440, max 30fps
1080P 1920 × 1080, max 30fps
Sub Stream 720P 1280 × 720, max 30fps
D1 720 × 576, max 30fps
640 × 360, max 30fps
2CIF 704 × 288, max 30fps
CIF 352 × 288, max 30fps
Third Stream D1 720 × 576, max 30fps
640 × 360, max 30fps
2CIF 704 × 288, max 30fps
CIF 352 × 288, max 30fps
Third-Party Recorder Integration Third-party recorder compatibility is commonly affected by ONVIF profile support, firmware version, codec support, camera resolution, frame rate, dewarping behavior, and stream profile settings. If a third-party recorder cannot display or record the full 8MP stream properly, the camera may need to be adjusted to a lower supported resolution, FPS, compression format, or stream setting.
Compatible Integration API, SDK, ONVIF Profile S / Profile G / Profile T / Profile M
Video Compression Ultra 265 / H.265 / H.264 / MJPEG
Video Bit Rate 128 Kbps to 16 Mbps
Video Stream Triple Streams
Wide-Angle / Dewarping 180° wide-angle view with dewarping support; dewarp level configurable from 1 to 9
Low-Light Technology Low-light imaging with Smart IR
Minimum Illumination Color: 0.01 Lux, 0 Lux with IR on
Wide Dynamic Range 120dB True WDR
Lens 1.68mm Fixed Lens, F2.0
Field of View Horizontal 180°
Vertical 100°
Diagonal 180°
DORI Distance Detect: 37.8m / 124.0ft
Observe: 15.1m / 49.6ft
Recognize: 7.6m / 24.9ft
Identify: 3.8m / 12.5ft
IR Distance Smart IR up to 20m / 65.6ft
Audio Built-In Microphone
Smart / Event Features Smart Intrusion Prevention, Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection, Human / Vehicle / Non-Motor Vehicle Classification, Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind
Storage MicroSD Card Support up to 512GB; ANR; NAS (NFS)
Network 1 × RJ45 10M/100M Base-TX Ethernet
Power DC 12V ±25% / PoE IEEE 802.3af, max 5.5W
Dimensions 198 × 71 × 71mm / 7.8" × 2.8" × 2.8"
Weight 0.42kg / 0.93lb
Material Metal
Adjustment Angle Pan 0°–360°, Tilt 0°–90°, Rotate 0°–360°
Protection IP67 Weather Rated

Installation Tip

For best image quality and recorder compatibility, confirm camera angle, 180° scene coverage, dewarping behavior, IR reflection, WDR, audio recording rules, PoE power, stream resolution, FPS, codec, ONVIF profile support, NDAA documentation, storage settings, and recorder compatibility during setup. If the recorder is a third-party model, test the main stream, sub stream, and dewarping display behavior before final installation.

Note: Specifications are subject to change without notice. NDAA status, features, MicroSD card support, audio functions, image performance, stream resolution, frame rate, codec support, dewarping behavior, wide-angle image display, IR distance, PoE behavior, ONVIF profile support, third-party recorder compatibility, smart detection behavior, and overall system performance may vary depending on firmware version, recorder model, ONVIF implementation, installation environment, lighting conditions, network setup, camera settings, stream profile, and system configuration. Please always double-check the manufacturer’s official specifications, NDAA documentation, and recorder compatibility before ordering.

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
