Uniview
Model: IPC2B15SS-ADF28K-I1
In stock
Pre-order — ships when inventory arrives. Contact us for the current lead time.
Apply for dealer pricing For approved dealers. Pricing and terms vary by product and quantity.

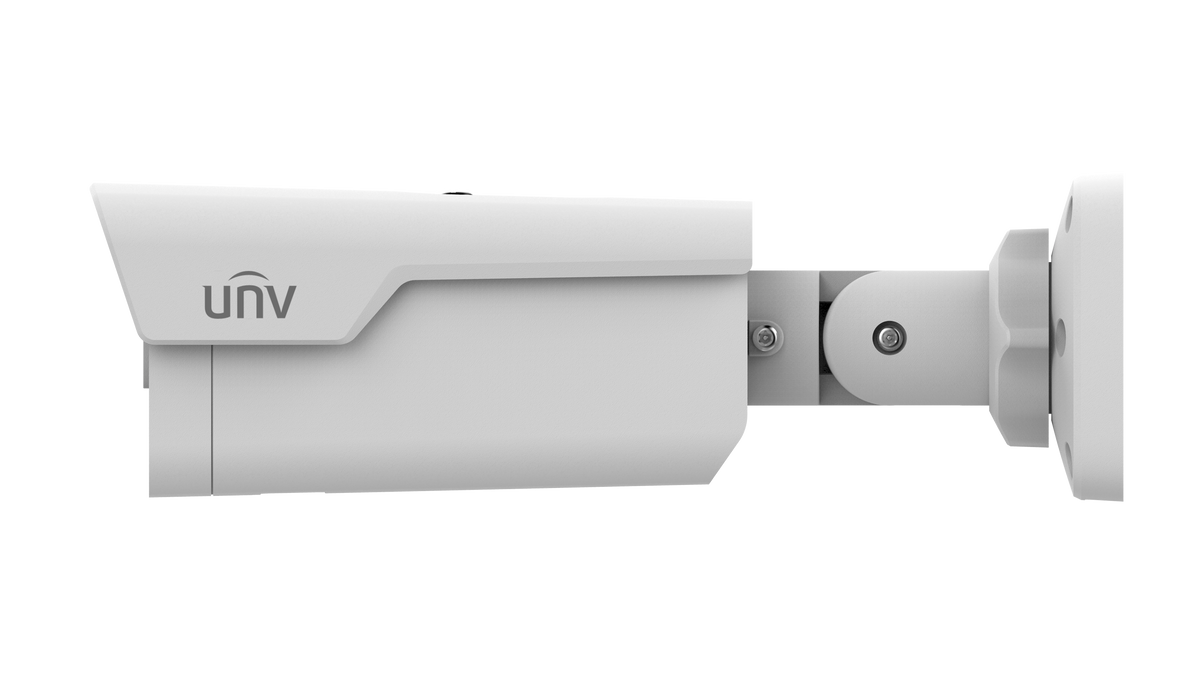

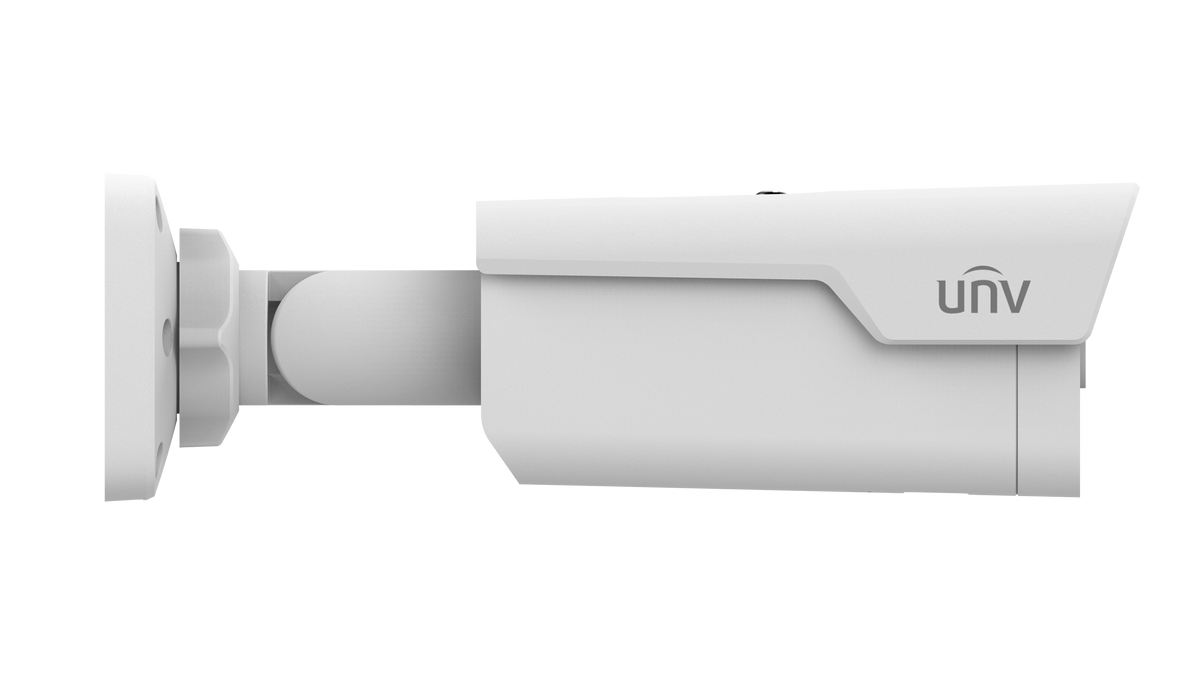

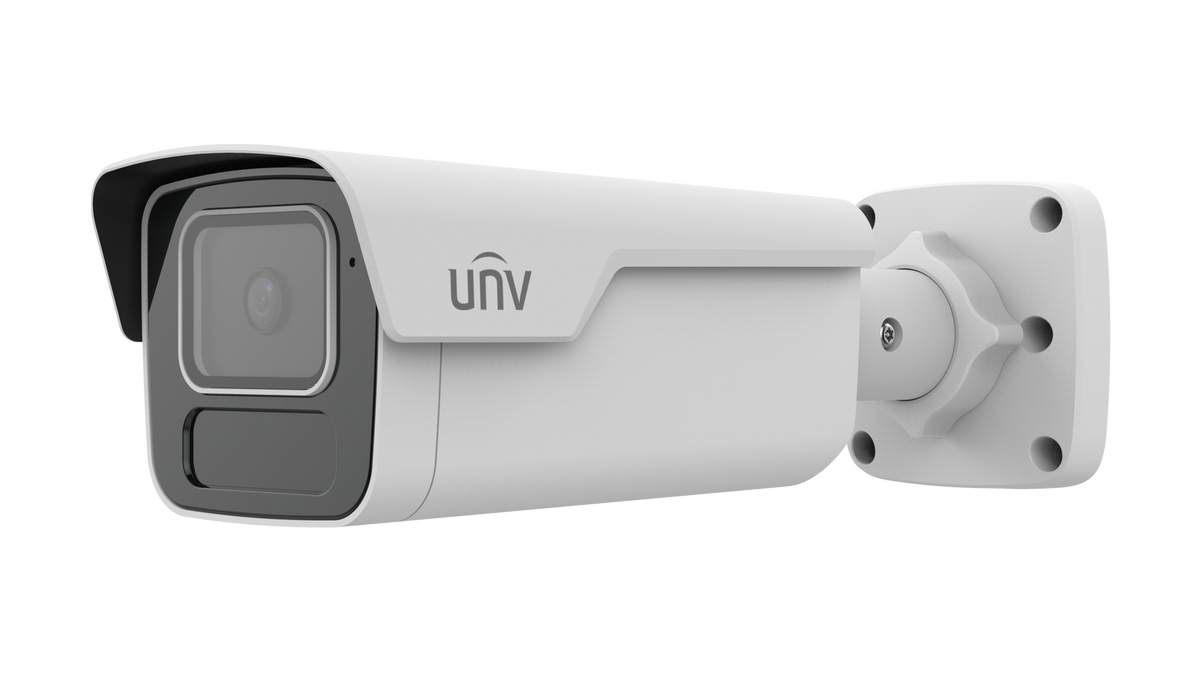

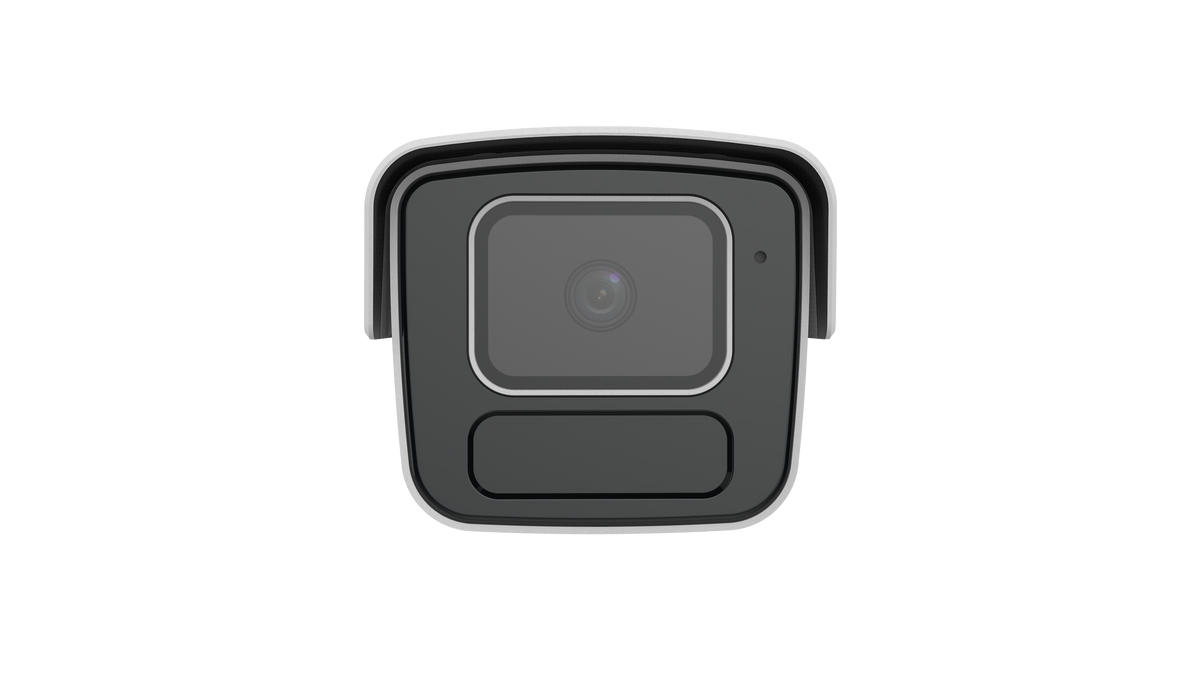

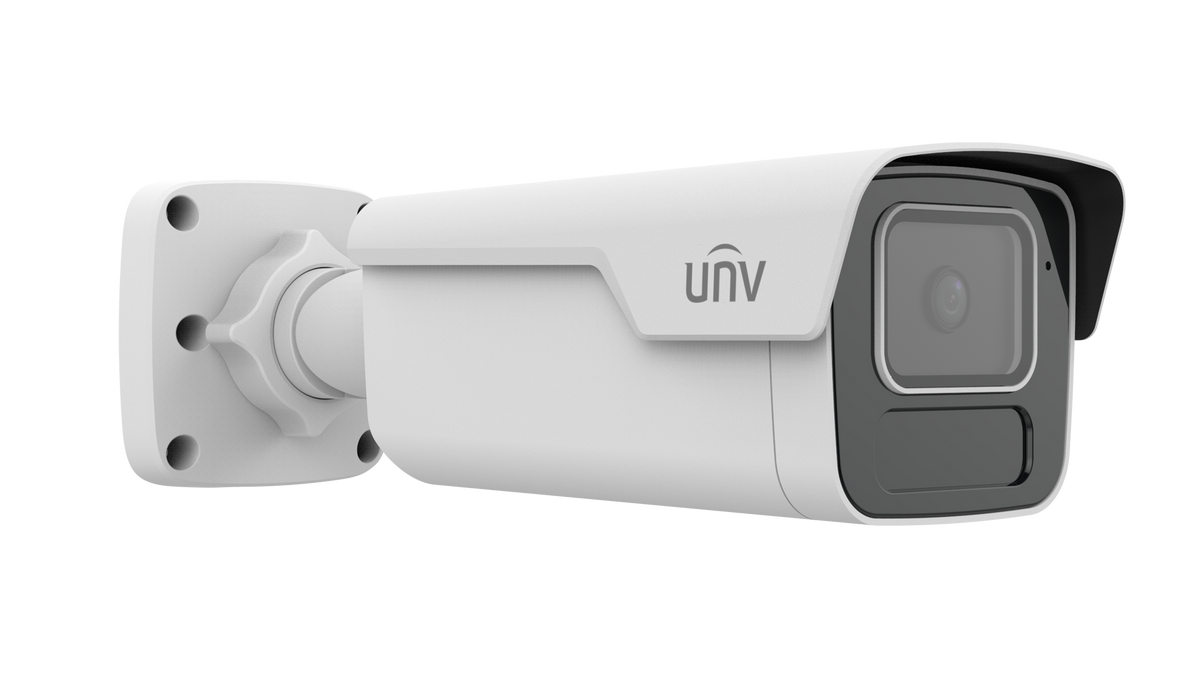

The UNV IPC2B15SS-ADF28K-I1 is a 5MP LightHunter bullet camera with a fixed 2.8mm lens. Its long-range infrared illumination and 130dB WDR support monitoring across changing light conditions.
This ADF28 model uses the 2.8mm lens. The 4mm option shown in series documentation is a separate lens variant, with a narrower field of view.
The IR rating describes illumination reach, not guaranteed identification distance. Check the recorded subject detail at the actual distance and adjust placement as needed.
| Model | IPC2B15SS-ADF28K-I1 |
| Camera Type | 5MP LightHunter Fixed IR Bullet Network Camera |
| Image Sensor | 1/2.7" 5MP Progressive Scan CMOS |
| Maximum Resolution | 2880 × 1620 |
| Maximum Frame Rate | Up to 30 fps at 2880 × 1620 |
| Lens Options | 2.8mm fixed lens (ADF28 model) |
| Lens Aperture | F1.6 |
| Horizontal Field of View | 110.0° with the 2.8mm lens |
| Minimum Illumination | Color: 0.002 Lux (F1.6, AGC On); 0 Lux with IR On |
| Low-Light Technology | LightHunter |
| Wide Dynamic Range | 130 dB True WDR |
| IR Distance | Up to 80m (262.5 ft) |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Intelligent Perimeter Protection | Cross Line, Intrusion, Enter Area, and Leave Area Detection |
| Target Classification | Human, Motor Vehicle, and Non-Motor Vehicle |
| People Analytics | People-Flow Counting and Crowd-Density Monitoring |
| Built-in Microphone | Yes |
| Audio I/O | 1 Audio Input / 1 Audio Output |
| Alarm I/O | 1 Alarm Input / 1 Alarm Output |
| Edge Storage | MicroSD Card Support, Up to 512GB |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet Port |
| Power Supply | 12V DC ±25% or PoE IEEE 802.3af |
| Maximum Power Consumption | 10W |
| Protection Rating | IP67 |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Dimensions | 269 × 96 × 82mm (10.6 × 3.8 × 3.2 in) |
| Weight | 0.84kg (1.85 lb) |
| Housing Material | Metal and Plastic |
Use the exact lens variant when selecting the camera. Confirm support for target-classified events and audio on the intended recorder.
Flexible deployment
View a compatible camera with UniEase. Local microSD recording is available on supported models.
Bring cameras together for centralized recording and viewing. Use UniEase for supported remote access.
Illustrative setup. Storage, network connections and app features depend on the camera, recorder and firmware. Internet access is required for remote viewing.
