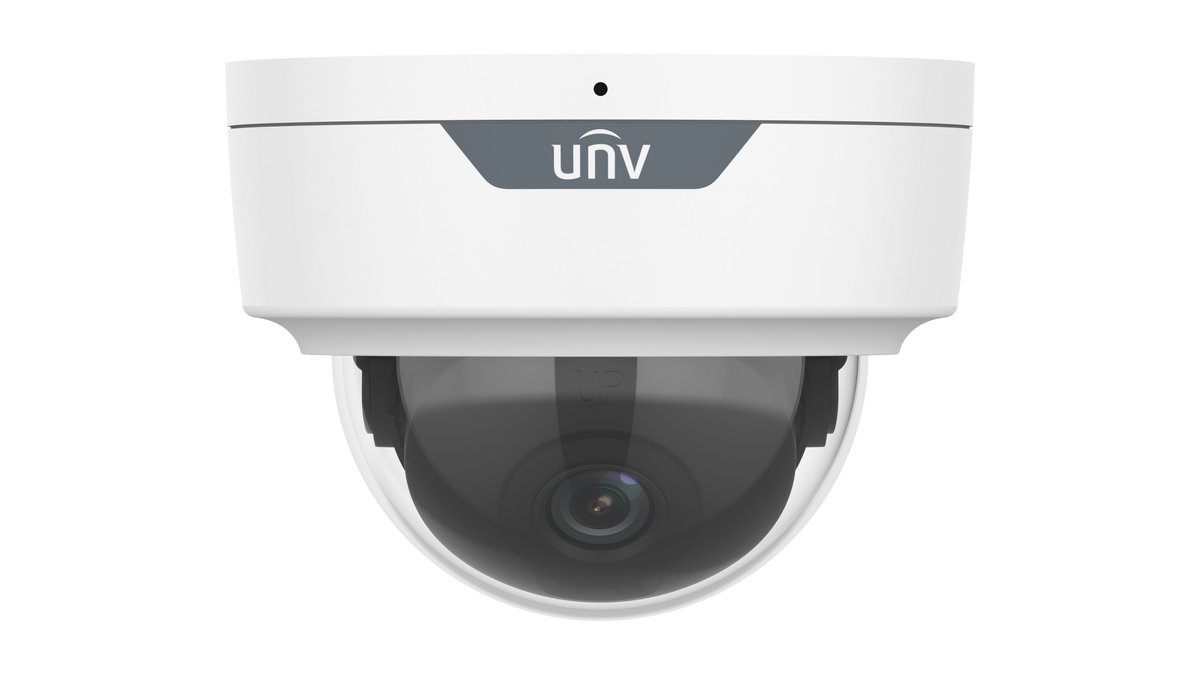

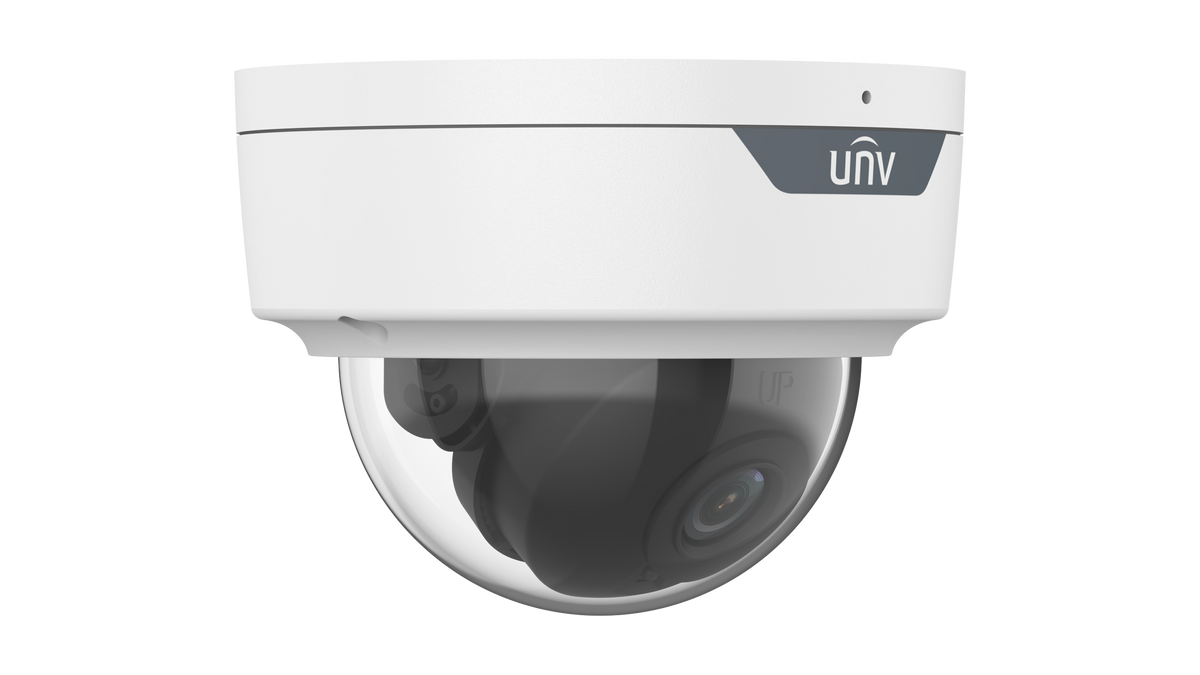

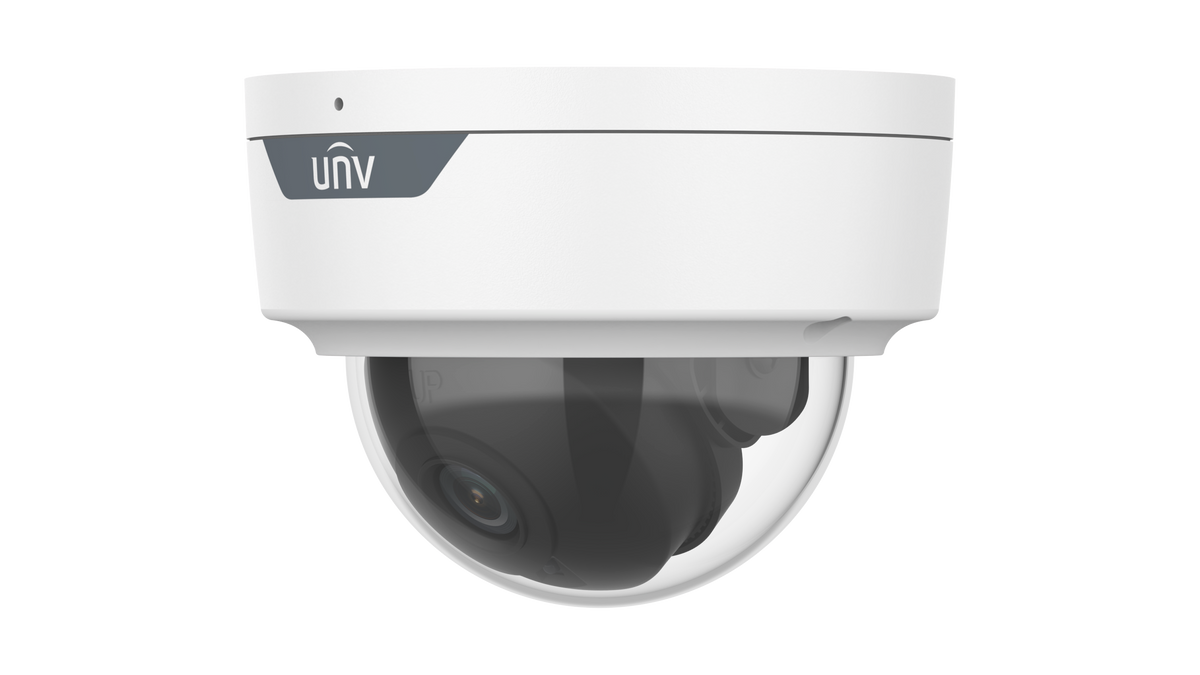

Uniview IPC325SS-ADF28K-I1 5MP LightHunter IR Fixed Dome Network Camera

The Uniview IPC325SS-ADF28K-I1 is a professional 5MP LightHunter fixed IR dome network camera designed for high-quality indoor and outdoor surveillance. Featuring a 1/2.7" CMOS sensor, a 2.8mm fixed lens, and LightHunter low-light technology, it delivers detailed video in challenging lighting environments.

The camera features 130 dB true WDR, Smart IR illumination up to 40m (131.2 ft), intelligent perimeter protection, target classification, people-flow counting, crowd-density monitoring, audio and alarm I/O, MicroSD edge storage, and durable IP67/IK10 protection. It is ideal for retail stores, offices, schools, warehouses, building entrances, and commercial security installations.

Key Features

  • 5MP LightHunter fixed IR dome network camera
  • 1/2.7" progressive scan CMOS image sensor
  • Maximum resolution of 2880 × 1620 at up to 30 fps
  • 2.8mm fixed lens with F1.6 aperture
  • LightHunter technology for enhanced low-light image quality
  • 130 dB true WDR for challenging lighting conditions
  • Smart IR illumination up to 40m (131.2 ft)
  • Intelligent perimeter protection
  • Human, motor vehicle, and non-motor vehicle classification
  • Cross-line, intrusion, enter-area, and leave-area detection
  • Intelligent people-flow counting and crowd-density monitoring
  • Smart intrusion prevention with color retrieval
  • Auto Scene Match (ASM) support in WDR mode
  • 1 audio input and 1 audio output
  • 1 alarm input and 1 alarm output
  • Ultra 265, H.265, H.264, and MJPEG compression
  • Supports 9:16 corridor mode
  • MicroSD card support up to 512GB
  • IP67 weatherproof and IK10 vandal-resistant protection
  • 12V DC and PoE IEEE 802.3af power options

Specifications

Model IPC325SS-ADF28K-I1
Camera Type 5MP LightHunter Fixed IR Dome Network Camera
Image Sensor 1/2.7" 5MP Progressive Scan CMOS
Maximum Resolution 2880 × 1620
Maximum Frame Rate Up to 30 fps at 2880 × 1620
Lens 2.8mm Fixed Lens, F1.6
Field of View Horizontal: 110.0°; Vertical: 58.7°; Diagonal: 130.0°
Minimum Illumination Color: 0.002 Lux (F1.6, AGC On); 0 Lux with IR On
Low-Light Technology LightHunter
Wide Dynamic Range 130 dB True WDR
IR Distance Up to 40m (131.2 ft)
Video Compression Ultra 265, H.265, H.264, MJPEG
Smart Detection Cross Line, Intrusion, Enter Area, and Leave Area Detection
Target Classification Human, Motor Vehicle, and Non-Motor Vehicle
People Analytics People-Flow Counting and Crowd-Density Monitoring
Audio I/O 1 Audio Input / 1 Audio Output
Alarm I/O 1 Alarm Input / 1 Alarm Output
Edge Storage MicroSD Card Support, Up to 512GB
Network Interface 1 × RJ45 10/100 Mbps Ethernet Port
Power Supply 12V DC ±25% or PoE IEEE 802.3af
Protection Rating IP67 / IK10

Ideal Applications

  • Retail stores and shopping centers
  • Office buildings and commercial entrances
  • Schools and educational facilities
  • Warehouses and industrial locations
  • Hotels and apartment buildings
  • Indoor and outdoor commercial surveillance
  • Areas requiring people counting and crowd monitoring

```

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
