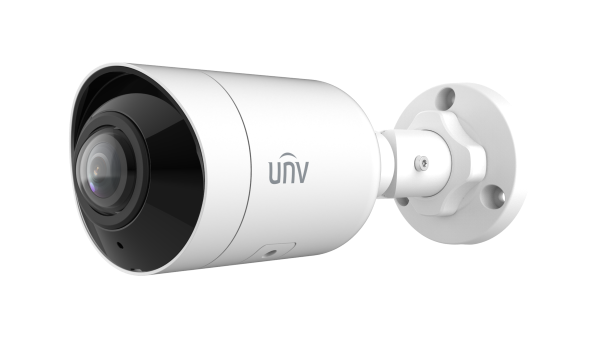

Uniview IPC2105SB-ADF16KM-I0 5MP OmniView 180° Wide-Angle IR Bullet Network Camera

The Uniview IPC2105SB-ADF16KM-I0 is a professional 5MP OmniView panoramic bullet camera engineered to provide an ultra-wide 180° horizontal field of view using a single camera. Its 1.68mm fixed lens significantly reduces blind spots, making it ideal for entrances, parking lots, warehouses, retail storefronts, schools, and other large open areas.

Powered by Uniview's OmniView panoramic technology, the camera supports built-in dewarping (Levels 1–9) for multiple viewing modes, allowing users to display panoramic images naturally on NVRs and VMS platforms. Combined with 120 dB True WDR, Smart IR illumination up to 20m, intelligent perimeter protection, and a built-in microphone, it delivers outstanding image quality day and night.

Key Features

  • 5MP OmniView panoramic fixed IR bullet network camera
  • 1/2.7" progressive scan CMOS sensor
  • Ultra-wide 1.68mm fixed lens
  • 180° horizontal panoramic viewing angle
  • Maximum resolution of 2880 × 1620 at 30fps
  • Built-in dewarping with adjustable Levels 1–9
  • 120 dB True WDR
  • Smart IR illumination up to 20m (65.6 ft)
  • Built-in microphone
  • Ultra 265, H.265, H.264 and MJPEG compression
  • Smart intrusion prevention
  • Human, motor vehicle and non-motor vehicle classification
  • Cross Line, Intrusion, Enter Area and Leave Area Detection
  • MicroSD card support up to 512GB
  • 12V DC or PoE (IEEE 802.3af)
  • IP67 weatherproof housing
  • 3-axis adjustable mounting

Specifications

Model IPC2105SB-ADF16KM-I0
Camera Type 5MP OmniView Fixed IR Bullet Network Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Maximum Resolution 2880 × 1620
Frame Rate Up to 30fps
Lens 1.68mm Fixed Lens
Lens Aperture F2.0
Horizontal Field of View 180°
Vertical Field of View 100°
Diagonal Field of View 180°
Minimum Illumination 0.01 Lux (Color), 0 Lux with IR
Wide Dynamic Range 120 dB True WDR
IR Distance Up to 20m (65.6 ft)
Dewarping Supported (Levels 1–9)
Video Compression Ultra 265, H.265, H.264, MJPEG
Smart Analytics Cross Line, Intrusion, Enter Area, Leave Area
AI Classification Human, Motor Vehicle, Non-Motor Vehicle
Built-in Microphone Yes
Storage MicroSD Card up to 512GB
Network 1 × RJ45 10/100 Mbps Ethernet
Power 12V DC ±25% / PoE IEEE 802.3af
Protection Rating IP67
Mount Adjustment 3-Axis

Compatible Mounting Accessories

  • TR-JB05-B-IN Bullet Junction Box
  • TR-UP06-C-IN-V2 Pole Mount Bracket
  • TR-UC08-C-V2 Corner Mount Bracket
  • TR-A01-IN Waterproof Cable Gland

Ideal Applications

  • Retail storefronts
  • Building entrances
  • Warehouses
  • School hallways
  • Parking lot entrances
  • Office lobbies
  • Loading docks
  • Large indoor and outdoor open areas

```

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
