NDAA Compliant 2×4MP Dual-Channel Non-Splicing MultiView Dome Camera

UNV IPC3224SS-ADF28K-I1 2×4MP Dual-Channel Non-Splicing MultiView IR Dome Network Camera

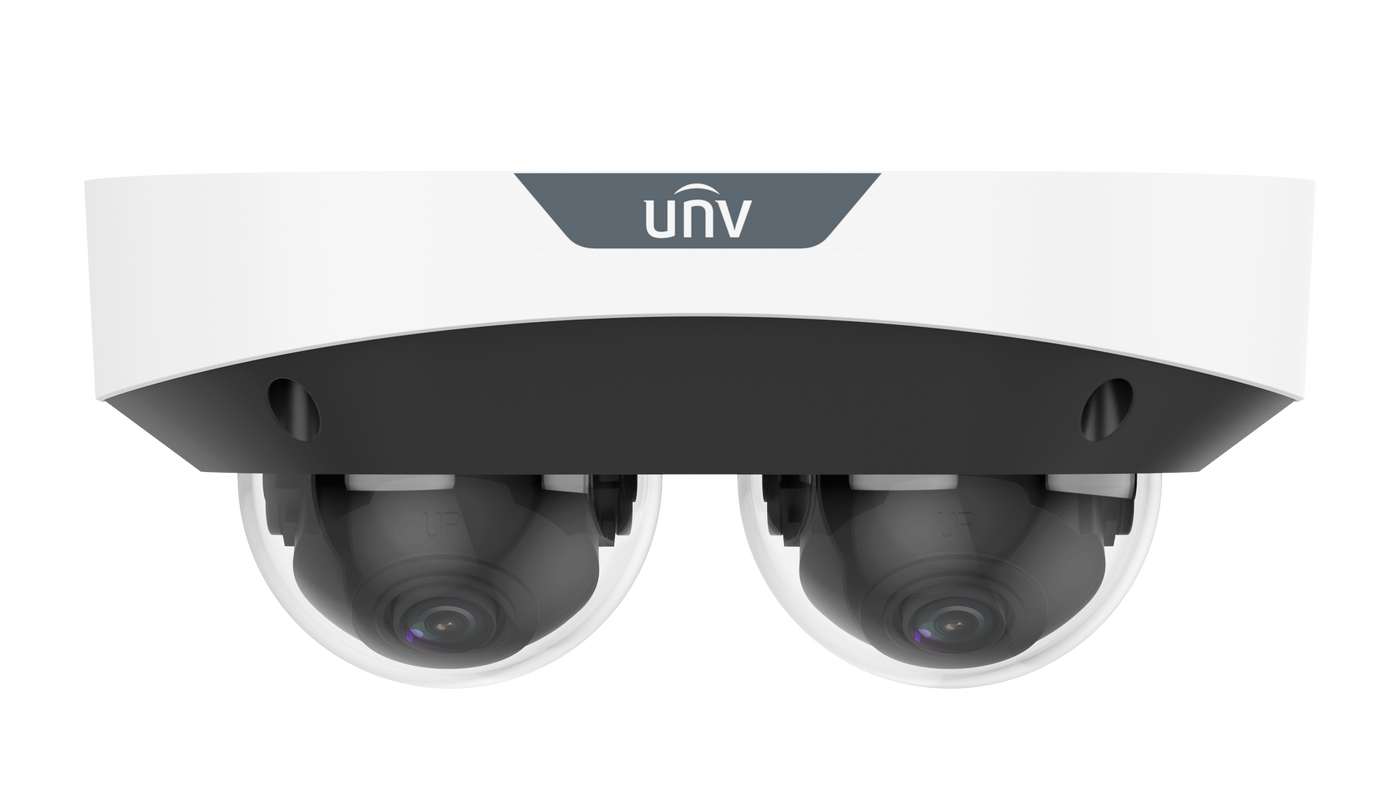

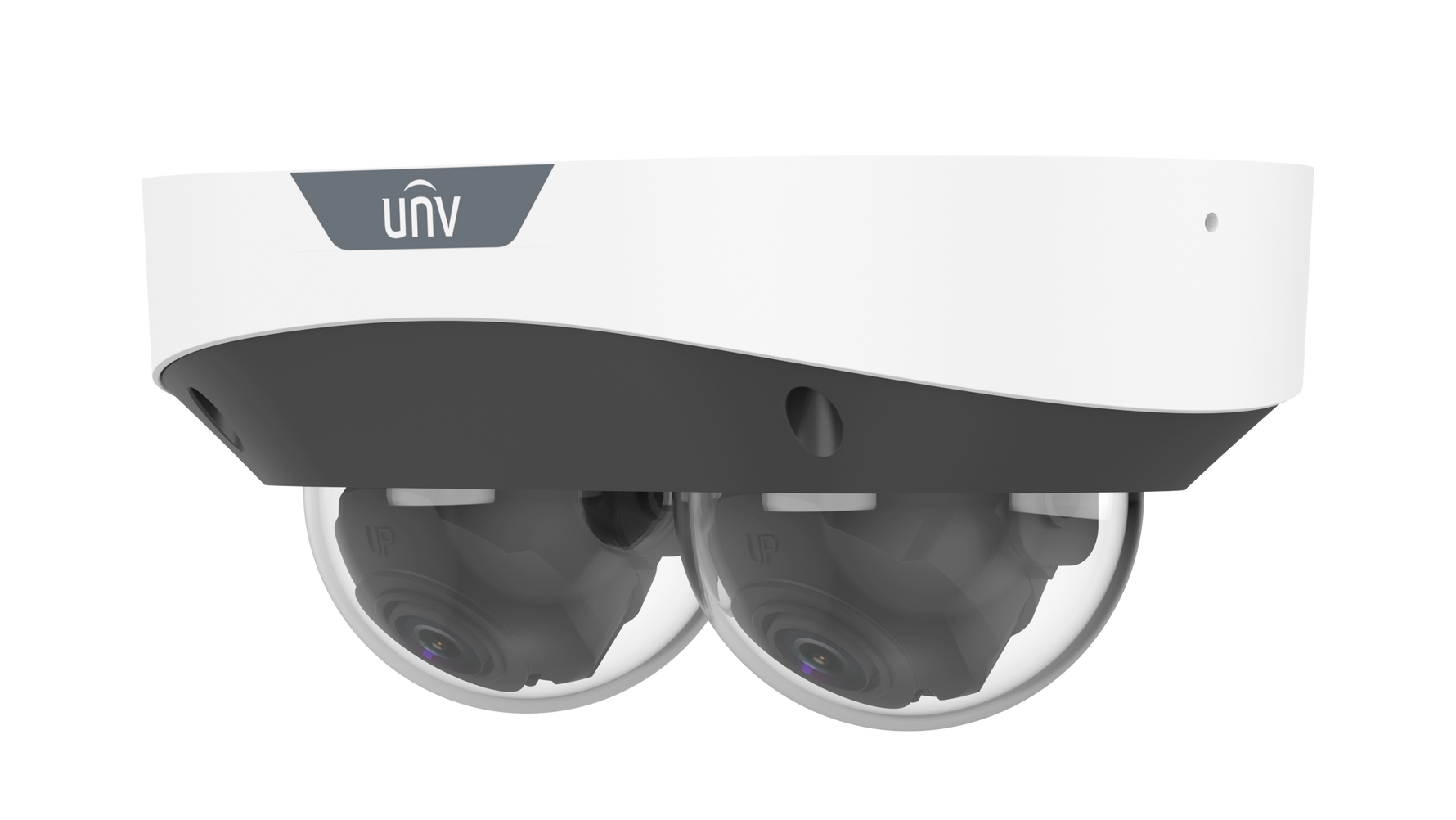

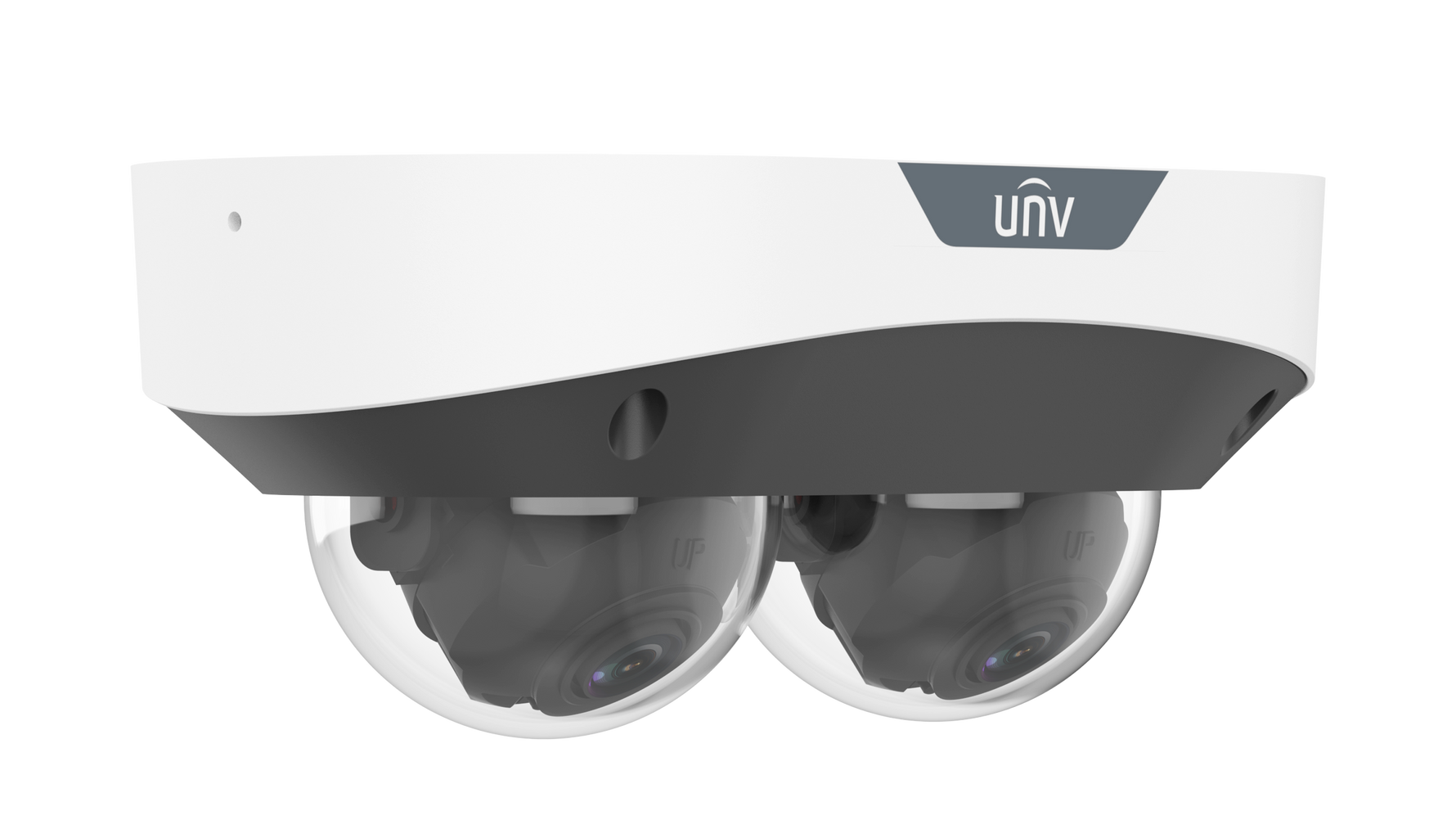

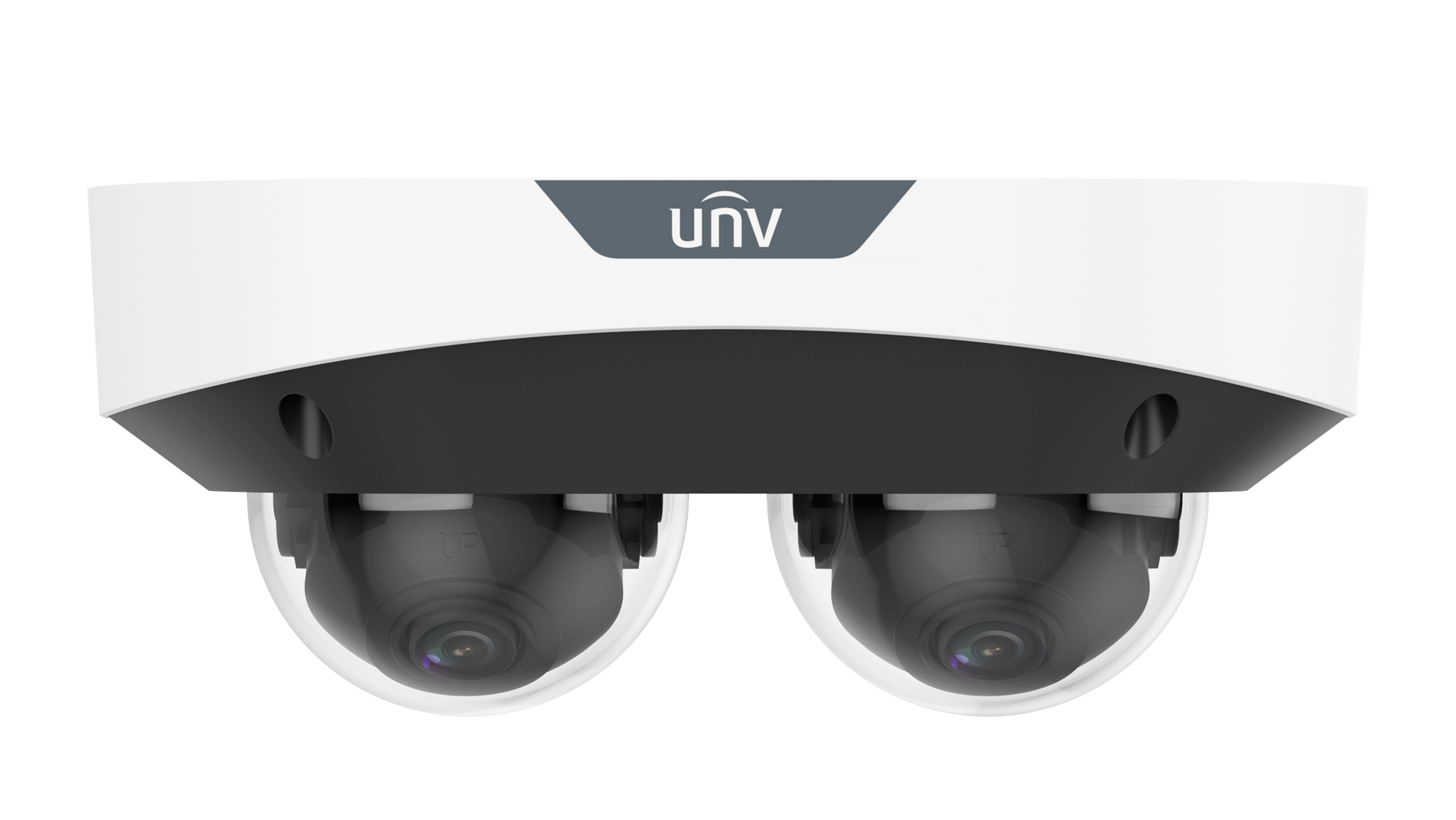

The UNV IPC3224SS-ADF28K-I1 is a 2×4MP NDAA-compliant dual-lens dome IP camera designed to provide two independent 4MP views through one IP address. With dual channels, 130dB true WDR, Smart IR, built-in dual microphones, intelligent perimeter protection, MicroSD card support, PoE power, ONVIF integration support, IP67 weather protection, and IK10 vandal resistance, this camera is a strong choice for wide-area commercial surveillance where two viewing angles are needed from one camera location.

2×4MP
Dual Channel
NDAA
Compliant
Single IP
Dual Channels
130dB
True WDR
IP67 / IK10
Outdoor / Vandal

Two Independent Views from One Camera Location

The IPC3224SS-ADF28K-I1 is designed for installations where one camera location needs to cover two directions. Each channel can be aimed independently, making it useful for corners, hallways, entrances, warehouse aisles, parking areas, storefronts, and commercial properties that need more coverage without installing two separate cameras.

Key Features

📷

2×4MP Dual Channel

Provides two independent 4MP camera views from one physical camera housing.

🛡️

NDAA Compliant

Suitable for projects requiring NDAA-compliant security equipment when verified with current manufacturer documentation.

🔀

Single IP with Dual Channels

Uses one IP address while providing two camera channels for compatible recorders and VMS platforms.

🎯

Intelligent Detection

Supports intelligent perimeter protection with human, vehicle, and non-motor vehicle classification.

🔆

130dB True WDR

Helps balance bright and dark areas for clearer images in strong backlight scenes.

🔦

Smart IR Night Vision

IR illumination supports night visibility up to 30m / 98.4ft depending on scene conditions.

🎙️

Built-In Dual Microphones

Built-in dual microphones support audio recording when used with compatible recorder, settings, and local regulations.

🔗

ONVIF Integration Support

Supports third-party integration through ONVIF profiles, depending on recorder compatibility and firmware support.

🌧️

IP67 / IK10 Protection

Weather-rated and vandal-resistant metal housing supports tough indoor and outdoor installations.

Feature Overview

✓ NDAA compliant / NDAA supported security camera
✓ 2×4MP dual-channel non-splicing MultiView dome camera
✓ Single IP with dual channels
✓ Two independently adjustable camera channels
✓ 1/3.0" CMOS image sensor per channel
✓ 2.8mm fixed lens per channel
✓ 97.68° horizontal field of view per channel
✓ 130dB true WDR
✓ Smart IR up to 30m / 98.4ft
✓ Ultra 265 / H.265 / H.264 / MJPEG
✓ Triple stream support
✓ Intelligent perimeter protection on both channels
✓ People flow counting and crowd density monitoring on channel 1
✓ Third-party recorder integration flexibility
✓ ONVIF Profile S / G / T / M, API, and SDK support
✓ Built-in dual microphones
✓ Audio I/O 1/1 and alarm I/O 1/1
✓ MicroSD card support up to 512GB
✓ DC 12V and PoE power support
✓ IP67 weather protection and IK10 vandal resistance

Best Applications

Building Corners
Hallways
Warehouse Aisles
Storefronts
Parking Areas
Public-Sector Projects

Product Highlights

The IPC3224SS-ADF28K-I1 uses dual channels through one IP address. This is very important for third-party recorder integration because some non-UNV recorders may not properly support dual-channel camera behavior, full resolution, full frame rate, codec, audio, alarm I/O, smart event features, ONVIF profile, or stream profile. If a third-party recorder cannot display or record both channels properly, the camera or recorder may need to be adjusted to a lower supported resolution, FPS, compression format, stream setting, or channel configuration.

Model IPC3224SS-ADF28K-I1
Camera Type 2×4MP Dual-Channel Non-Splicing MultiView IR Fixed Dome Network Camera
NDAA Compliance NDAA compliant / NDAA supported. Please verify current manufacturer documentation before ordering for government, public-sector, or compliance-sensitive projects.
Dual Channel Design Single IP address with dual channels
Channel 1: 4MP fixed dome view
Channel 2: 4MP fixed dome view
Image Sensor 1/3.0" CMOS per channel
Resolution 2 × 4MP
Main Stream 4MP 2688 × 1520, max 25fps
4MP 2560 × 1440, max 25fps
3MP 2304 × 1296, max 30fps
1080P 1920 × 1080, max 30fps
720P 1280 × 720, max 30fps
Sub Stream 720P 1280 × 720, max 30fps
D1 720 × 576, max 30fps
640 × 360, max 30fps
2CIF 704 × 288, max 30fps
CIF 352 × 288, max 30fps
Third Stream D1 720 × 576, max 30fps
640 × 360, max 30fps
2CIF 704 × 288, max 30fps
CIF 352 × 288, max 30fps
Third-Party Recorder Integration Third-party recorder compatibility is commonly affected by ONVIF profile support, firmware version, dual-channel camera handling, codec support, camera resolution, frame rate, audio support, alarm I/O support, smart event behavior, and stream profile settings. Some third-party recorders may only add one channel, may not support all smart features, or may require stream resolution/FPS to be lowered for stable recording and playback.
Compatible Integration API, SDK, ONVIF Profile S / Profile G / Profile T / Profile M
Video Compression Ultra 265 / H.265 / H.264 / MJPEG
Video Bit Rate 128 Kbps to 16 Mbps
Video Stream Triple Streams
Minimum Illumination Color: 0.002 Lux, 0 Lux with IR on
Wide Dynamic Range 130dB True WDR
Lens 2.8mm Fixed Lens, F1.6 per channel
Field of View Horizontal 97.68°
Vertical 52.67°
Diagonal 102.52°
DORI Distance Detect: 63.0m / 206.7ft
Observe: 25.2m / 82.7ft
Recognize: 12.6m / 41.3ft
Identify: 6.3m / 20.7ft
IR Distance Smart IR up to 30m / 98.4ft
Audio Built-In Dual Microphones; Audio I/O 1 Input / 1 Output
Alarm I/O Alarm Input 1 / Alarm Output 1
Smart / Event Features Intelligent Perimeter Protection, Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection, Human / Vehicle / Non-Motor Vehicle Classification, People Flow Counting and Crowd Density Monitoring on Channel 1, Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
Storage MicroSD Card Support up to 512GB; ANR; NAS (NFS)
Network 1 × RJ45 10M/100M Base-TX Ethernet
Power DC 12V ±25% / PoE IEEE 802.3af, max 9.1W
Dimensions 176mm × 104mm × 72mm / 6.9" × 4.1" × 2.8"
Weight 0.62kg / 1.37lb
Material Metal
Adjustment Angle Pan 0°–180°, Tilt 0°–66°, Rotate 0°–346°
Protection IP67 Weather Rated; IK10 Vandal Resistant

Installation Tip

For best performance and recorder compatibility, confirm camera angle for both channels, IR reflection, WDR, audio recording rules, alarm I/O requirements, PoE power, stream resolution, FPS, codec, ONVIF profile support, dual-channel support, NDAA documentation, storage settings, and recorder compatibility during setup. If the recorder is a third-party model, test both channels, main stream, sub stream, third stream, audio, alarm I/O, and smart event behavior before final installation.

Note: Specifications are subject to change without notice. NDAA status, features, MicroSD card support, dual-channel behavior, audio functions, alarm I/O behavior, image performance, stream resolution, frame rate, codec support, IR distance, PoE behavior, ONVIF profile support, third-party recorder compatibility, smart detection behavior, people counting behavior, and overall system performance may vary depending on firmware version, recorder model, ONVIF implementation, installation environment, lighting conditions, network setup, camera settings, stream profile, and system configuration. Please always double-check the manufacturer’s official specifications, NDAA documentation, and recorder compatibility before ordering.
