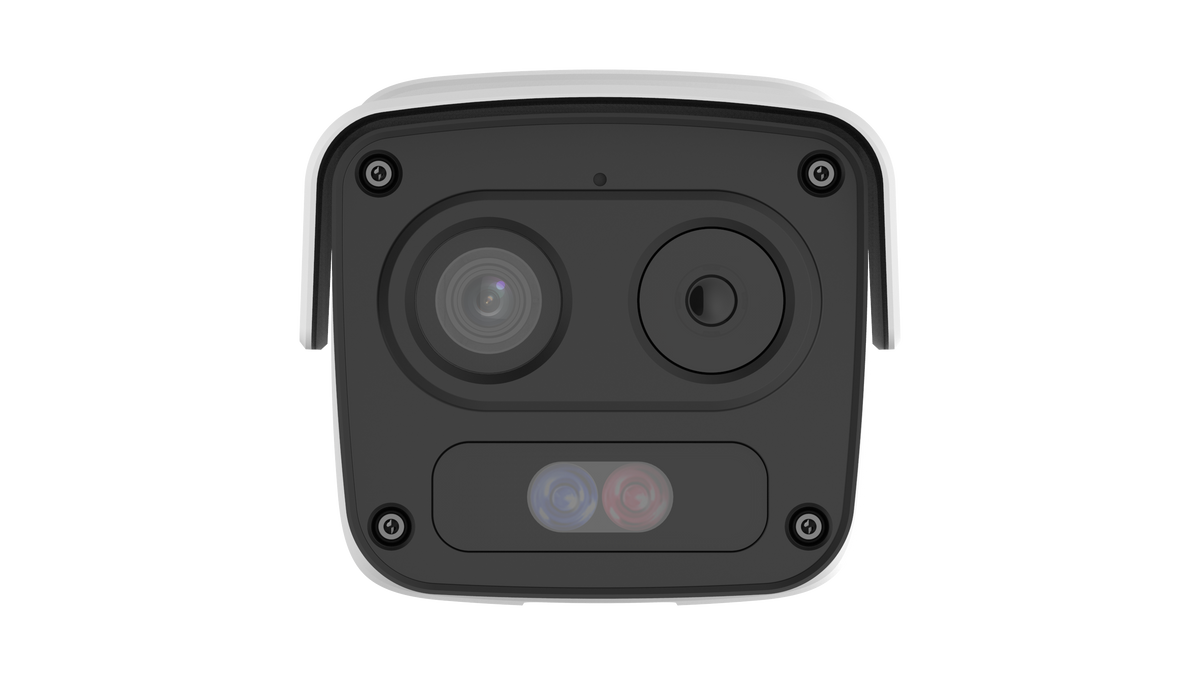

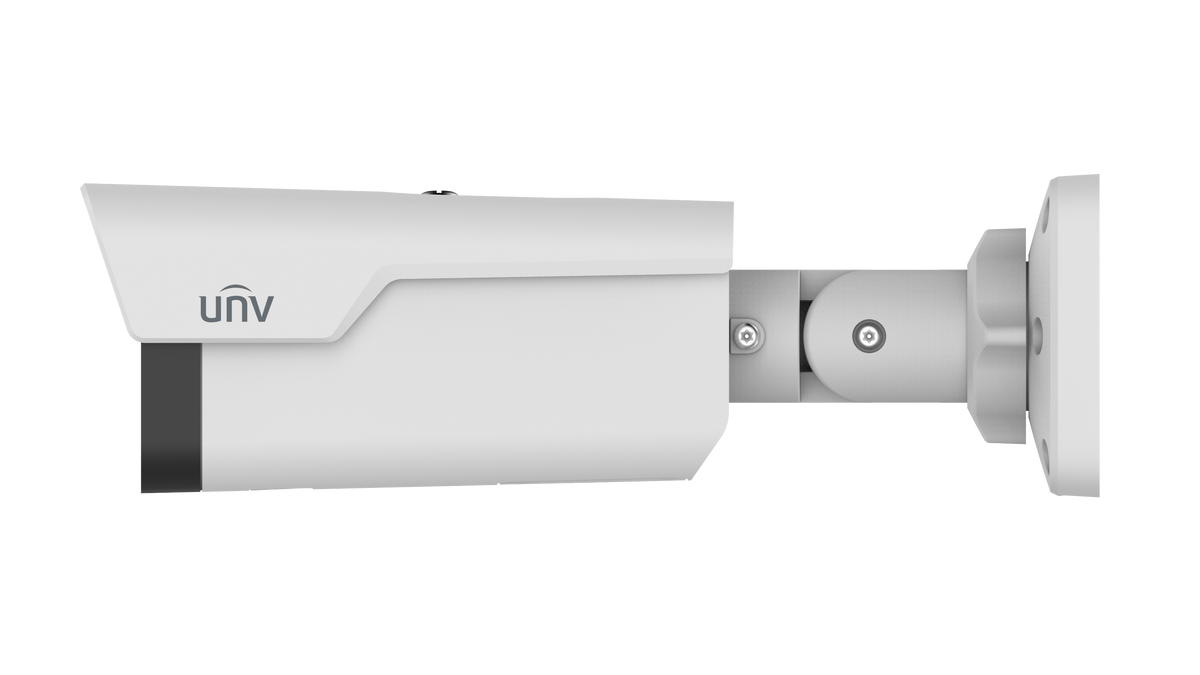

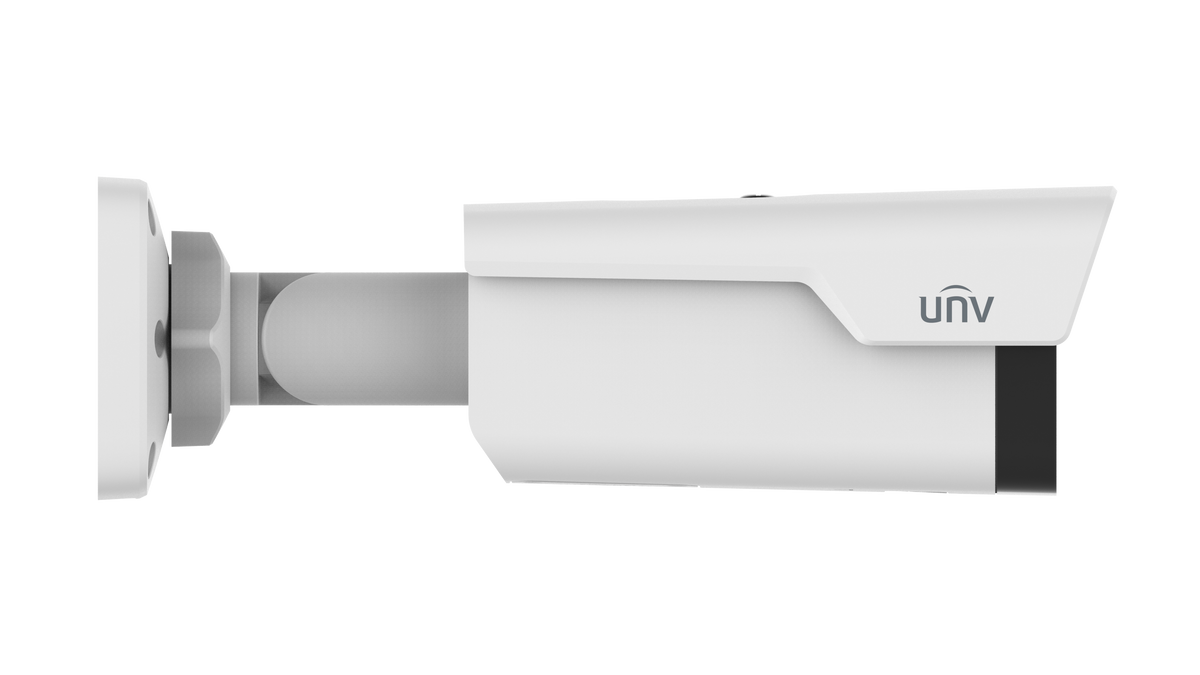

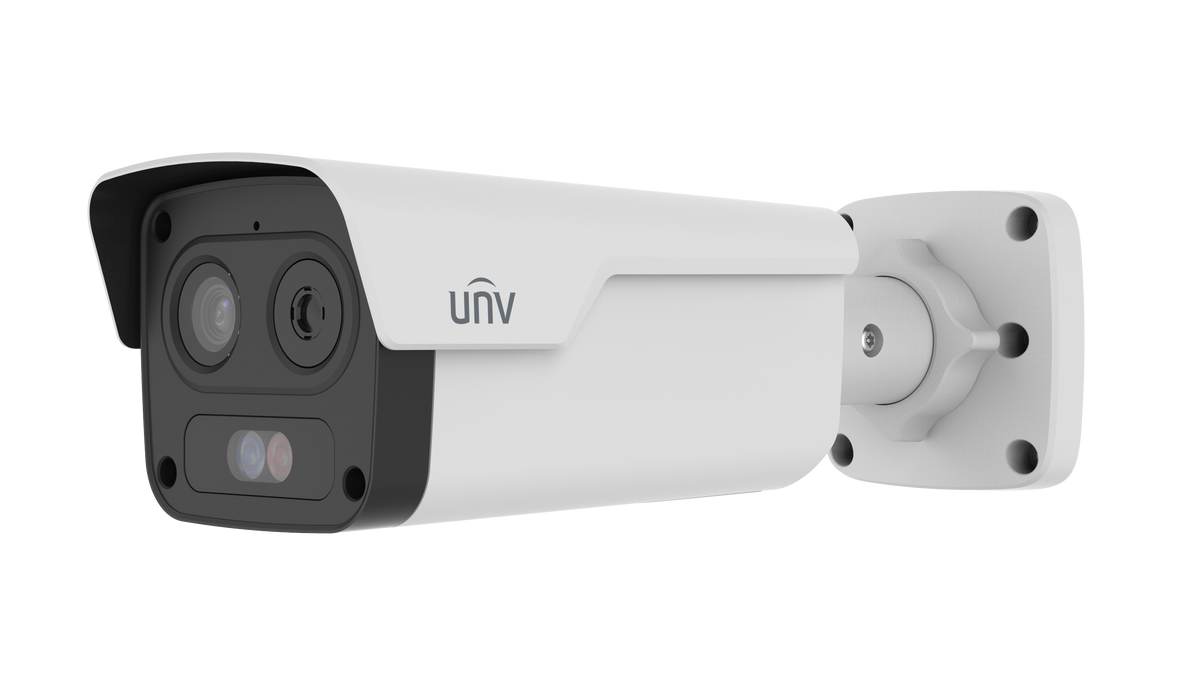

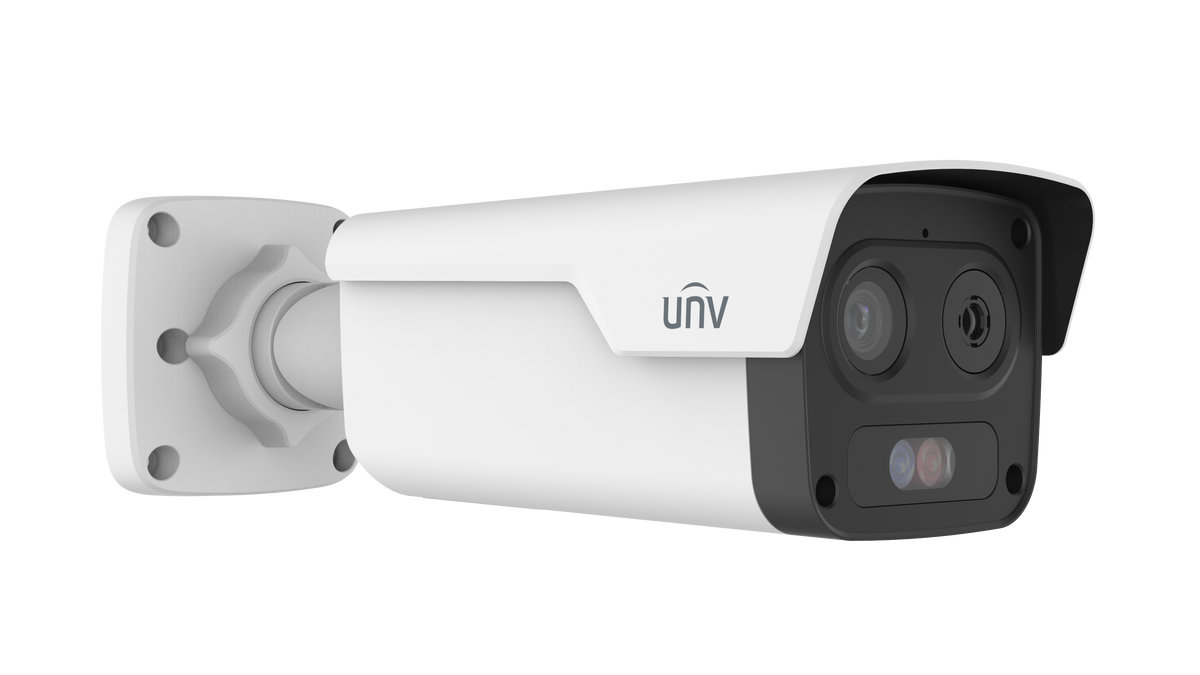

Uniview TIC2A32SA-F7-4F6AC-I1 4MP Thermal & Optical Dual-Spectrum Bullet Network Camera

The Uniview TIC2A32SA-F7-4F6AC-I1 is a professional dual-spectrum bullet network camera that combines a 4MP optical camera with a thermal imaging module. Designed for perimeter protection, fire detection, temperature monitoring, and all-weather surveillance, it delivers thermal and visible-light video through a single IP address.

The camera features a 6mm optical lens, a 7mm thermal lens, intelligent intrusion prevention, temperature detection, hot- and cold-spot tracking, thermal fire detection, and optical smoke recognition. Built-in red and blue warning lights, audio support, PoE power, and IP67 weather protection make it suitable for demanding commercial and industrial security applications.

Key Features

  • Thermal and optical dual-spectrum bullet network camera
  • 4MP optical camera with up to 2688 × 1520 resolution
  • 256 × 192 thermal sensor with up to 960P video output
  • 6mm fixed optical lens and 7mm fixed thermal lens
  • Built-in IR illumination with up to 50m (164 ft) range
  • Thermal fire detection and configurable fire-shield areas
  • Temperature detection with hot- and cold-spot tracking
  • Smart intrusion prevention with line-crossing and area detection
  • Supports human and vehicle classification
  • Optical smoke recognition for fire alarm verification
  • Picture-in-picture viewing for thermal and optical video
  • Built-in red and blue warning lights
  • Audio input and output support
  • Ultra 265, H.265, H.264, and MJPEG compression
  • MicroSD edge storage support up to 512GB
  • 2 alarm inputs and 2 alarm outputs
  • 12V DC or PoE IEEE 802.3af power
  • IP67 weatherproof protection
  • NDAA compliant

Specifications

Model TIC2A32SA-F7-4F6AC-I1
Camera Type Thermal & Optical Dual-Spectrum Bullet Network Camera
Optical Resolution 4MP, Up to 2688 × 1520 at 30 fps
Optical Sensor 1/2.8" CMOS
Optical Lens 6mm Fixed Lens
Thermal Resolution 960P Video Output; 256 × 192 Thermal Sensor
Thermal Sensor Vanadium Oxide Uncooled Focal Plane Array
Thermal Lens 7mm Fixed Lens
IR Distance Up to 50m (164 ft)
Smart Detection Cross Line, Intrusion, Enter Area, and Leave Area Detection
Temperature Functions Temperature Detection and Hot/Cold Spot Tracking
Fire Detection Thermal Fire Detection and Fire-Shield Area Support
Video Compression Ultra 265, H.265, H.264, MJPEG
Audio 1 Audio Input / 1 Audio Output
Warning Light Built-in Red and Blue Warning Lights
Alarm I/O 2 Inputs / 2 Outputs
Edge Storage MicroSD Card Support, Up to 512GB
Network Interface 1 × 10/100 Mbps RJ45 Ethernet Port
Power Supply 12V DC or PoE IEEE 802.3af
Maximum Power Consumption 12W
Protection Rating IP67
Operating Temperature -40°C to 70°C (-40°F to 158°F)
Dimensions 269.1 × 95.7 × 85.4 mm (10.6 × 3.75 × 3.36 in)
Weight 0.93 kg (2.1 lb)

Ideal Applications

  • Industrial facilities and warehouses
  • Critical infrastructure and utility sites
  • Perimeter and restricted-area security
  • Fire detection and temperature monitoring
  • Electrical equipment and high-risk facilities
  • Outdoor commercial and municipal surveillance
  • All-weather thermal security applications

```

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
