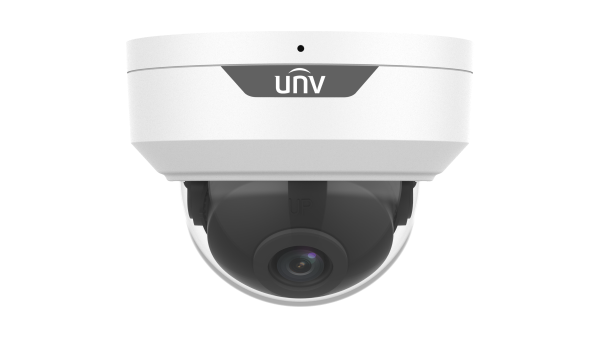

Uniview IPC324SR-ADF28KM-H 4MP HD Easystar WDR IR Mini Dome Network Camera

The Uniview IPC324SR-ADF28KM-H is a 4MP vandal-resistant fixed mini dome network camera designed for reliable indoor and outdoor surveillance. It features Easystar low-light technology, 120 dB true WDR, Smart IR illumination, a built-in microphone, and intelligent human-based intrusion detection.

With a 2.8mm fixed lens, 30m (98.4 ft) IR range, IP67 weather protection, and IK10 vandal resistance, this camera is well suited for offices, retail stores, schools, warehouses, building entrances, and other commercial security applications.

Key Features

  • 4MP high-definition fixed mini dome network camera
  • 1/3.0" progressive scan CMOS image sensor
  • 2.8mm fixed lens with a 97° horizontal field of view
  • Up to 2688 × 1520 resolution at 30 fps
  • Easystar technology for improved low-light image quality
  • 120 dB true WDR for challenging lighting conditions
  • Smart IR illumination up to 30m (98.4 ft)
  • Built-in microphone for audio monitoring
  • Human-body-based line crossing and intrusion detection
  • Supports motion, ultra motion, tampering, and audio detection
  • Ultra 265, H.265, H.264, and MJPEG compression
  • MicroSD edge storage support up to 512GB
  • Supports 9:16 corridor mode
  • IP67 weatherproof and IK10 vandal-resistant protection
  • PoE IEEE 802.3af and 12V DC power options
  • 3-axis mechanical adjustment for flexible installation

Specifications

Model IPC324SR-ADF28KM-H
Camera Type 4MP HD Easystar WDR Fixed IR Mini Dome Network Camera
Image Sensor 1/3.0" CMOS
Maximum Resolution 2688 × 1520
Maximum Frame Rate Up to 30 fps at 2688 × 1520
Lens 2.8mm Fixed Lens, F1.6
Field of View Horizontal: 97.0°; Vertical: 52.2°; Diagonal: 107.5°
Minimum Illumination Color: 0.003 Lux (F1.6, AGC On); 0 Lux with IR On
Wide Dynamic Range 120 dB True WDR
IR Distance Up to 30m (98.4 ft)
Video Compression Ultra 265, H.265, H.264, MJPEG
Intelligent Detection Human-Based Line Crossing and Intrusion Detection
Additional Events Motion, Ultra Motion, Tampering, and Audio Detection
Built-in Microphone Yes
Edge Storage MicroSD Card Support, Up to 512GB
Network Interface 1 × RJ45 10/100 Mbps Ethernet Port
Power Supply 12V DC ±25% or PoE IEEE 802.3af
Maximum Power Consumption 4.4W
Protection Rating IP67 / IK10
Operating Temperature -30°C to 60°C (-22°F to 140°F)
Dimensions Ø111 × 83 mm (Ø4.4 × 3.3 in)
Weight 0.35 kg (0.77 lb)
Housing Material Metal

Ideal Applications

  • Retail stores and shopping centers
  • Office buildings and business entrances
  • Schools and educational facilities
  • Warehouses and industrial locations
  • Hotels and apartment buildings
  • Indoor and outdoor commercial surveillance

```

Important product information: Specifications are subject to change without notice. Features, storage support, audio functions, image performance, PoE behavior, compatibility and overall system performance may vary depending on firmware, recorder model, installation environment, network setup and system configuration. NVRs do not include hard drives unless explicitly stated.
